QorIQ® Qonverge BSC9132双核处理器和双核DSP

BSC9132
停产

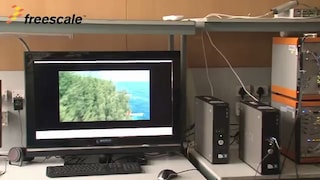

HD Video Streaming Over LTE Demonstration

点击播放视频

BSC9132处理器是一款高度集成的器件，适用于小型移动通信基站、企业VoIP、智能电网控制、军事/国防和工业领域的应用。BSC9132器件将两个e500内核、基于Power Architecture®的技术、两个StarCore® SC3850内核与MAPLE-B2P带宽加速处理元件相结合，可满足高性能、低成本、集成解决方案的需求，借助配套的高性能通用处理层，可支持丰富的专业DSP功能。

对于小型小区应用，BSC9132支持20 MHz LTE TDD或FDD，以及WCDMA 5 MHz多模运行。

产品详情

框图

BSC9132 BD

QoriQ Qonverge BSC9132 Processor
获取框图PDF

特征

  • Power Architecture子系统包括两个e500处理器，带512KB共享L2缓存
  • 两个StarCore® SC3850 DSP子系统，每个子系统具备512KB专用L2缓存
  • MAPLE-B2P多重加速器平台引擎所支持的功能可满足LTE-FDD/TDD、WiMAX、WCDMA/HSPA+无线标准，还支持包括FFT、DFT和Turbo Viterbi编码在内的常用DSP功能
  • 两个DDR3/3L存储器接口，32位数据宽度(40位含ECC)，最高数据传输速率为1333MHz
  • 集成安全加速(SEC)
  • 可信架构安全引导
  • 两个支持JESD207 (ADI)的射频接口
  • 支持MaxPhy接口(Maxim)
  • 两个具有网络加速功能的三速千兆以太网控制器，包括两个SGMII端口，从硬件上支持IEEE 1588™ v2
  • USB 2.0主机和设备控制器
  • 两个DUART，两个SPI和两个I2C控制器
  • 四通道SerDes PHY支持以下多路复用：
    • 两个通用公共无线接口(CPRI)控制器通道
    • USIM接口
