双同步整流器评估板

TEA2096DB2201

滚动图片以放大

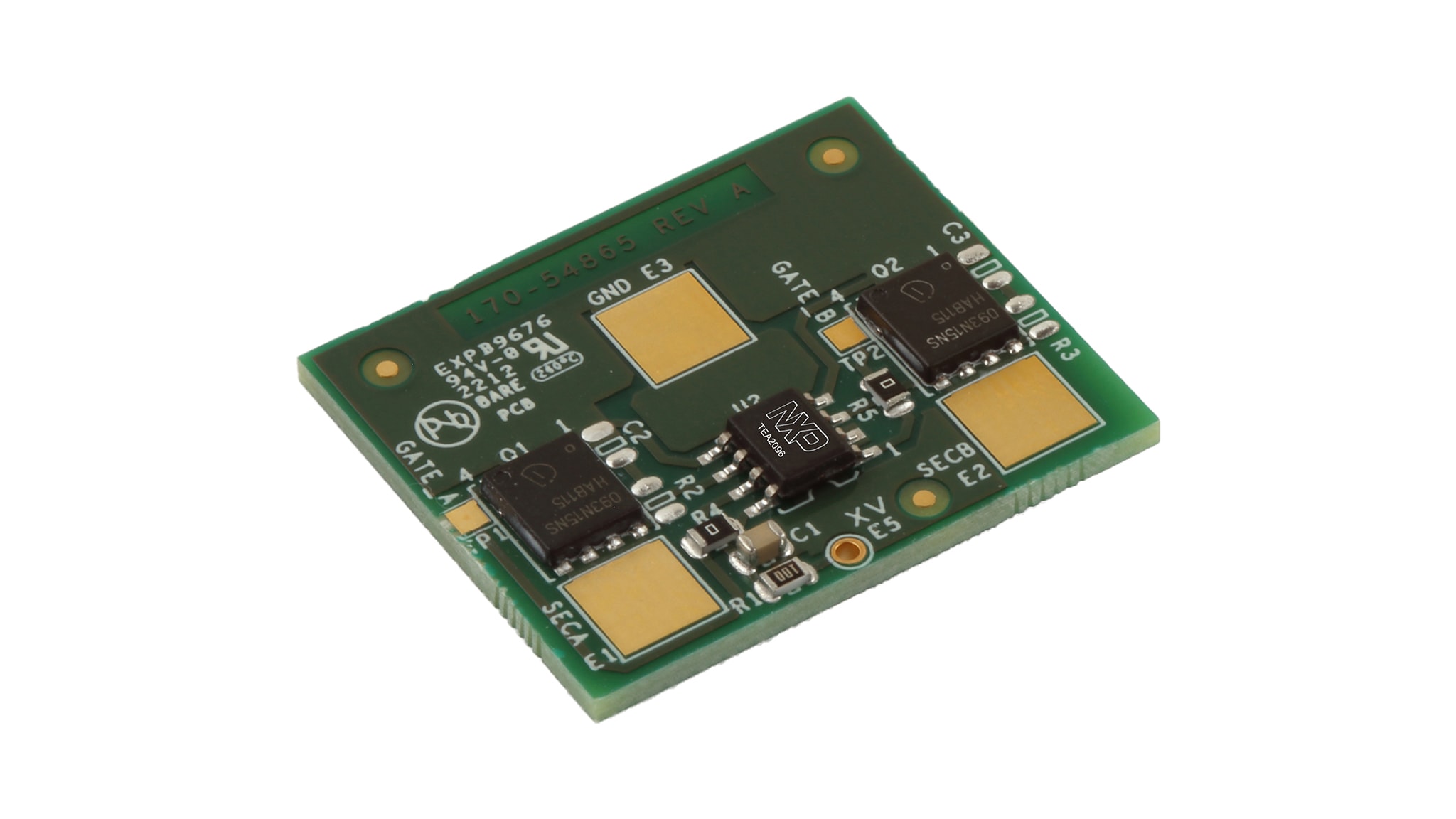

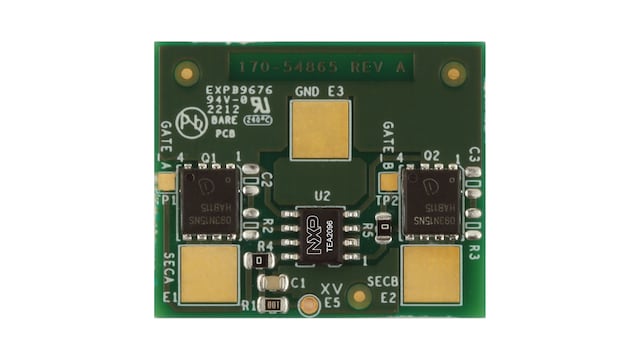

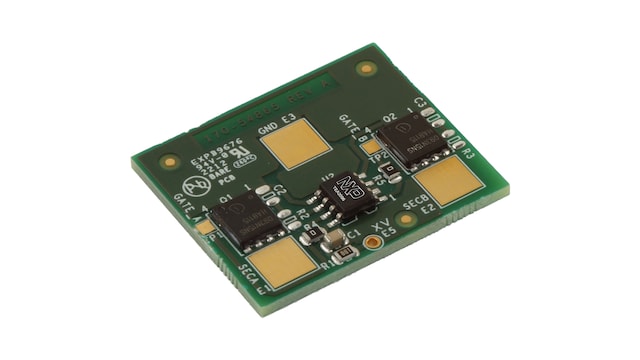

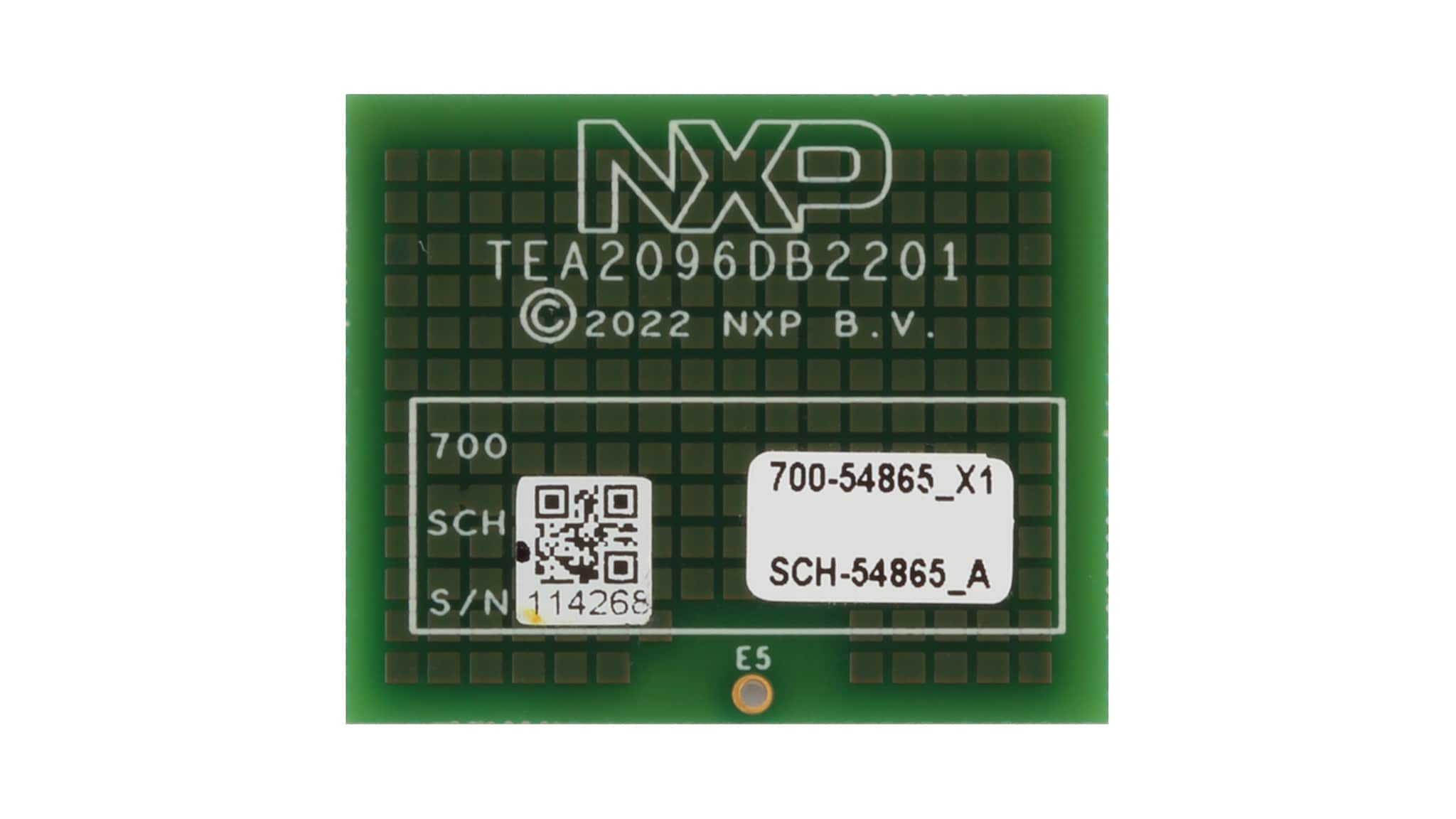

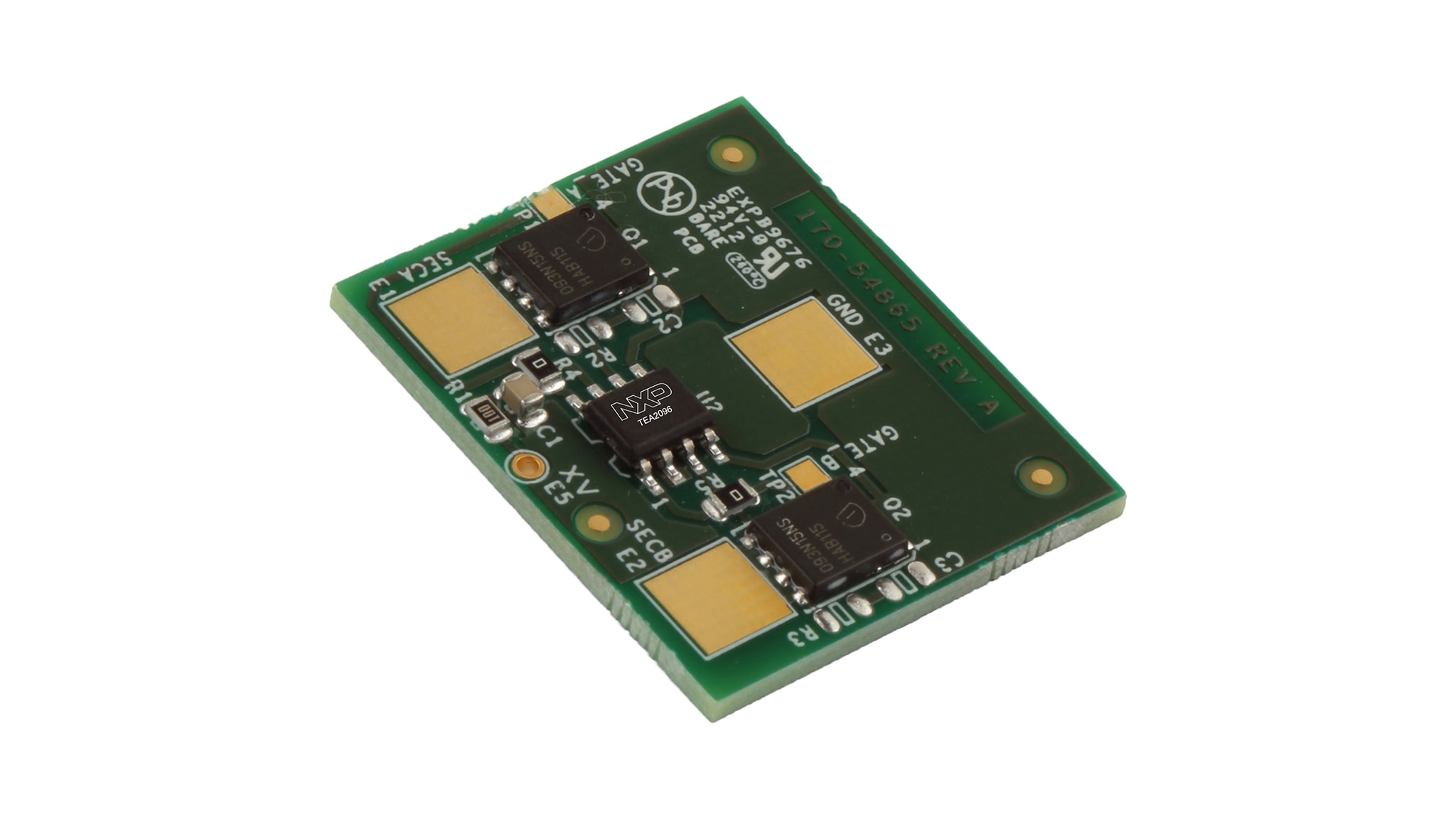

TEA2096DB2201是附加评估板，由采用SO-8封装的TEA2096T同步整流控制器来启用。TEA2096T控制器包括两个自适应栅极驱动，可在任何负载下实现最高效率。

TEA2096DB2201附加评估板还包含两个150V / 9.3mΩ的MOSFET，可轻松替换现有电源中的次级侧整流。

支持的器件

电源管理

次级侧控制器

  • TEA2096: 双同步整流器控制器

功能

主要功能

  • 易于替换现有LLC变流器的次级侧整流器
  • 集成了两个150V / 9.3mΩ MOSFET
  • 自适应栅极驱动，可在任何负载下实现较高效率
  • 支持高达1MHz的开关频率
  • 防止两个MOSFET同时导通的联锁功能
  • 供电电压范围广：4.75V至38V
  • 节能运行时电源电流为80μA

购买选项

TEA2096DB2201-Image

点击展开

  • TEA2096DB2201
    正常供应

  • Dual Synchronous Rectifier Evaluation Board.

  • 套件内含物

    • TEA2096DB2201附加板
  • $120.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 20
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
