无线音频和数据流的NFMI无线通讯

NXH2266
正常供应

滚动图片以放大

恩智浦® NXH2266是完全集成的单芯片解决方案，采用听力保健行业有着骄人业绩的成熟技术近场磁感应(NFMI)来实现无线音频流和数据通信。

这个超低功耗、单芯片解决方案，采用近场磁感应(NFMI)无线通讯优化无线音频和数据通信，为用户提供一个强大、紧密包含的体域网。

产品详情

特性

主要特性

  • 面向无线音频和数据流传输的单芯片解决方案
  • 面向音频处理的CoolFluxDSP®
  • 可独立工作或与外部MCU一起工作
  • 支持的音频采样频率：16 kHz至48 kHz
  • 封装为凸起芯片 < 7.82 mm²

第二代NFMI技术

  • 低功耗, 稳定耐用, 具有私密性
  • 596 kbit/s传输速率
  • 全球适用
  • 对人体的辐射低

集成式Arm® Cortex®-M0处理器

  • 广泛的外设系列
  • 用户完全可编程

灵活的嵌入式网络

  • 高达15个器件
  • 用于低延迟耳到耳通信的优化协议
  • 多达3个同步音频流

超低功耗操作

  • 双向音频流：1.2 mA时，采样率为16 kHz
  • 单向音频流：1.95 mA时，采样率为48 kHz

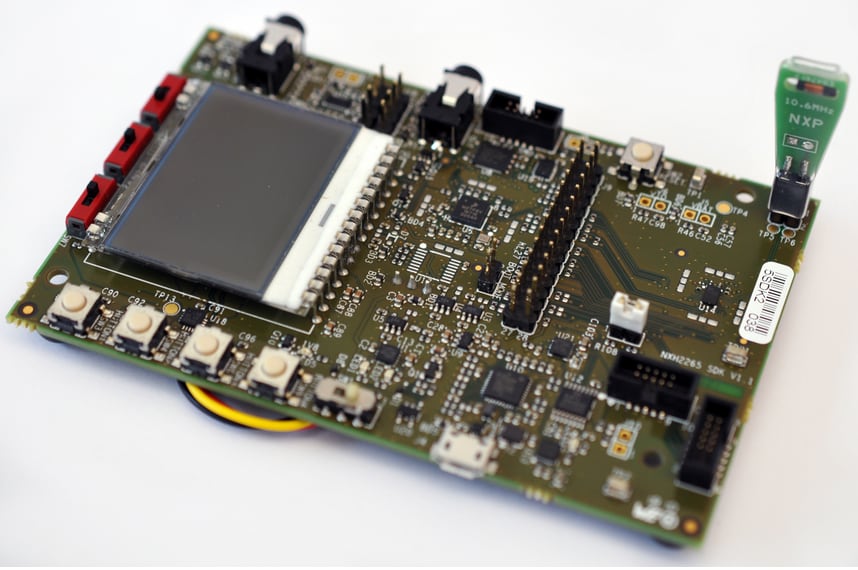

由完整的入门套件提供支持

  • 应用电路板
  • LPCXpresso固件环境
  • 软件开发套件

优势

  • 高效、强大和私密性
  • 人体兼容型
  • 用户可编程
  • 灵活的嵌入式网络
  • 允许高集成度
  • 超低功耗操作

更多

购买/参数

2 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

封装类型

Ambient Operating Temperature (Min to Max) (℃)

电源电压[最小]（V）

电源电压[最大]（V）

Power

SNR (dBFS)

Audio Streams

Non-Volatile Memory (kbit)

NXH2266SDK

正常供应

1 @ CNY14360.00

—

—

—

—

—

—

—

—

NXH2266UK

正常供应

10K @ CNY36.83

WLCSP40

-20 to 85

1.15

1.4

3

-93

Up to 3

0
