±2g/±4g/±8g，低重力加速度，12位数字加速度传感器

MMA8652FC
使用寿命终止
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

此产品处于“停产”状态，建议您更换FXLS8974CF产品。

恩智浦MMA8652FC 12位加速度传感器采用小型封装优化了性能。配备的嵌入式功能包括：

  • 灵活的用户可编程选件和两个可配置的中断引脚
  • 惯性唤醒中断信号在不活动期间可保持低功耗模式，但仍可监控事件，从而实现整体节电。

产品详情

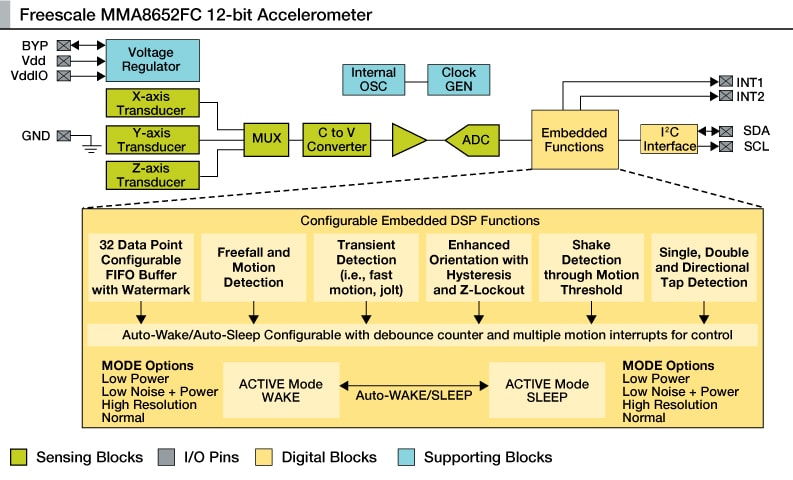

框图

G25089_MMA8652FC_BD

MMA8652FC accelerometer Block Diagram
获取框图PDF

特征

  • 小型2 x 2 x 1.0 mm DFN封装
  • 高灵敏度：每LSB 1 mg
  • 低噪声：每根赫兹150微克(与分辨率无关)
  • 低功耗模式：7微安
  • 中断和IIC接口电源：1.62到3.6 V
  • 电源电压：1.95到3.6 V
  • 输出数据速率：1.5到800 Hz

购买/参数

1 结果

不包含 1 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

MMA8652FC
数据手册

使用寿命终止

N true 0 PSPMMA8652FCzh 7 应用笔记 Application Note t789 2 应用笔记软件 Application Note Software t783 1 支持信息 Supporting Information t531 2 数据手册 Data Sheet t520 1 用户指南 User Guide t792 1 zh zh zh 数据手册 Data Sheet 1 1 MMA8652FC 3.3 English The MMA8652FC is an intelligent, low-power, three-axis, capacitive micromachined accelerometer with 12 bits 10 bits of resolution. This accelerometer is packed with embedded functions with flexible user programmable options, configurable to two interrupt pins. Embedded interrupt functions enable overall power savings, by relieving the host processor from continuously polling data. There is access to either low-pass or high-pass filtered data, which minimizes the data analysis required for jolt detection and 1344610995728691335543 PSP 800.5 KB None None documents None 1344610995728691335543 /docs/en/data-sheet/MMA8652FC.pdf 800504 /docs/en/data-sheet/MMA8652FC.pdf MMA8652FC documents N N 2016-10-31 MMA8652FC, 3-Axis, 12-bit, Digital Accelerometer - Data Sheet /docs/en/data-sheet/MMA8652FC.pdf /docs/en/data-sheet/MMA8652FC.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Oct 15, 2015 980000996212993340 Data Sheet Y N MMA8652FC, 3-Axis, 12-bit, Digital Accelerometer - Data Sheet 应用笔记 Application Note 2 2 0 English Troubleshooting, MMA865x, MMA845x, MMA8491, STB, STB hardware, STB software, STB, Communication Issues, Motion/Freefall status indicator, user interface 1391123990608734803110 PSP 1.1 MB None None documents None 1391123990608734803110 /docs/en/application-note/AN4085.pdf 1127027 /docs/en/application-note/AN4085.pdf AN4085 documents N N 2016-10-31 AN4085, Tips for troubleshooting the MMA865x/MMA845x/MMA8491 Sensor Toolbox Communication Issues - Application Note /docs/en/application-note/AN4085.pdf /docs/en/application-note/AN4085.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 30, 2014 645036621402383989 Application Note Y N AN4085, Tips for troubleshooting the MMA865x/MMA845x/MMA8491 Sensor Toolbox Communication Issues - Application Note 3 0 English AN4083SW.zip /docs/en/application-note-software/AN4083SW.zip /docs/en/application-note-software/AN4083SW.zip This document shows you how to configure the&#13;&#10;MMA865xFC devices to extract and manipulate the&#13;&#10;acceleration data. 1344647932320721076728 PSP 1.4 MB None None documents None 1344647932320721076728 /docs/en/application-note/AN4083.pdf 1424493 /docs/en/application-note/AN4083.pdf AN4083 documents N N 2016-10-31 Data Manipulation and Basic Settings for Xtrinsic MMA865xFC Accelerometers /docs/en/application-note/AN4083.pdf /docs/en/application-note/AN4083.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Aug 10, 2012 645036621402383989 Application Note Y N Data Manipulation and Basic Settings for Xtrinsic MMA865xFC Accelerometers 用户指南 User Guide 1 4 MMA8652FC,MMA8653FC 0 English How to use the MMA865xFC sensor toolbox accelerometer kit 1351114369236738941929 PSP 2.7 MB None None documents None 1351114369236738941929 /docs/en/user-guide/MMA865XFCSTUG.pdf 2701394 /docs/en/user-guide/MMA865XFCSTUG.pdf MMA865XFCSTUG documents N N 2016-10-31 MMA865xFC Sensor Toolbox User’s Guide /docs/en/user-guide/MMA865XFCSTUG.pdf /docs/en/user-guide/MMA865XFCSTUG.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Oct 24, 2012 132339537837198660 User Guide Y N MMA865xFC Sensor Toolbox User’s Guide 应用笔记软件 Application Note Software 1 5 0 English 1345051970404706077209 PSP 265.9 KB None None documents None 1345051970404706077209 /docs/en/application-note-software/AN4083SW.zip 265914 /docs/en/application-note-software/AN4083SW.zip AN4083SW documents N N 2012-08-15 Data Manipulation and Basic Settings for Xtrinsic MMA865xFC Accelerometers /docs/en/application-note-software/AN4083SW.zip /docs/en/application-note-software/AN4083SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Aug 10, 2012 789425793691620447 Application Note Software D N Data Manipulation and Basic Settings for Xtrinsic MMA865xFC Accelerometers 支持信息 Supporting Information 2 6 C English FRDM-FXS-MULTI, FRDM-FXS-9AXIS, BR-LE4.0-D2A, FRDM-KL25Z, Kinetis<sup>&#174;</sup> KL14/15/24/25 MCUs, FRDM-FXS-MULT, XTRINSIC_ISF, FRDM-K20D50M, MMA8652FC accelerometer, FXAS21000CQ gyroscope, MAG3110 3-axis magnetometer, MPL3115A2 pressure sensor, FXOS8700CQ 6-axis sensor and MMA9553L sensing platform, Xtrinsic Sensor Fusion Toolbox, spi 1384368817769736330747 PSP 169.5 KB None None documents None 1384368817769736330747 /docs/en/supporting-information/FRDM-FXS-MULTI.pdf 169500 /docs/en/supporting-information/FRDM-FXS-MULTI.pdf FRDM-FXS-MULTI documents N N 2016-10-31 FRDM-FXS-MULTI: Schematics, Block Diagrams - Supporting information /docs/en/supporting-information/FRDM-FXS-MULTI.pdf /docs/en/supporting-information/FRDM-FXS-MULTI.pdf Supporting Information N 371282830530968666 2023-06-18 pdf N en Oct 2, 2013 371282830530968666 Supporting Information Y N FRDM-FXS-MULTI: Schematics, Block Diagrams - Supporting information 7 C English FRDM-FXS-MULTI, FRDM-FXS-9AXIS, XtrinsicBlueRadio&#174; Bluetooth, BR-LE4.0-D2A, FRDM-KL25Z, Kinetis<sup>&#174;</sup> KL14/15/24/25 MCUs, FRDM-FXS-MULT, XTRINSIC_ISF, FRDM-K20D50M, MMA8652FC accelerometer, FXAS21000CQ gyroscope, MAG3110 3-axis magnetometer, MPL3115A2 pressure sensor, FXOS8700CQ 6-axis sensor and MMA9553L sensing platform, Xtrinsic Sensor Fusion Toolbox, spi 1384368818044711604599 PSP 196.8 KB None None documents None 1384368818044711604599 /docs/en/supporting-information/FRDM-FXS-MULTI-B.pdf 196760 /docs/en/supporting-information/FRDM-FXS-MULTI-B.pdf FRDM-FXS-MULTI-B documents N N 2016-10-31 FRDM-FXS-MULTI-B: Schematics, Block Diagrams - Supporting information /docs/en/supporting-information/FRDM-FXS-MULTI-B.pdf /docs/en/supporting-information/FRDM-FXS-MULTI-B.pdf Supporting Information N 371282830530968666 2023-06-18 pdf N en Sep 21, 2013 371282830530968666 Supporting Information Y N FRDM-FXS-MULTI-B: Schematics, Block Diagrams - Supporting information true 0 MMA8652FC downloads zh-Hans true 1 Y PSP Y Y 应用笔记 2 /docs/en/application-note/AN4085.pdf 2016-10-31 1391123990608734803110 PSP 2 Jan 30, 2014 Application Note Troubleshooting, MMA865x, MMA845x, MMA8491, STB, STB hardware, STB software, STB, Communication Issues, Motion/Freefall status indicator, user interface None /docs/en/application-note/AN4085.pdf English documents 1127027 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4085.pdf AN4085, Tips for troubleshooting the MMA865x/MMA845x/MMA8491 Sensor Toolbox Communication Issues - Application Note /docs/en/application-note/AN4085.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4085, Tips for troubleshooting the MMA865x/MMA845x/MMA8491 Sensor Toolbox Communication Issues - Application Note 1.1 MB AN4085 N 1391123990608734803110 /docs/en/application-note/AN4083.pdf 2016-10-31 1344647932320721076728 PSP 3 Aug 10, 2012 Application Note This document shows you how to configure the&#13;&#10;MMA865xFC devices to extract and manipulate the&#13;&#10;acceleration data. None /docs/en/application-note/AN4083.pdf English documents 1424493 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4083.pdf Data Manipulation and Basic Settings for Xtrinsic MMA865xFC Accelerometers /docs/en/application-note/AN4083.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Data Manipulation and Basic Settings for Xtrinsic MMA865xFC Accelerometers 1.4 MB AN4083 N 1344647932320721076728 应用笔记软件 1 /docs/en/application-note-software/AN4083SW.zip 2012-08-15 1345051970404706077209 PSP 5 Aug 10, 2012 Application Note Software None /docs/en/application-note-software/AN4083SW.zip English documents 265914 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN4083SW.zip Data Manipulation and Basic Settings for Xtrinsic MMA865xFC Accelerometers /docs/en/application-note-software/AN4083SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N N Data Manipulation and Basic Settings for Xtrinsic MMA865xFC Accelerometers 265.9 KB AN4083SW N 1345051970404706077209 支持信息 2 /docs/en/supporting-information/FRDM-FXS-MULTI.pdf 2016-10-31 1384368817769736330747 PSP 6 Oct 2, 2013 Supporting Information FRDM-FXS-MULTI, FRDM-FXS-9AXIS, BR-LE4.0-D2A, FRDM-KL25Z, Kinetis<sup>&#174;</sup> KL14/15/24/25 MCUs, FRDM-FXS-MULT, XTRINSIC_ISF, FRDM-K20D50M, MMA8652FC accelerometer, FXAS21000CQ gyroscope, MAG3110 3-axis magnetometer, MPL3115A2 pressure sensor, FXOS8700CQ 6-axis sensor and MMA9553L sensing platform, Xtrinsic Sensor Fusion Toolbox, spi None /docs/en/supporting-information/FRDM-FXS-MULTI.pdf English documents 169500 None 371282830530968666 2023-06-18 N /docs/en/supporting-information/FRDM-FXS-MULTI.pdf FRDM-FXS-MULTI: Schematics, Block Diagrams - Supporting information /docs/en/supporting-information/FRDM-FXS-MULTI.pdf documents 371282830530968666 Supporting Information N en None Y pdf C N N FRDM-FXS-MULTI: Schematics, Block Diagrams - Supporting information 169.5 KB FRDM-FXS-MULTI N 1384368817769736330747 /docs/en/supporting-information/FRDM-FXS-MULTI-B.pdf 2016-10-31 1384368818044711604599 PSP 7 Sep 21, 2013 Supporting Information FRDM-FXS-MULTI, FRDM-FXS-9AXIS, XtrinsicBlueRadio&#174; Bluetooth, BR-LE4.0-D2A, FRDM-KL25Z, Kinetis<sup>&#174;</sup> KL14/15/24/25 MCUs, FRDM-FXS-MULT, XTRINSIC_ISF, FRDM-K20D50M, MMA8652FC accelerometer, FXAS21000CQ gyroscope, MAG3110 3-axis magnetometer, MPL3115A2 pressure sensor, FXOS8700CQ 6-axis sensor and MMA9553L sensing platform, Xtrinsic Sensor Fusion Toolbox, spi None /docs/en/supporting-information/FRDM-FXS-MULTI-B.pdf English documents 196760 None 371282830530968666 2023-06-18 N /docs/en/supporting-information/FRDM-FXS-MULTI-B.pdf FRDM-FXS-MULTI-B: Schematics, Block Diagrams - Supporting information /docs/en/supporting-information/FRDM-FXS-MULTI-B.pdf documents 371282830530968666 Supporting Information N en None Y pdf C N N FRDM-FXS-MULTI-B: Schematics, Block Diagrams - Supporting information 196.8 KB FRDM-FXS-MULTI-B N 1384368818044711604599 数据手册 1 /docs/en/data-sheet/MMA8652FC.pdf 2016-10-31 1344610995728691335543 PSP 1 Oct 15, 2015 Data Sheet The MMA8652FC is an intelligent, low-power, three-axis, capacitive micromachined accelerometer with 12 bits 10 bits of resolution. This accelerometer is packed with embedded functions with flexible user programmable options, configurable to two interrupt pins. Embedded interrupt functions enable overall power savings, by relieving the host processor from continuously polling data. There is access to either low-pass or high-pass filtered data, which minimizes the data analysis required for jolt detection and None /docs/en/data-sheet/MMA8652FC.pdf English documents 800504 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MMA8652FC.pdf MMA8652FC, 3-Axis, 12-bit, Digital Accelerometer - Data Sheet /docs/en/data-sheet/MMA8652FC.pdf documents 980000996212993340 Data Sheet N en None Y pdf 3.3 N N MMA8652FC, 3-Axis, 12-bit, Digital Accelerometer - Data Sheet MMA8652FC 800.5 KB MMA8652FC N 1344610995728691335543 用户指南 1 /docs/en/user-guide/MMA865XFCSTUG.pdf 2016-10-31 1351114369236738941929 PSP 4 Oct 24, 2012 User Guide How to use the MMA865xFC sensor toolbox accelerometer kit None /docs/en/user-guide/MMA865XFCSTUG.pdf English documents 2701394 None 132339537837198660 2022-12-07 N /docs/en/user-guide/MMA865XFCSTUG.pdf MMA865xFC Sensor Toolbox User’s Guide /docs/en/user-guide/MMA865XFCSTUG.pdf documents 132339537837198660 User Guide N en None Y pdf 0 N N MMA865xFC Sensor Toolbox User’s Guide MMA8652FC,MMA8653FC 2.7 MB MMA865XFCSTUG N 1351114369236738941929 true Y Products
