NMH1000 Ultra-Low Power and Low-Voltage Magnetic Switch
For additional information and sample availability contact support or your local sales representative.

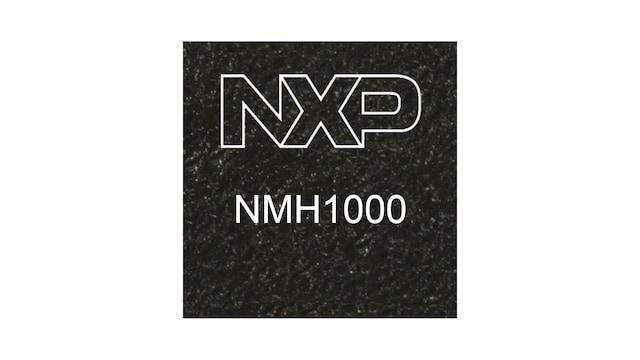

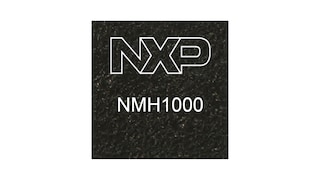

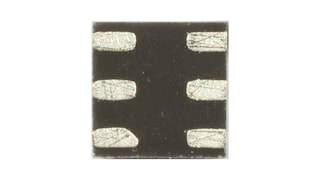

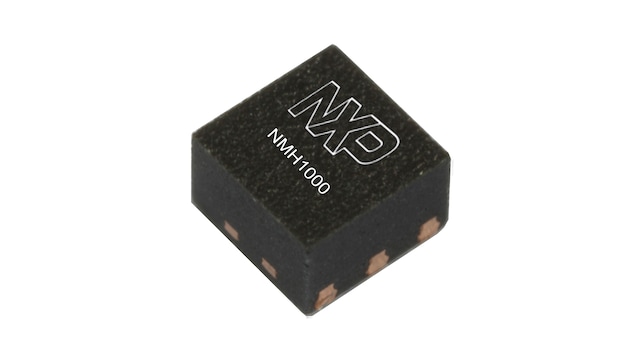

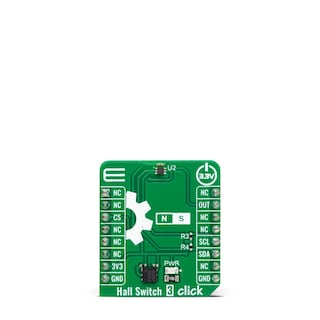

The NMH1000 is an ultra-low power monolithic Hall effect magnetic field sensor that provides a small footprint in a DFN 1.4 x 1.4 x 0.85 mm package in low-current and low-operating-voltage, I²C mode or standalone mode.
The sensor is most sensitive to a vertical field passing though the top-to-bottom surfaces, orthogonal to the plane of the application PCB. The input consists of a magnetic field ranging from earth-bound background to a maximum BGmax. Output is asserted when surrounding magnetic field is greater than the user-defined detection threshold. In the I²C mode, an indication of the magnetic field value can be reported out.
产品详情
Features
System Features
- Voltage supply range: 1.2 V to 3.6 V
- Current consumption: 75 nA @ 1 Hz
Stand Alone Mode
- Threshold selection 3-state hardware pin ( 70, 140 or 210 Gauss)
- Samples rate selection 3-state hardware pin ( 0.1 Hz, 1 Hz, 10 Hz)
I²C Mode
- Threshold selection data bits
- Sample rate selection data bits (from 0.1 Hz to 100 Hz)
Product Longevity Program
- This product is included in the NXP Product Longevity program with assured supply for a minimum of 10 years after launch
