高性能双核处理器

	MPC7448	MPC8641	MPC8641D
电压	1.05V	1.1V	1.1V
可靠性	10 yrs @ 105°C	10 yrs @ 105°C	10 yrs @ 105°C
技术	90nm绝缘硅(SOI)	90nm绝缘硅(SOI)	90nm绝缘硅(SOI)
Alti Vec引擎	有¹	有¹	有¹
缓存(每内核)	L1：32kB I/D L2：1MB，带ECC	L1：32kB I/D L2：1MB，带ECC	L1：32kB I/D L2：1MB，带ECC
处理器	单e600 Power Architecture内核，高达1.7GHz，2.3MIPS/MHz	单e600 Power Architecture内核，高达1.33GHz，2.3MIPS/MHz	双e600 Power Architecture内核，每内核高达1.5GHz，2.3MIPS/MHz
存储控制器	独立系统控制器，200MHz总线	双64b DDR2，高达533MHz，带ECC	双64b DDR2，高达600MHz，带ECC
封装	双64b DDR2，高达600MHz，带ECC	1023-HiCTE陶瓷33mm x 33mm	1023-HiCTE陶瓷33mm x 33mm
RapidIO®接口	无	串行RapidIO®，1x/4x @ 每通道高达2.5Gb/s	串行RapidIO®，1x/4x @ 每通道高达2.5Gb/s
PCI Express®接口	无	双PCI Express，x1/x2/x4/x8，每通道2.0Gb/s	双PCI Express，x1/x2/x4/x8，每通道2.0Gb/s

MPC7448

MPC8641

MPC8641D

电压

1.05V

1.1V

可靠性

10 yrs @ 105°C

技术

90nm绝缘硅(SOI)

Alti Vec引擎

有¹

缓存(每内核)

L1：32kB I/D
L2：1MB，带ECC

处理器

单e600 Power Architecture内核，高达1.7GHz，2.3MIPS/MHz

单e600 Power Architecture内核，高达1.33GHz，2.3MIPS/MHz

双e600 Power Architecture内核，每内核高达1.5GHz，2.3MIPS/MHz

存储控制器

独立系统控制器，200MHz总线

双64b DDR2，高达533MHz，带ECC

双64b DDR2，高达600MHz，带ECC

封装

双64b DDR2，高达600MHz，带ECC

1023-HiCTE陶瓷33mm x 33mm

RapidIO®接口

无

串行RapidIO®，1x/4x @ 每通道高达2.5Gb/s

PCI Express®接口

无

双PCI Express，x1/x2/x4/x8，每通道2.0Gb/s

购买/参数

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

MPC8641 Chip Errata[MPC8641DCE]

PDFDec 28, 2011版本更新 2

Embedded Multicore: An Introduction[EMBMCRM]

PDFJul 20, 2009版本更新 0
MPC8641D Integrated Host Processor Family Reference Manual[MPC8641DRM]

PDFJul 28, 2008版本更新 2
Errata to MPC8641D Integrated Host Processor Family Reference Manual, Rev. 1[MPC8641DRMAD]

PDFJul 28, 2008版本更新 1.1
e600 PowerPC ™ Core - Reference Manual[E600CORERM]

PDFMar 16, 2006版本更新 0
Programming Environments Manual for 32-Bit Implementations of the Power Architecture[MPCFPE32B]

PDFOct 17, 2005版本更新 3

恩智浦微控制器故障排除清单[AN13461]

PDFMay 9, 2022版本更新 0
AN2583, Programming the PowerQUICC^® III/PowerQUICC II Pro DDR SDRAM Controller - Application Note[AN2583]

PDFJul 29, 2014版本更新 11
AN3089, MPC8641D/MPC8641 Design Checklist - Application Note[AN3089]

PDFNov 6, 2013版本更新 1
Complex Fixed-Point Fast Fourier Transform Optimization for Altivec(TM)[AN2114]

PDFApr 5, 2013版本更新 4
DDR Interleaving for PowerQUICC and QorIQ Processors[AN3939]

PDFJun 30, 2010版本更新 1
AN4064, Utilizing 36-Bit Physical Addressing in U-Boot and Linux - Application Notes[AN4064]

PDFMar 28, 2010版本更新 0
Power Supply Design Guidelines for the MPC8641 and MPC8641D[AN3065]

PDFJan 15, 2010版本更新 2
MPC8641D Silicon Changes from Version 2.1 to 3.0[AN3882]

PDFJul 27, 2009版本更新 0
Utilizing Extra FC Credits for PCI Express Inbound Posted Memory Write Transactions in PowerQUICC III™ Devices[AN3781]

PDFJun 2, 2009版本更新 0
Using an External DMA Controller with Freescale Processors that Support Serial RapidIO® Technology[AN3550]

PDFOct 22, 2008版本更新 1.0
PowerQUICC^® DDR2 SDRAM Controller Register Setting Considerations[AN3369]

PDFSep 11, 2008版本更新 5.0
System Interconnect Fabrics: Ethernet Versus RapidIO[AN3088]

PDFFeb 15, 2007版本更新 0

MPC8641D, MPC8641 and MPC8641D Integrated Host Processor Hardware Specifications[MPC8641D]

PDFMay 22, 2014版本更新 3
MPC8641 and MPC8641D Integrated Host Processor Hardware Specifications Addendum for the MC8641xTxxnnnnxC Series[MPC8641DECS01AD]

PDFDec 11, 2008版本更新 0

Comparison of DDRx and SDRAM[DDRSDRAMWP]

PDFApr 16, 2008版本更新 0
A Smarter Approach to Multi-Core: NXP’s Next-Generation Communications Platform[MULTICOREFTFWP]

PDFJan 31, 2008版本更新 1
Designing Firewall/VPN with the PowerQUICC^® III MPC8572E[FIREWALLVPNWP]

PDFJun 15, 2007版本更新 0
NXP^®-Kaspersky Accelerated Antivirus Solution Platform for OEM Vendors[KASPERSKYWP]

PDFJun 15, 2007版本更新 1
Multi-Core Microprocessors in Embedded Applications[MULTICOREWP]

PDFJan 25, 2005版本更新 0

AdvancedTCA ® /AdvancedMC ™ Rapid System Development - Fact Sheet[ATCAAMCUMBRLAFS]

PDFOct 26, 2007版本更新 2
MPC8641D Radio Network Controller Card - AMC Reference Design[MPC8641DAMCFS]

PDFOct 24, 2007版本更新 2
Mercury Computer Systems - NXP^® Alliance Partner ATCA/AMC Fact Sheet[AMCMERCURYFS]

PDFOct 24, 2007版本更新 1
Embedded Planet - NXP^® Alliance Partner ATCA/AMC Fact Sheet[AMCEMBEDPLNTFS]

PDFOct 24, 2007版本更新 1
RadiSys - NXP^® Third-Party Vendor ATCA/AMC Fact Sheet[AMCRADISYSFS]

PDFOct 24, 2007版本更新 1
MPC8641D Host Processor Fact Sheet[MPC8641DDLCRFS]

PDFJun 15, 2007版本更新 4

支持

购物车

高性能双核处理器

产品详情

框图

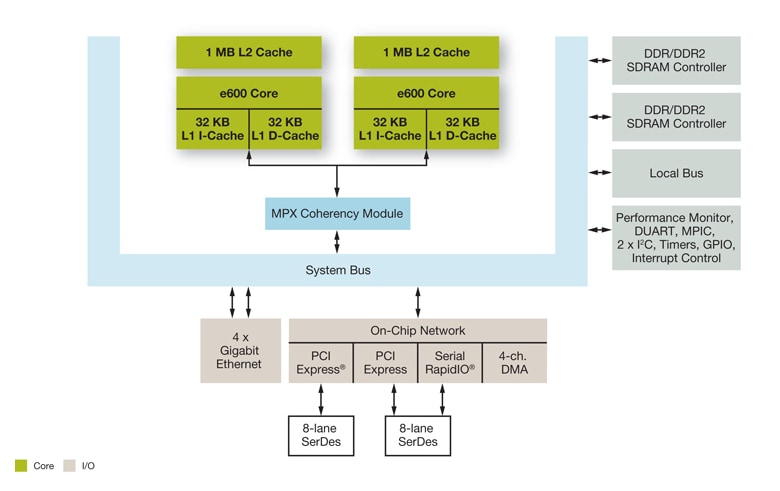

MPC8641D Block Diagram
