PowerQUICC® II处理器带PCI、256个通道。HDLC,UTOPIA II,10/100以太网,IMA | NXP 半导体

PowerQUICC® II处理器带PCI、256个通道。HDLC,UTOPIA II,10/100以太网,IMA

查看产品图片

产品详情

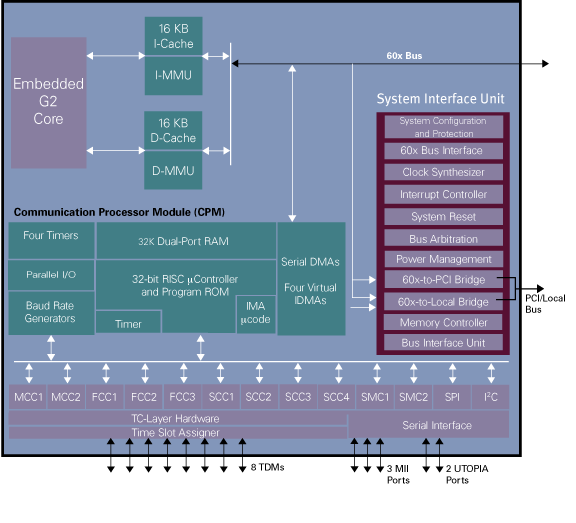

框图

MPC8266_BLKDIAG

特征

  • 300 MHz高速嵌入式G2内核
  • 强大的存储控制器和系统功能
  • 增强型32位RISC通信处理器模块
  • 3个多端口10/100 Mbps以太网MAC
  • 两个UTOPIA端口(155 Mbps ATM)
  • 256个HDLC通道(每个通道64 Kbps,全双工)
  • 4个10 Mbps以太网 MAC
  • 传输汇聚子层和反向复用,实现ATM功能
  • 集成式PCI接口
  • 由恩智浦合作伙伴计划提供强大的第三方工具支持
  • 远程接入集线器
  • 分支机构路由器
  • 移动通信基础设施设备
  • 电信交换设备
  • 以太网交换机
  • T1/E1-to-T3/E3桥
  • xDSL系统

对比表

MPC8260衍生产品

8250 8255 8260 8264 8265 8266
IMA功能 - - - -
UTOPIA II端口 0 2 2 2 2 2
PCI接口 - - -
多通道HDLC 最多128个 最多128个 最多256个 最多256个 最多256个 最多256个
I-Cache (KB) 16 16 16 16 16 16
快速通信控制器(FCC) 3 2 3 3 3 3
串行通信控制器(SCC) 4 4 4 4 4 4
D-Cache (KB) 16 16 16 16 16 16
以太网(10/100) 最多3个 最多两个 最多3个 最多3个 最多3个 最多3个
以太网(10T) 最多4个 最多4个 最多4个 最多4个 最多4个 最多4个

PowerQUICC® II掩码和版本

IMMR_ [16-31]¹ Rev_Num² 认证 版本 工艺 掩码
MPC8260系列 XC A.1
B.3
C.2
0.29 µm
(HiP3)
0K26N
3K23A
6K23A, 7K23A
MPC8260系列 XC
MC
MC
A.0
B.1
C.0
0.25 µm
(HiP4)
2K25A
4K25A
5K25A
MPC8280系列 -
MC
MC
0
0.1
A.0
0.13 µm
(HiP7)
0K49M
1K49M
2K49M, 3K49M
MPC8272系列 PC
MC
0
A.0
0.13 µm
(HiP7)
0K50M
1K50M

注意:
1.IMMR[16-31]指示掩码号。
2. DPRAM内偏移为0x8AF0的Rev_Num指示CPM微码修订编号。
3. 加密启用。
4 . 加密禁用。

掩码和版本表的最后更新日期为2004年10月14日。
