12 V多用途低导通电阻eXtreme开关

MC12XS2 正常供应

滚动图片以放大

恩智浦®12XS2系列eXtreme开关由单高边或双高边配置的超低RDSON器件构成，用于取代电源管理应用和DC电机控制中的机电式继电器或分立器件。

  • 它专为恶劣的环境而设计，拥有自恢复功能。
  • 适用于具有高浪涌电流的负载，以及电机和所有类型的电阻性和电感性负载。
  • 编程、控制和诊断通过串行外设接口完成。
  • 输出的交替和脉宽调制(PWM)控制有一个专用的并行输入。
  • 采用功率增强型16引脚PQFN、12x12 mm封装。

框图

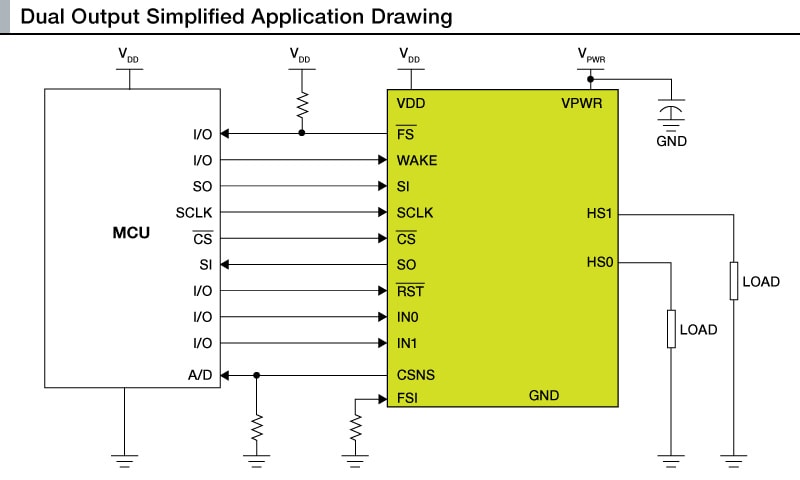

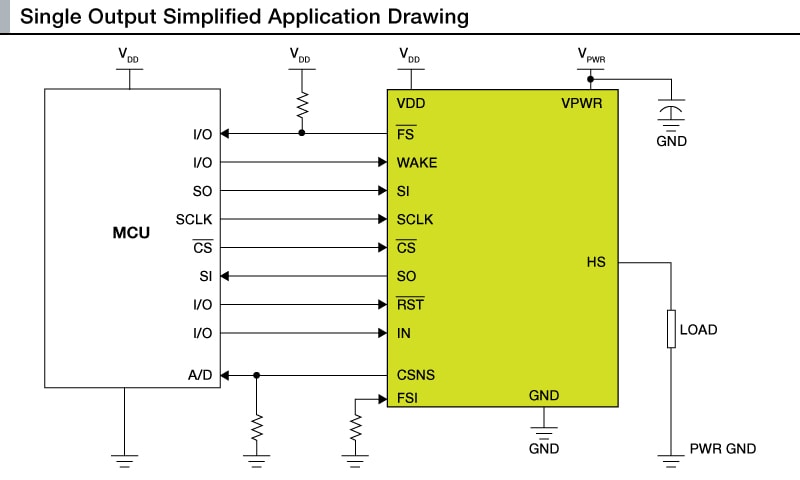

Simplified Application Drawing

获取框图PDF

功能

MC33981

  • 工作电压范围为6.0 V至27 V，睡眠电流< 5.0 μA，扩展模式下电压为4.5 V
  • 40 A连续电流容量
  • 高达60 kHz的PWM功能， 具有5%到100%的占空比
  • 通过外部电容进行压摆率控制
  • 过流和过热保护、欠压关断和故障报告
  • 反向电池保护
  • 用于外部低边N沟道MOSFET的栅极驱动信号，具有保护功能
  • 输出电流监控
  • 温度反馈

MC33982/984/988

  • 工作电压范围为6.0 V至20 V，睡眠电流<5.0 μA，扩展模式下电压范围为4.0 V至28 V
  • 高达40 A的稳态电流容量
  • 8.0 MHz 16位3.3 V和5.0 V SPI控制和状态报告，带有菊花链功能
  • 可编程过流跳闸阈值及过热保护、欠压关断和故障报告
  • 增强型16 V反向电池保护
  • 输出电流监控
  • 通过硬件实现的看门狗和可配置的故障安全模式

产品长期供货计划

  • 该产品包含在恩智浦产品长期供货计划中，为您的嵌入式设计确保产品的供货稳定性。MC33982 (MC12XS2)、MC33984 (MC12XS2)和MC33988 (MC12XS2)包含在15年产品长期供货计划中

对比表

12XS2

产品 数据手册 输出数量 导通电阻(mOhm) 封装 推荐工具
MC33981 Datasheet [English] 单 1 x 4.0 PQFN 16 -
MC33982 Datasheet [English] 单 1 x 2.0 PQFN 16 KIT33982CEVBE
MC33984 Datasheet [English] 双 2 x 4.0 PQFN 16 KIT33984CEVBE
MC33988 Datasheet [English] 双 2 x 8.0 PQFN 16 KIT33988CEVBE
