评估套件 - 33982，单通道2mOhm高边开关

KIT33982CEVBE
正常供应

滚动图片以放大

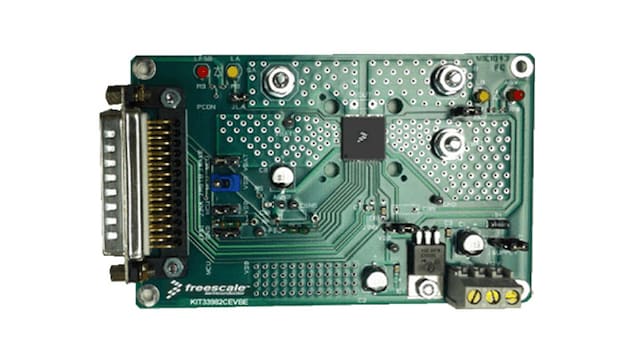

该评估板支持33982。33982是一款具有自我保护功能的2.0 mΩ硅高边开关，用于取代电源管理应用中的机电式继电器、熔断器和分立器件。33982专为恶劣的环境而设计，拥有自恢复功能。该器件适用于具有高浪涌电流的负载，以及电机和所有类型的电阻性和电感性负载。

产品详情

支持的器件

电源管理

高边开关

  • MC12XS2: 12V多用途低导通电阻eXtreme开关

特征

电源管理

  • 6.0 V至27 V工作电压，待机电流< 5.0 µA
  • 增强型 - 16 V反向极性VPWR保护
  • 最高2.0 mΩ的单高边开关，带并行输入或SPI控制
  • 输出电流监控，有两个SPI可选择的电流比率
  • SPI控制过流限制、过流故障空白时间、输出关闭OFF开路负载检测、输出ON/OFF控制、看门狗超时，压摆率和故障状态报告
  • SPI状态报告涉及过流，开路和短路负载，过热，欠压和过压关断， 故障安全引脚状态和编程状态

购买选项

KIT33982CEVBE-Image

点击展开

  • KIT33982CEVBE
    正常供应

  • Evaluation Kit - MC33982, Single 2 mOhm Intelligent High-current Self-protected High Side Switch.

    • KIT33982CEVBE硬件
    • 快速参考指南
  • $111.42 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 2
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
