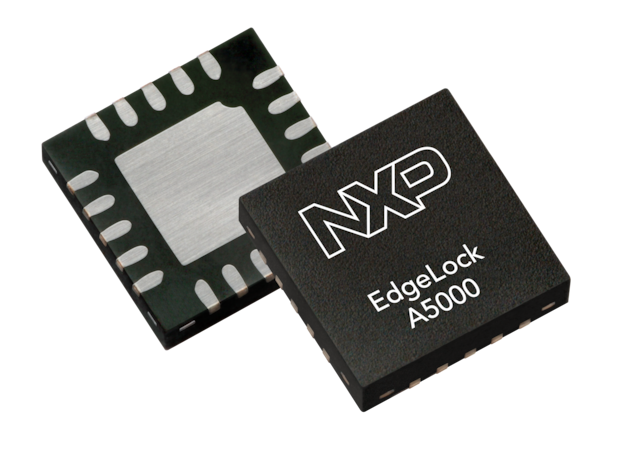

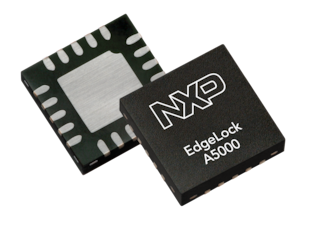

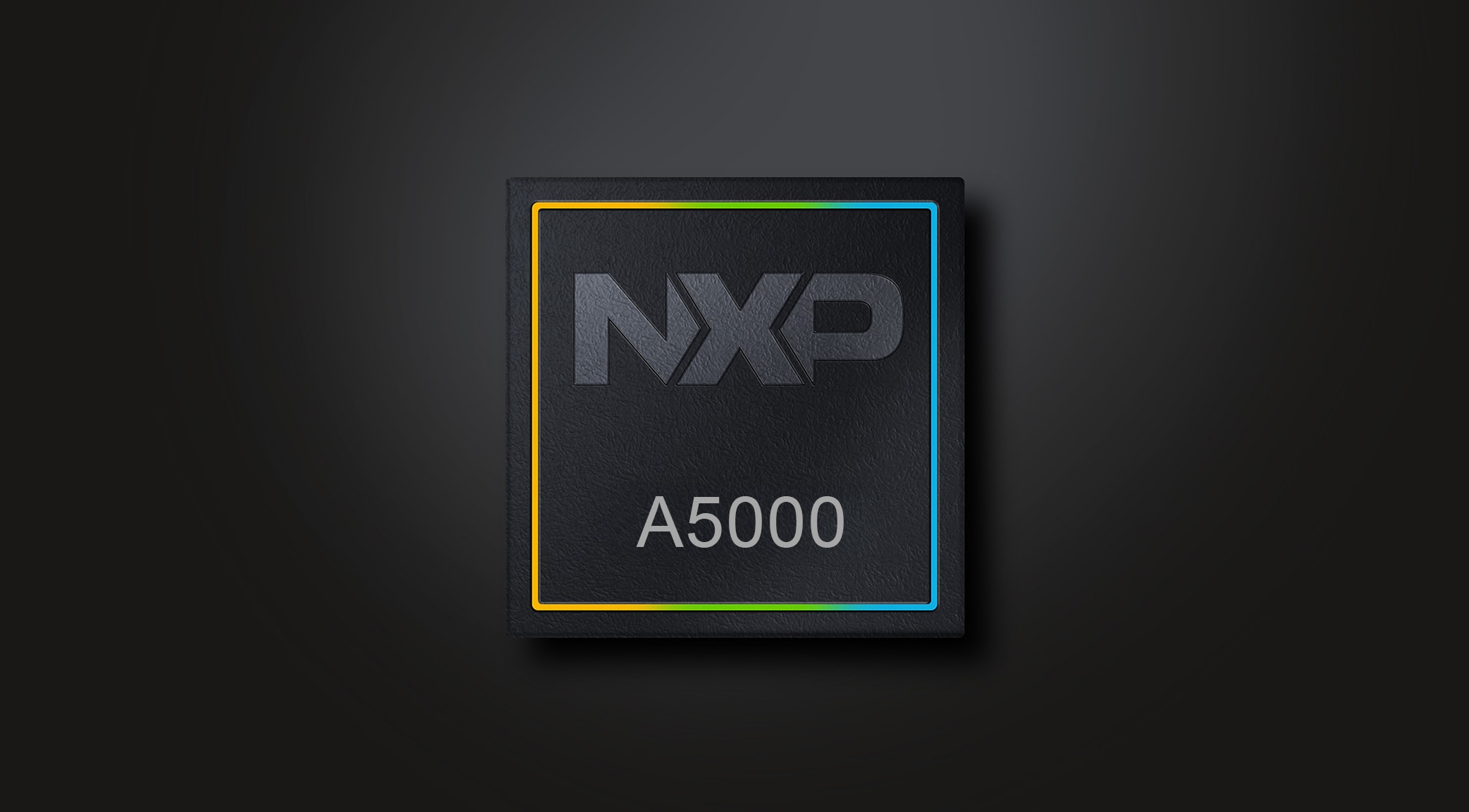

EdgeLock® A5000 Plug&Trust安全身份验证芯片：身份验证更安全、可扩展且简单

EDGELOCK-A5000
正常供应

滚动图片以放大

EdgeLock A5000安全身份验证芯片(SA)提供获得通用标准EAL 6+认证的安全性，具有面向简单身份验证用例的对称和非对称加密，采用优化和专用的身份验证产品完善了恩智浦EdgeLock安全芯片(SE)系列产品组合。

经过认证的EdgeLock Assurance

EdgeLock A5000属于经过认证的EdgeLock Assurance项目，符合行业标准，并遵循恩智浦的安全设计方法。它已经通过了第三方实验室的认证。

框图

EdgeLock A5000中间件图

EdgeLock A5000 Middleware Diagram

特性

高级安全

  • 经过认证的通用标准(CC)基于EAL 6+的硬件，带有专用身份验证软件
  • 安全的闪存用户存储器高达8kB
  • 与主机MCU/MPU的安全绑定和总线加密
  • 端到端加密的安全证书注入
  • 板载证书、数据高级访问控制策略
  • EdgeLock 2GO支持灵活的证书定制和无线密钥管理

加密算法

  • 基于ECC NIST P-256和P-384的PKI加密技术
  • ECDSA, ECDH/ECDHE
  • AES和3DES加密与解密
  • AES模式：CBC、CTR、ECB、CCM和GCM
  • HMAC、CMAC、GMAC和SHA-256/384
  • HKDF、PRF (TLS-PSK)
  • 符合NIST SP800-90B的TRNG
  • 符合NIST SP800-90A的DRBG
  • Qi 1.3无线充电认证

通信

  • I²C目标（高速模式，1 Mbit/s）

主要特性

  • Plug&Trust支持快便捷设计，并采用专门的产品支持包实现身份验证
  • 面向身份验证用例的现成示例代码
  • 使用任何MCU/MPU实现系统级安全的全包式解决方案，无需编写安全代码或处理关键密钥材料
  • 支持遵从多种身份验证安全标准，如DLMS/COSEM、Qi 1.3和ISO15118-2
  • 具有硬件级安全证书注入的身份验证设备的信任锚

封装

  • 小而薄的HX2QFN20封装，特别适合空间有限的应用（3mmx3mmx0.33mm）

温度

  • 扩展温度范围（-40至+105°C）

更多

购买/参数

1 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

封装类型

Operating Temperature (Min-Max) (℃)

A5000R2HQ1
数据手册

HX2QFN20

-40 to 105
