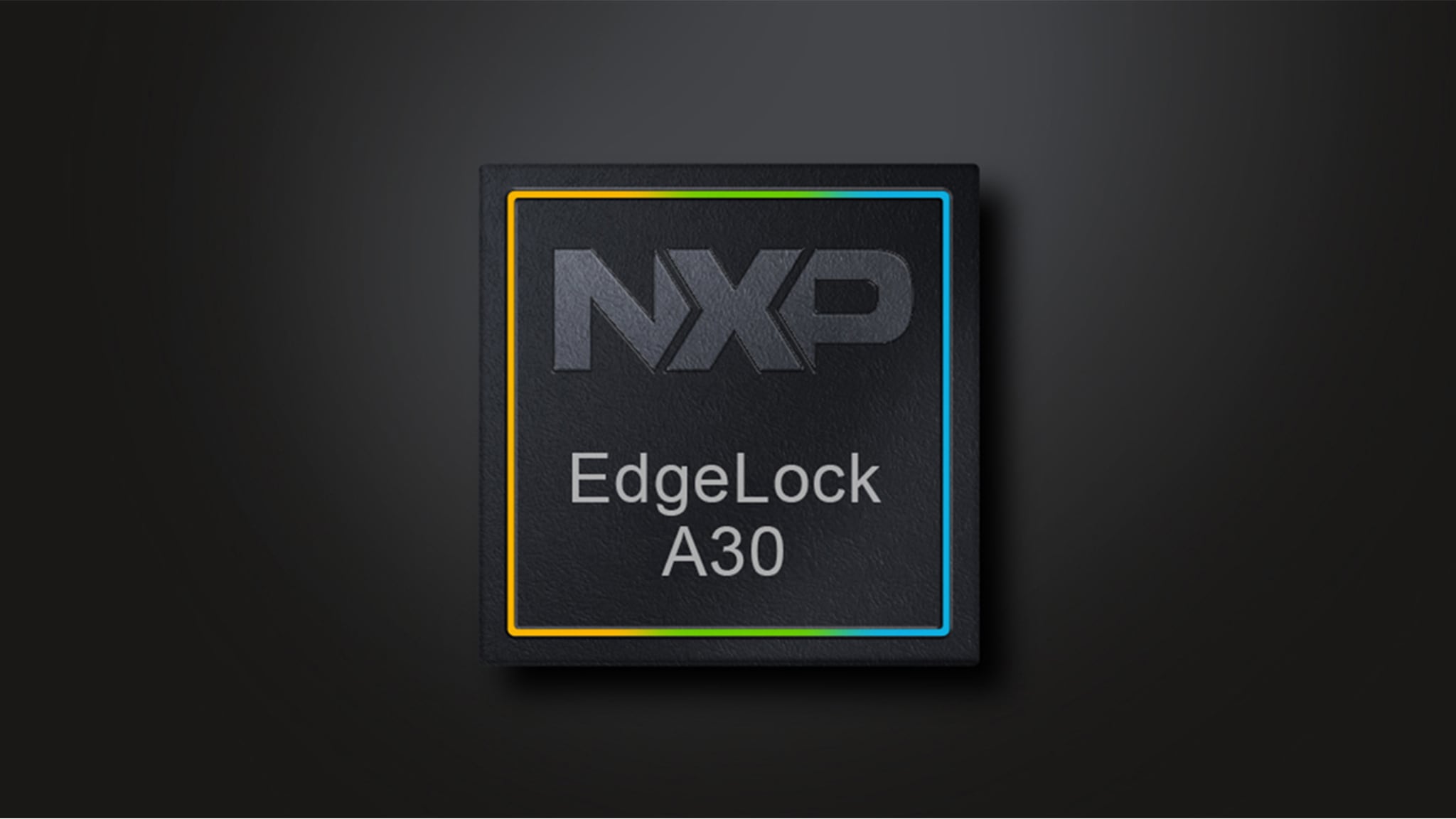

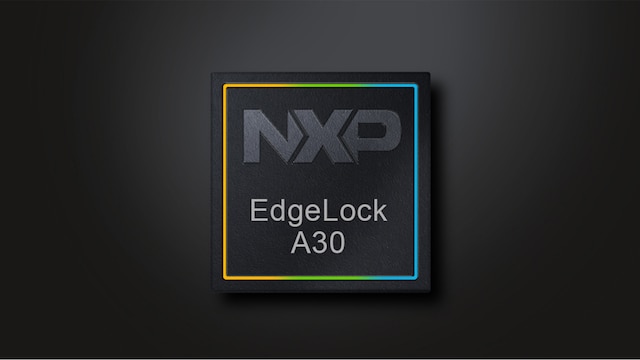

EdgeLock® A30安全验证芯片

A30
正常供应

滚动图片以放大

EdgeLock A30是一款即用型、经过CC EAL 6+认证的安全验证芯片，包含高级安全机制(包括AVA_VAN.5)，并支持对称和非对称加密。其I²C接口可轻松连接到MCU/MPU，并可快速扩展到大批量生产，制造商能够快速交付物联网设备和配件。EdgeLock A30满足了多个市场对安全配件和设备身份验证的广泛需求，并符合当前和未来的安全、保护及可持续性监管要求，包括产品数字护照。

框图

选择框图:

EdgeLock A30

EdgeLock-A30-BD

EdgeLock NX中间件

EdgeLock-NX-Middleware-BD
获取框图PDF

特性

先进的信息安全

  • 通过了CC EAL 6+ AVA_VAN.5认证
  • 16kB NVM存储器
  • 标准MCU或MPU的安全配套芯片
  • EdgeLock 2GO支持证书生成和证书交付

加密算法

  • 非对称身份验证
  • 通过PKI进行密钥管理和密钥配置
  • 支持多种加密原语
    • RNG (NIST SP800-90B)
    • SHA-256/384、HMAC和HKDF (RFC5869)
    • AES-128/256 (ECB、CBC、CMAC、CCM和GCM)
    • 基于NIST P-256和Brainpool P256r1的ECDSA和ECDH

通信

  • I²C目标(100kHz、400kHz或1MHz)
  • 两个可配置的通用IO

封装

  • 提供WLCSP和HVQFN20封装

温度

  • 扩展的温度范围(-40°C至+105°C)

购买/参数

1 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

Operating Temperature (Min-Max) (℃)

A30LDJUK
数据手册

-40 to 105

N true 0 PSPA30zh 4 应用笔记 Application Note t789 2 数据手册 Data Sheet t520 1 简介 Fact Sheet t523 1 zh zh zh 数据手册 Data Sheet 1 1 3.0 English A30 is a secure authentication IC for IoT platforms, electronic accessories, and consumable devices such as home electronic devices, mobile accessories, and medical supplies. A30 contains ECC key pairs, which can be generated by the IC itself to make sure that private keys are never exposed outside the IC. Also it performs cryptographic operations for security critical communication and control functions 1738099063917717541423 PSP 2.3 MB None None documents None 1738099063917717541423 /docs/en/data-sheet/A30-DS.pdf 2266977 /docs/en/data-sheet/A30-DS.pdf A30-DS documents N N 2025-01-28 A30 Secure Authenticator /docs/en/data-sheet/A30-DS.pdf /docs/en/data-sheet/A30-DS.pdf Data Sheet N 980000996212993340 2025-01-28 pdf N en Jan 27, 2025 980000996212993340 Data Sheet Y N A30 Secure Authenticator 应用笔记 Application Note 2 2 1.1 English This document describes the considerations for migrating an existing design based on EdgeLock A5000 to EdgeLock A30. 1737580404161701894329 PSP 1.5 MB None None documents None 1737580404161701894329 /docs/en/application-note/AN14559.pdf 1465568 /docs/en/application-note/AN14559.pdf AN14559 documents N N 2025-01-22 Migration Guide from EdgeLock A5000 to EdgeLock A30 /docs/en/application-note/AN14559.pdf /docs/en/application-note/AN14559.pdf Application Note N 645036621402383989 2025-01-24 pdf N en Jan 23, 2025 645036621402383989 Application Note Y N Migration Guide from EdgeLock A5000 to EdgeLock A30 3 1.0 English This document is the entry point for getting familiar with EdgeLock A30 support package contents and how to get started with them. 1737717295693728808965 PSP 3.6 MB None None documents None 1737717295693728808965 /docs/en/application-note/AN14238.pdf 3564408 /docs/en/application-note/AN14238.pdf AN14238 documents N N 2025-01-24 Get started with EdgeLock A30 secure authenticator support package /docs/en/application-note/AN14238.pdf /docs/en/application-note/AN14238.pdf Application Note N 645036621402383989 2025-01-24 pdf N en Jan 15, 2025 645036621402383989 Application Note Y N Get started with EdgeLock A30 secure authenticator support package 简介 Fact Sheet 1 4 1.0 English This ready-to-use, Common Criteria (CC) EAL6+ certified secure authenticator has an I2 C target for easy connection to MCUs/MPUs and scales quickly to high volumes so manufacturers can quickly deliver IoT devices and accessories. 1737394917966718212920 PSP 3.6 MB None None documents None 1737394917966718212920 /docs/en/fact-sheet/A30FS.pdf 3581857 /docs/en/fact-sheet/A30FS.pdf A30FS documents N N 2025-01-20 EdgeLock® A30 secure authenticator Fact Sheet /docs/en/fact-sheet/A30FS.pdf /docs/en/fact-sheet/A30FS.pdf Fact Sheet N 736675474163315314 2025-01-21 pdf N en Jan 20, 2025 736675474163315314 Fact Sheet Y N EdgeLock® A30 secure authenticator Fact Sheet false 0 A30 downloads zh-Hans true 1 Y PSP Y Y 应用笔记 2 /docs/en/application-note/AN14559.pdf 2025-01-22 1737580404161701894329 PSP 2 Jan 23, 2025 Application Note This document describes the considerations for migrating an existing design based on EdgeLock A5000 to EdgeLock A30. None /docs/en/application-note/AN14559.pdf English documents 1465568 None 645036621402383989 2025-01-24 N /docs/en/application-note/AN14559.pdf Migration Guide from EdgeLock A5000 to EdgeLock A30 /docs/en/application-note/AN14559.pdf documents 645036621402383989 Application Note N en None Y pdf 1.1 N N Migration Guide from EdgeLock A5000 to EdgeLock A30 1.5 MB AN14559 N 1737580404161701894329 /docs/en/application-note/AN14238.pdf 2025-01-24 1737717295693728808965 PSP 3 Jan 15, 2025 Application Note This document is the entry point for getting familiar with EdgeLock A30 support package contents and how to get started with them. None /docs/en/application-note/AN14238.pdf English documents 3564408 None 645036621402383989 2025-01-24 N /docs/en/application-note/AN14238.pdf Get started with EdgeLock A30 secure authenticator support package /docs/en/application-note/AN14238.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N Get started with EdgeLock A30 secure authenticator support package 3.6 MB AN14238 N 1737717295693728808965 数据手册 1 /docs/en/data-sheet/A30-DS.pdf 2025-01-28 1738099063917717541423 PSP 1 Jan 27, 2025 Data Sheet A30 is a secure authentication IC for IoT platforms, electronic accessories, and consumable devices such as home electronic devices, mobile accessories, and medical supplies. A30 contains ECC key pairs, which can be generated by the IC itself to make sure that private keys are never exposed outside the IC. Also it performs cryptographic operations for security critical communication and control functions None /docs/en/data-sheet/A30-DS.pdf English documents 2266977 None 980000996212993340 2025-01-28 N /docs/en/data-sheet/A30-DS.pdf A30 Secure Authenticator /docs/en/data-sheet/A30-DS.pdf documents 980000996212993340 Data Sheet N en None Y pdf 3.0 N N A30 Secure Authenticator 2.3 MB A30-DS N 1738099063917717541423 简介 1 /docs/en/fact-sheet/A30FS.pdf 2025-01-20 1737394917966718212920 PSP 4 Jan 20, 2025 Fact Sheet This ready-to-use, Common Criteria (CC) EAL6+ certified secure authenticator has an I2 C target for easy connection to MCUs/MPUs and scales quickly to high volumes so manufacturers can quickly deliver IoT devices and accessories. None /docs/en/fact-sheet/A30FS.pdf English documents 3581857 None 736675474163315314 2025-01-21 N /docs/en/fact-sheet/A30FS.pdf EdgeLock® A30 secure authenticator Fact Sheet /docs/en/fact-sheet/A30FS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1.0 N N EdgeLock® A30 secure authenticator Fact Sheet 3.6 MB A30FS N 1737394917966718212920 true Y Products
