Embedded SW: PF8x SW Driver
This embedded software solution provides high-level support for PF8x family PMICs. The driver implements basic functionality for PF8x interfacing such as I²C communication abstraction, watchdog settings and refresh, regulators and safety features configuration. The driver also provides complete register map.
Implementation of the PF8x software driver is generic, allowing to use any suitable microcontroller with I²C module. Example project for KL25Z microcontroller is a part of the package.
软件详情
Features
-
PF8x SW Driver
- I²C communication abstraction.
- Watchdog settings and refresh.
- Regulators and safety features configuration.
- Complete register map.
-

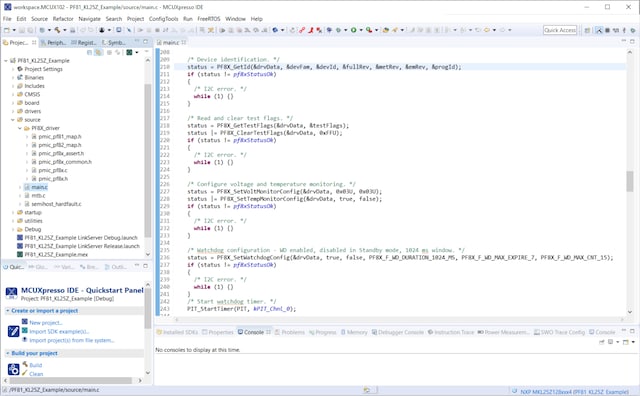

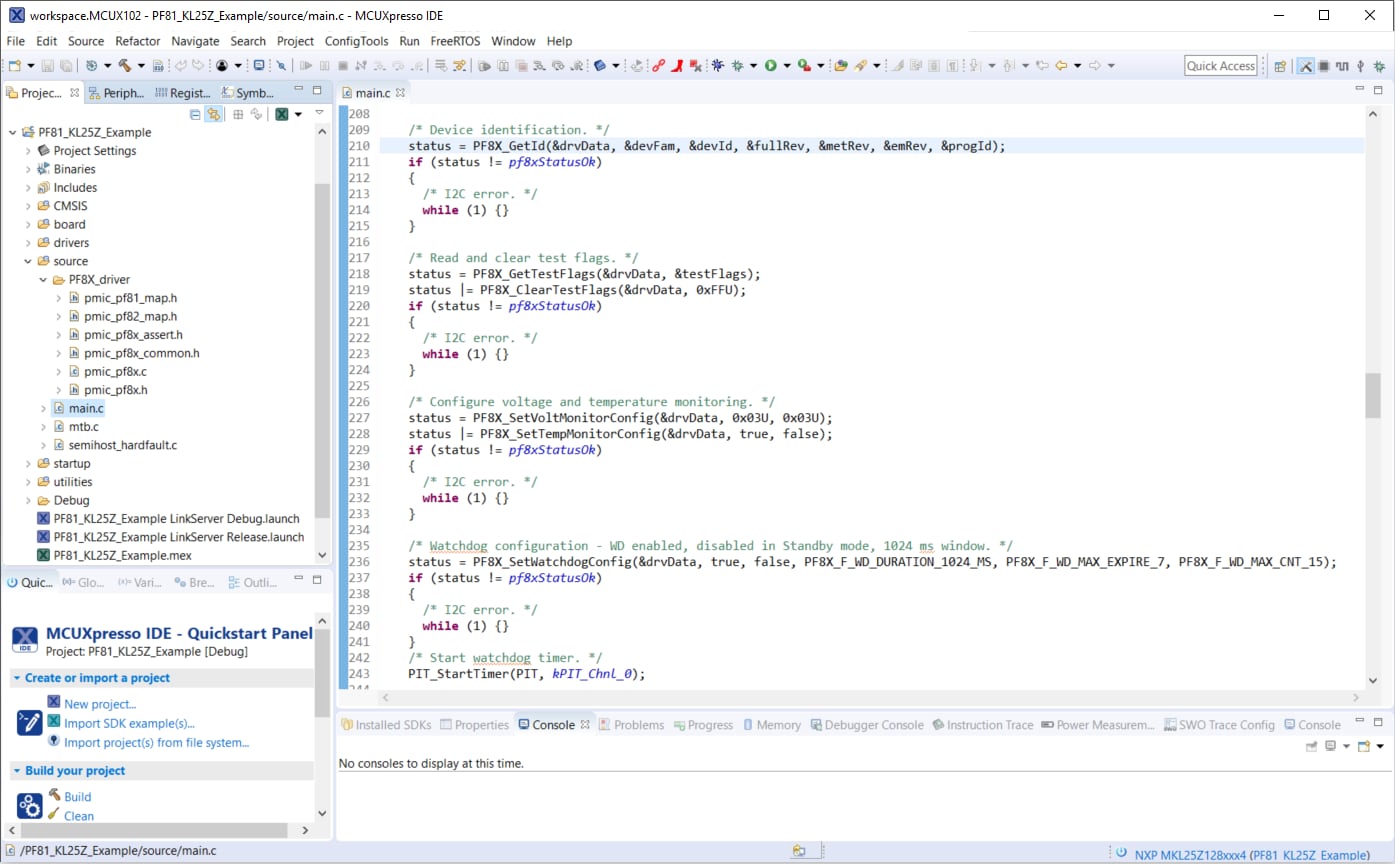

MCUXpresso example project
- Example project for PF81 and KL25Z evaluation board.
支持的器件
- PF81-PF82: 面向高性能处理应用的12通道电源管理集成电路（PMIC）
系统需求
Software
- MCUXpresso IDE (version 10.2.1).
- FRDM-KL25Z SDK (version 2.2.0) (can be downloaded via MCUXpresso SDK builder).
Hardware
- FRDM-KL25Z development kit platform.
- KITPF8100FRDMEVM board.
