High Voltage Battery Junction Box Reference Design

RD9Z1-638BJBEVM 正常供应

滚动图片以放大

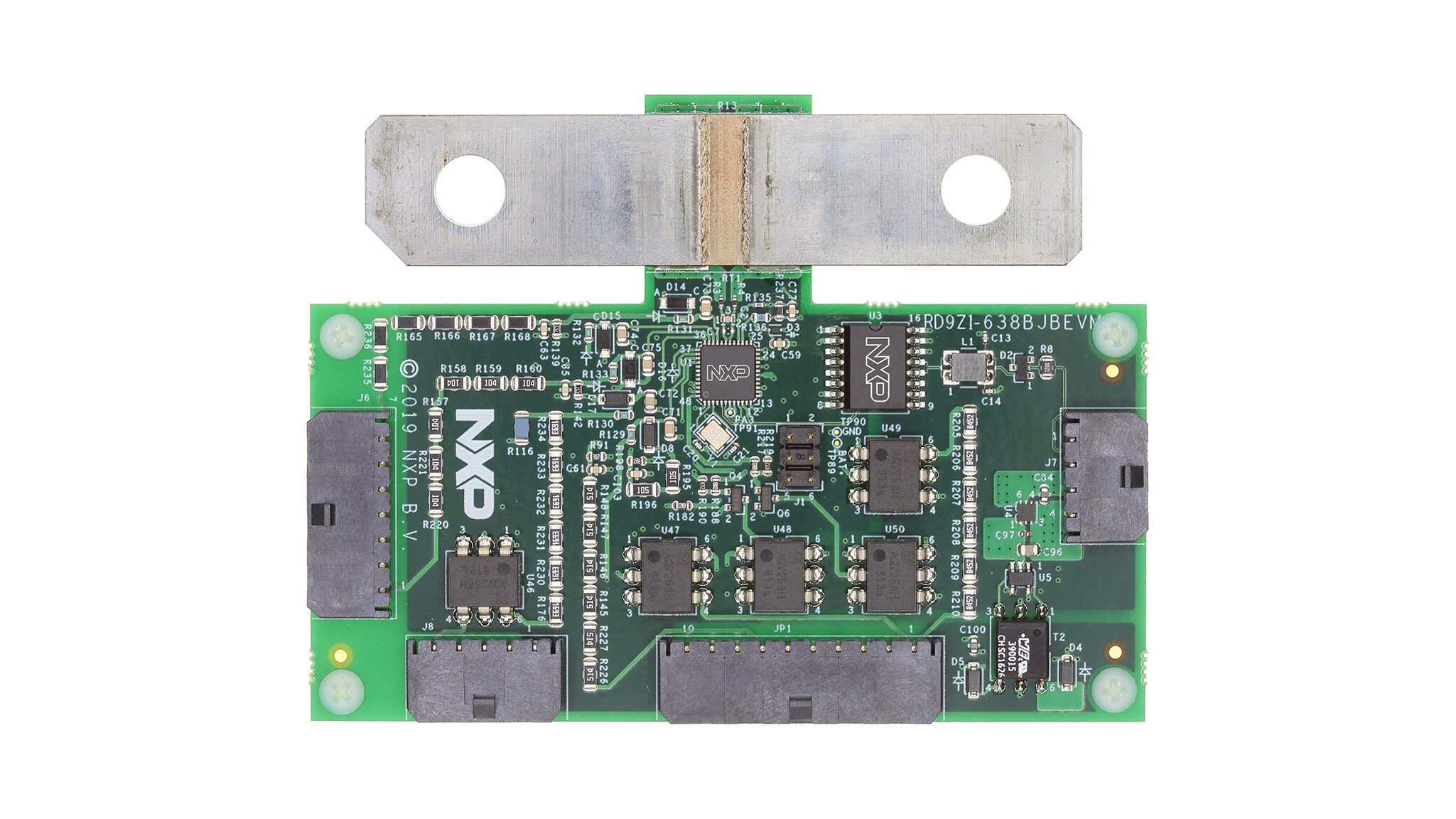

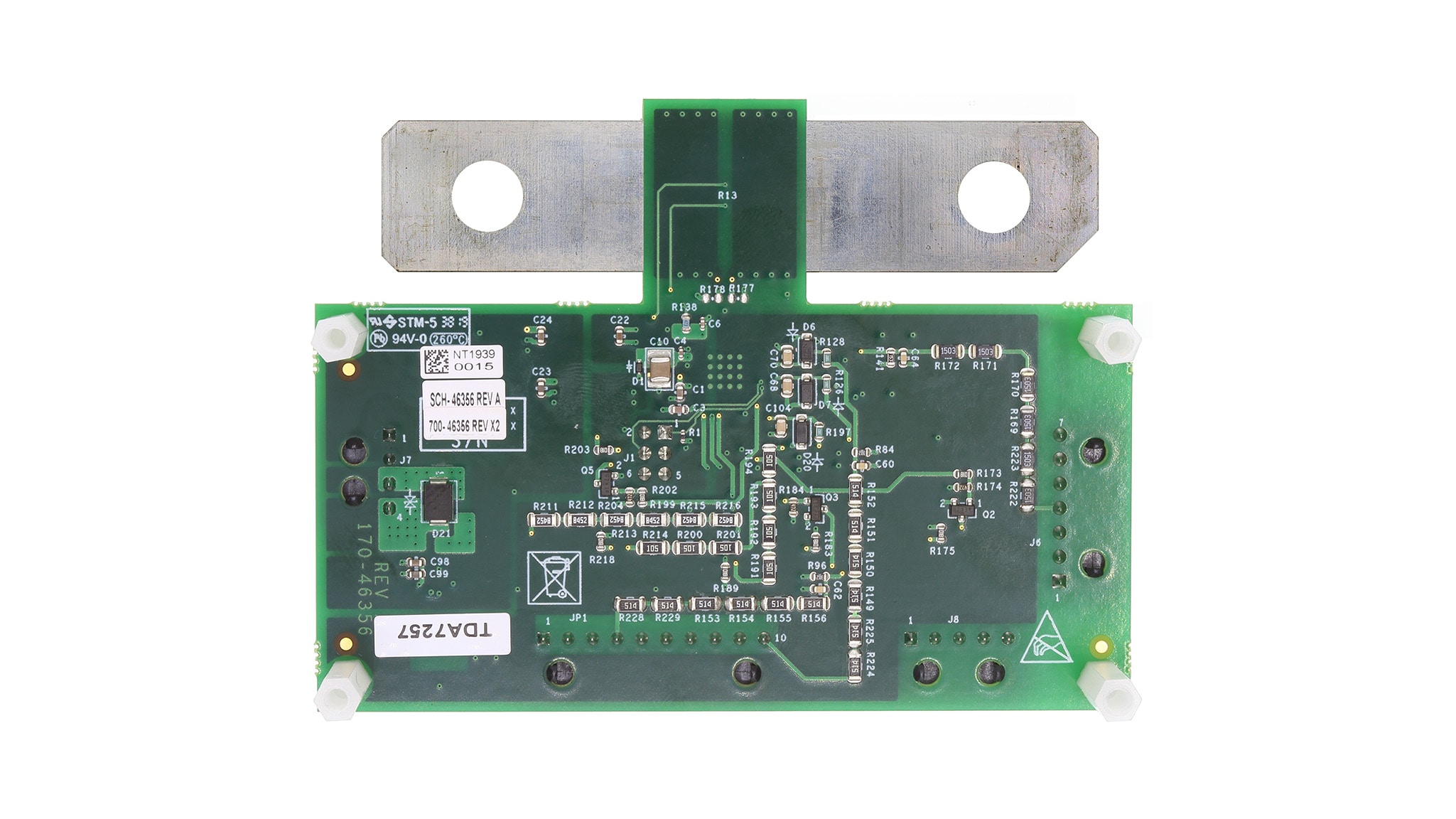

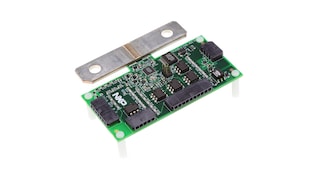

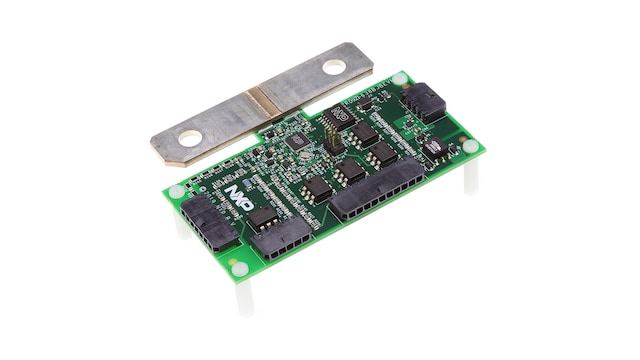

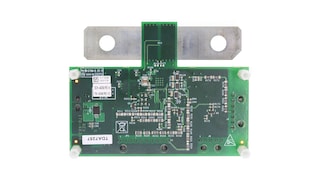

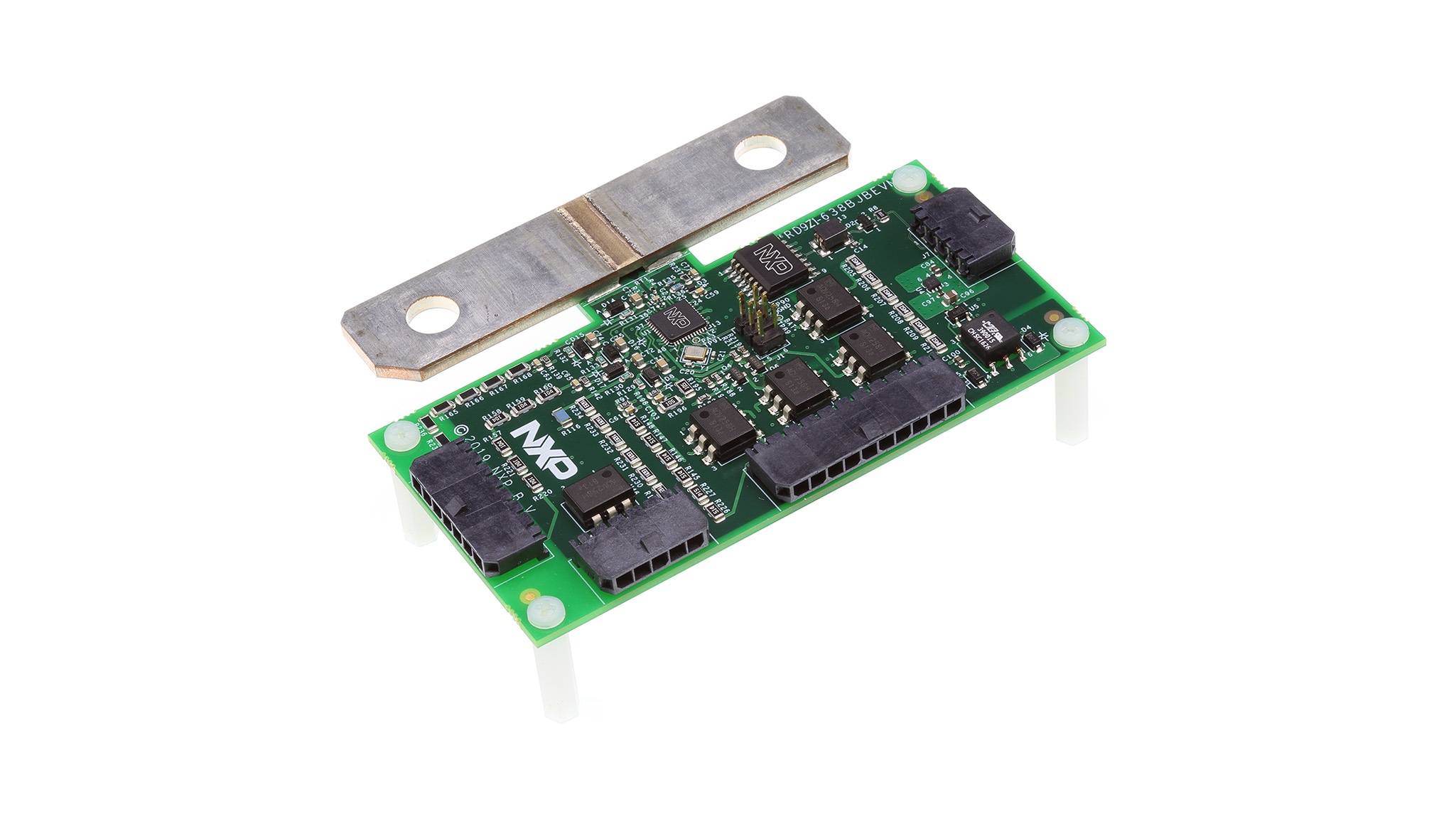

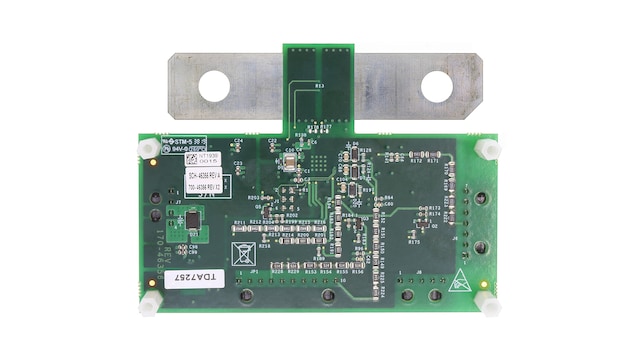

The RD9Z1-638BJBEVM is a hardware tool for evaluation and development and is ideal for rapid prototyping of high voltage battery junction box (HV-BJB) in electronic vehicles. This board evaluates the features of the RD9Z1-638BJBEVM device and allows the user to connect to the power distribution unit (PDU) for voltage, current, temperature sensing and the contactor status diagnostic.

The RD9Z1-638BJBEVM reference design can help accelerate your project development. It is a flexible, standalone function board with high integration, a smaller size and e-car and e-bus compatibility.

框图

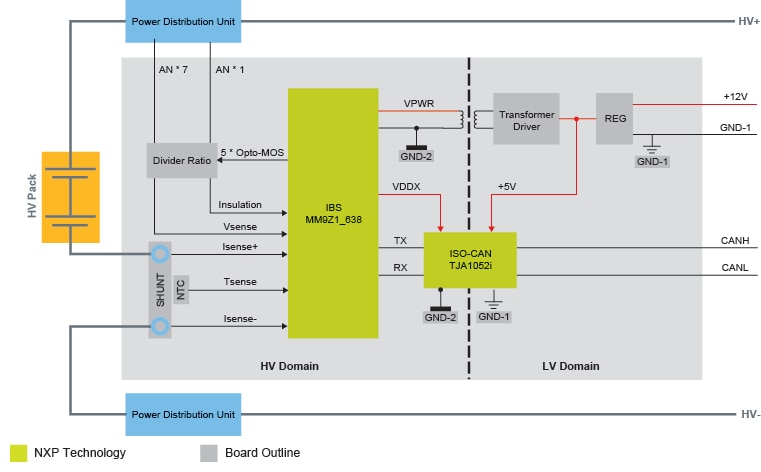

RD9Z1-638BJBEVM Block Diagram

RD9Z1-638BJBEVM Block Diagram
获取框图PDF

支持的器件

电源管理

电池传感器

接口

具有灵活数据传输速率的CAN

  • TJA1052IT: 电气隔离的高速CAN收发器

Features

General

  • Power supply input from 5 V to 12 V
  • Up to seven voltage sensing channels for high voltage measurement
  • One current sensing channel to measure the charge current and discharge current
  • One temperature sensing channel to measure shunt resistor temperature for calibration
  • Integrated insulation resistance measurement
  • One isolated CAN communication channel to BMU/VCU

购买选项

RD9Z1-638BJBEVM-Image

点击展开

  • RD9Z1-638BJBEVM
    正常供应

  • High Voltage Battery Junction Box Reference Design.

  • Kit Contains:

    • Evaluation board in an anti-static bag
    • Cables
  • CNY 6,643.38
  • 数量为 1
    • 供货情况: 现货
    • 库存: 6
    • 配送: 正常情况下 1-2个工作日内发货
