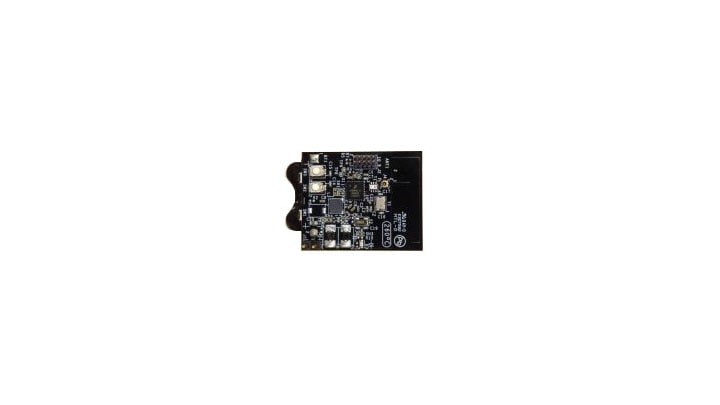

Bluetooth® Low Energy Beacon Reference Design

BLUETOOTH-BEACON

滚动图片以放大

The Bluetooth low energy beacon reference design is a compact form factor, open source design, which can be used with the popular beacon profiles such as iBeacon, Eddystone, and custom NXP® beacon profile. The Bluetooth Low Energy Beacon reference design is powered by the KW30Z system on-chip (SoC), which includes an Arm® Cortex™-M0+ processor together with a 2.4 GHz radio for Bluetooth Low Energy.

Note: QN9090/30 is preferred for any new Bluetooth LE design. No new software releases planned

框图

Bluetooth Beacon

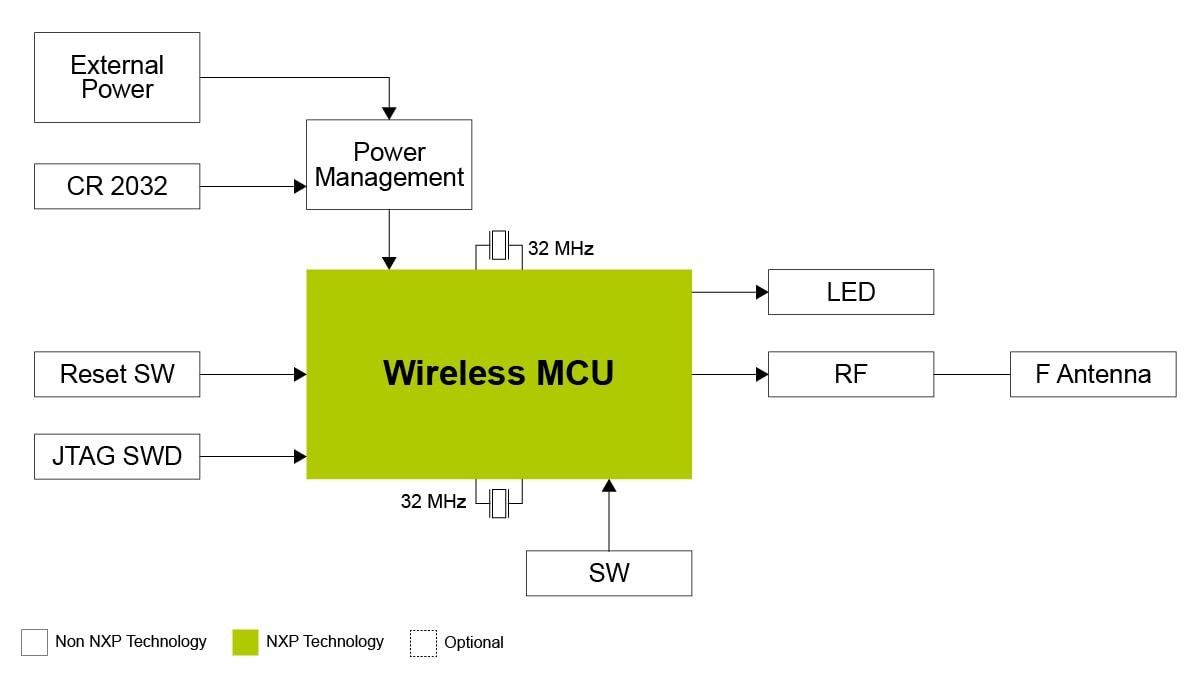

BLE Beacon Reference Design Block Diagram
获取框图PDF

支持的器件

无线连接

低功耗蓝牙

  • KW30Z: Kinetis® KW30Z-2.4 GHz Bluetooth Low Energy (BLE 4.1)微控制器，基于Arm® Cortex®-M0+内核

Features

Compatibility

  • Complete suite of software with the firmware for Bluetooth low energy stack, iBeacon and custom beacon firmware, Android™ and iOS apps

购买选项

USB-KW40Z-Image

点击展开

  • USB-KW40Z
    正常供应

  • USB Dongle, Kinetis W MCU, KW40Z, KW30Z, KW20Z.

  • Kit contains:

    • USB-KW40Z packet sniffer/dongle
    • Quick Start Guide
  • 数量为 1
从分销商处购买
FRDM-KW40Z-Image

点击展开

  • FRDM-KW40Z
    正常供应

  • Freedom Development boards for Kinetis KW20Z, KW30Z and KW40Z MCUs.

  • Kit contains:

    • 2 FRDM-KW40Z Freedom development boards
    • Quick Reference Card
    • 2 USB cables
  • 数量为 1
从分销商处购买
