MPC5604P StarterTRAK (开发套件)

TRK-MPC5604P 正常供应

滚动图片以放大

StarterTRAK is a low-cost development kit based on the NXP® MPC5604P that enables rapid prototyping and tool reuse.

The NXP MPC560xP ICs are a family of powerful 32-bit MCUs for automotive chassis and safety applications and designs where enhanced motor control capability is required.

产品详情

支持的器件

处理器和微控制器

超高可靠性的MPC56xx MCU

  • MPC560xP: 超可靠的MPC560xP MCU，适用于汽车和工业安全应用

接口

汽车LIN解决方案

  • MC33905: 带高速CAN和LIN的第二代SBC

特征

微控制器

  • 采用144LQFP封装的MPC5604P微控制器

数据连接

  • SCI串行通信接口
  • Connector to BLDC-motorboard
  • CAN和LIN接口

调试

  • 使用MPC9S08JM微控制器、通过开源OSBDM电路进行板载JTAG连接
  • MCZ3390S5EK系统基础芯片具有高级电源管理和集成CAN收发器

用户组件

  • 与电位计连接的模拟接口
  • 高能效LED

购买选项

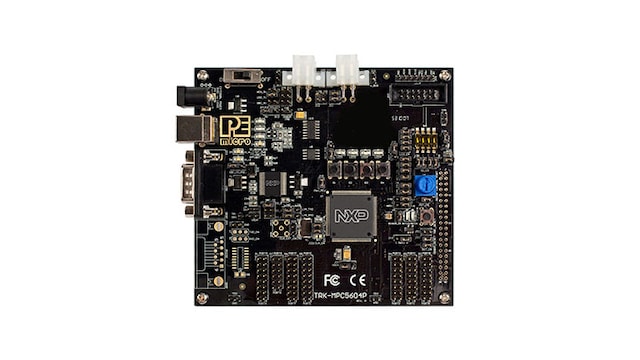

TRK-MPC5604P-Image

点击展开

  • TRK-MPC5604P
    正常供应

  • StarterTRAK Dev Kit for Qorivva MPC5604P, SCI, CAN and LIN interface, connector to BLDC-motorboard.

    • TRK-MPC5604P 电路板
    • TRK-MPC5604P DVD-ROM(包括CodeWarrior软件)
    • USB A-B线缆
    • 恩智浦保修卡
    • 快速入门指南
    • 用户手册
  • $149.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
