使用GD3162栅极驱动和三菱SiC功率模块(CTF700CJ3D130)的三相逆变器参考设计

RDGD3162MITEVM

滚动图片以放大

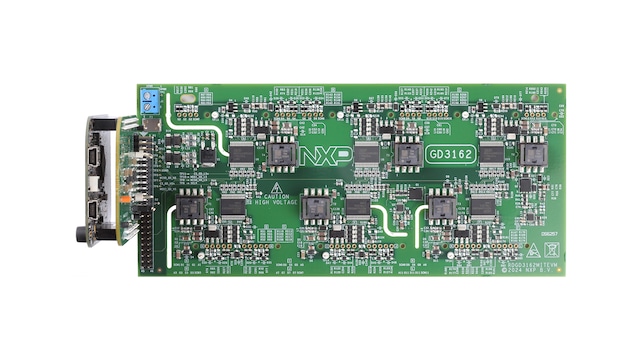

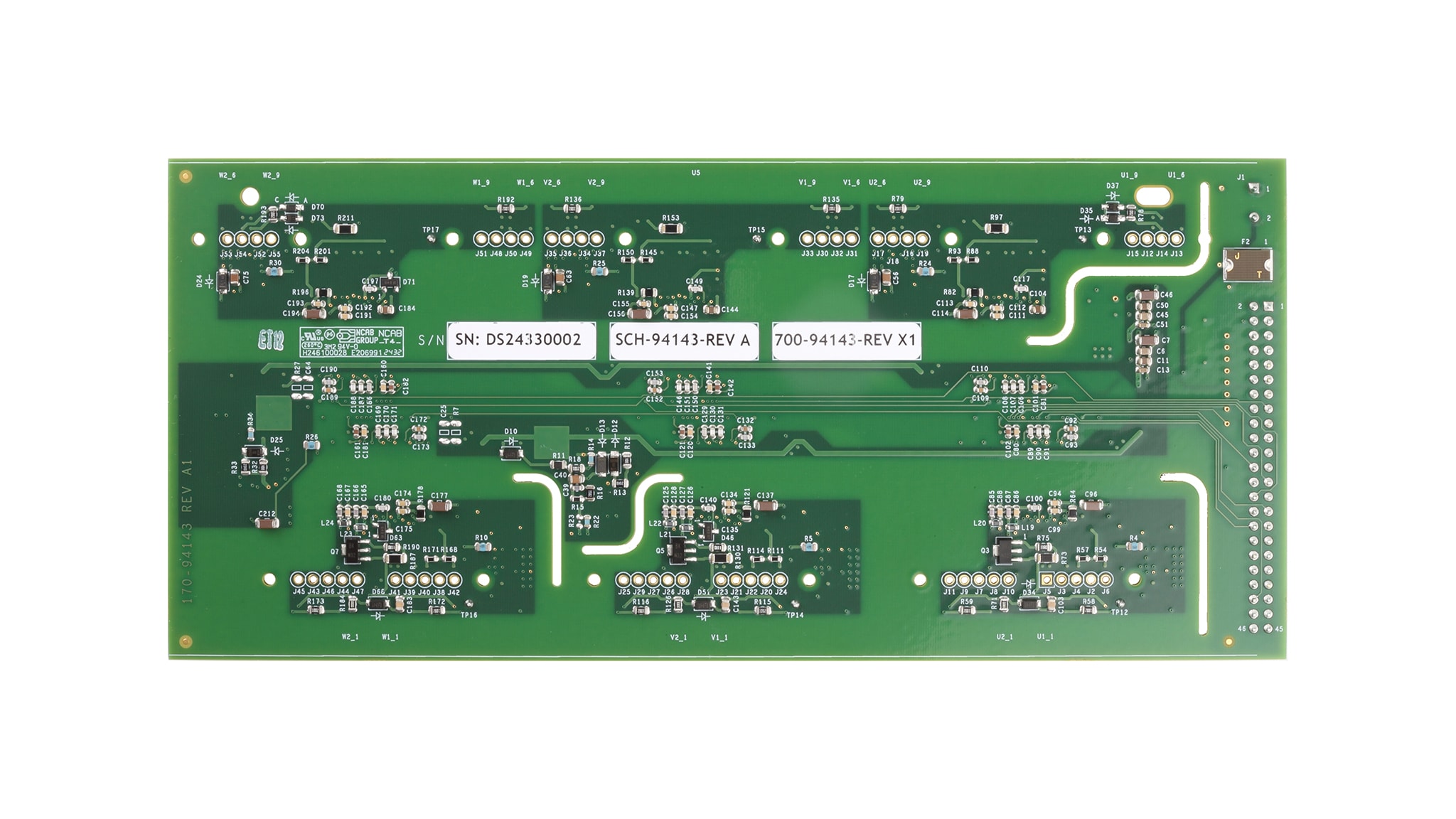

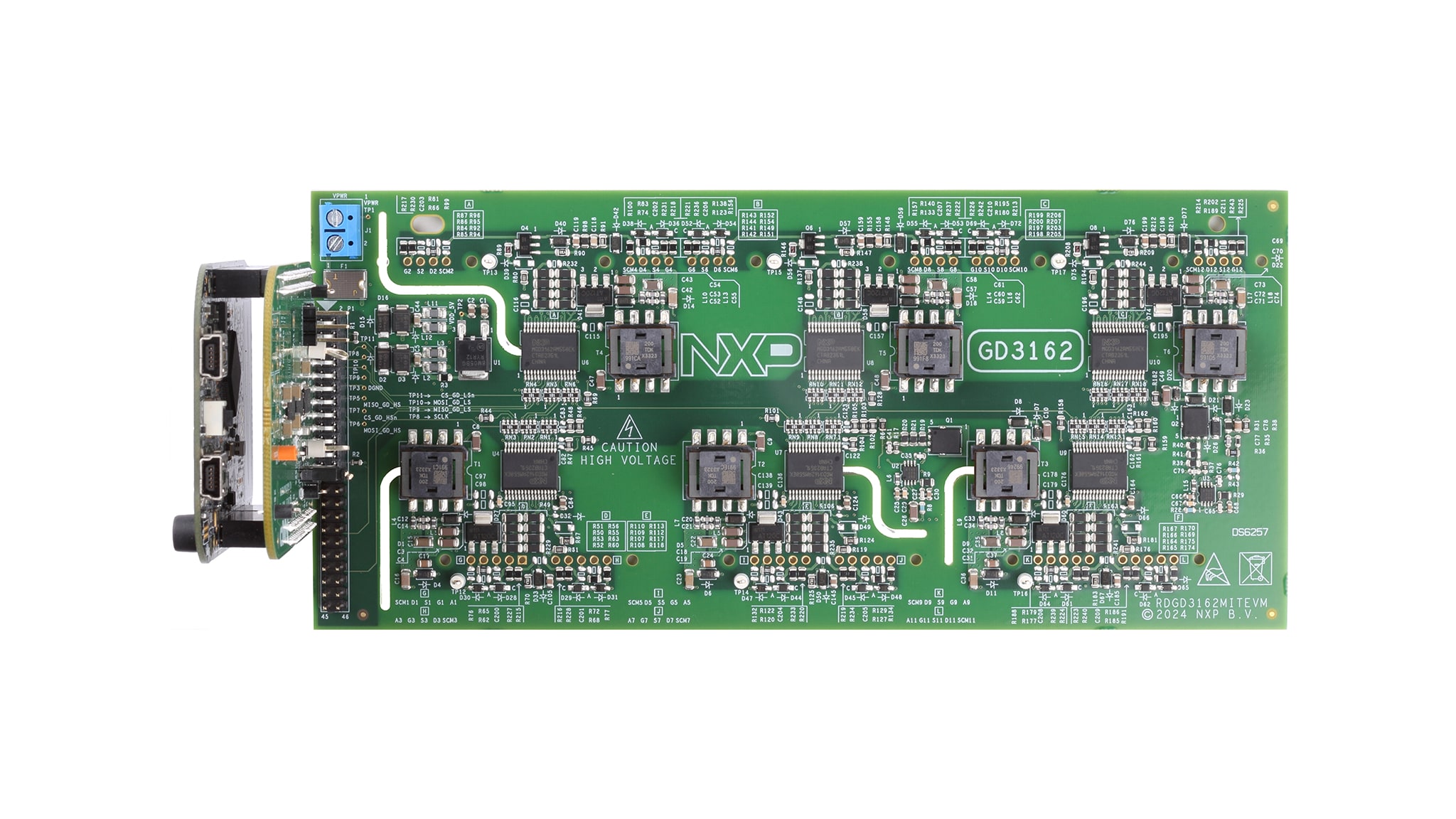

RDGD3162MITEVM三相逆变器是一种功能性硬件功率逆变器参考设计，旨在为开发符合ASIL D安全级别的高压、大功率电动汽车牵引电机逆变器提供基础。该逆变器兼容三菱CTF700CJ3D130 SiC功率模块。

框图

选择框图:

EV-POWEREVBHD2

EV-POWEREVBHD2 Block Diagram

GD3162

GD3162 Block Diagram
获取框图PDF

支持的器件

电源管理

动力和发动机控制

  • GD3162: 具有动态栅极强度控制的先进高压隔离栅极驱动器

特性

板

  • 兼容三菱SiC功率模块(CTF700CJ3D130)
  • 集成式反激电源

GD3162

  • 面向IGBT和SiC功率模块的高级单通道栅极驱动器
  • 提供DESAT和电流感测短路保护
  • 可调节动态栅极强度
  • 可通过菊花链配置SPI

购买选项

RDGD3162MITEVM-Image

点击展开

  • RDGD3162MITEVM
    正常供应

  • 3 Phase Inverter Reference Design Using the GD3162 Gate Drive Devices with Mitsubishi® SiC Power Module.

  • 套件包含：

    • 完成组装和测试的RDGD3162MITEVM板(装有5.0V兼容栅极驱动的三相逆变器)，装在防静电袋中
    • KITGD316xTREVB 3.3V至5.0V转换器，带微型‑USB电缆的FRDM-KL25Z MCU板
    • 快速入门指南
  • $462.50 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
