15 W AUTOSAR® Wireless Charging Transmitter

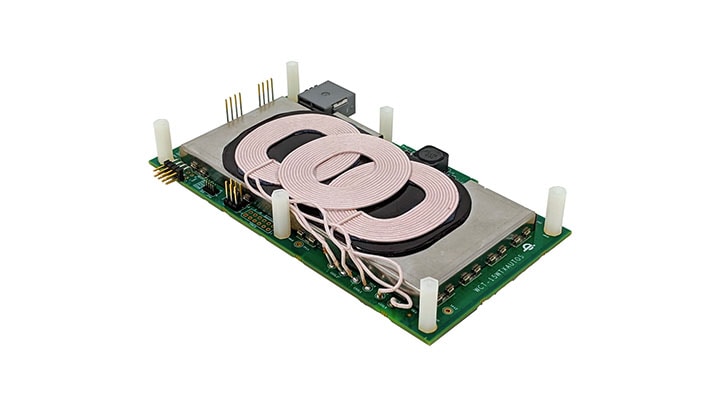

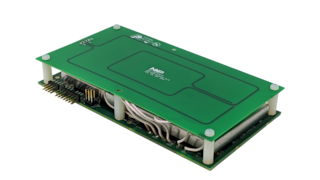

The NXP® 15 W multi-coil transmitter reference platform is designed for AUTOSAR in-vehicle wireless charging applications based on the NXP MWCT101xS controller IC family. The platform uses auto grade components and other vital automotive functions including AUTOSAR software and drivers to ensure the system can be seamlessly integrated. Complies with the Wireless Power Consortium's latest Qi® specification and is certified as a MP-A9 transmitter type.
产品详情

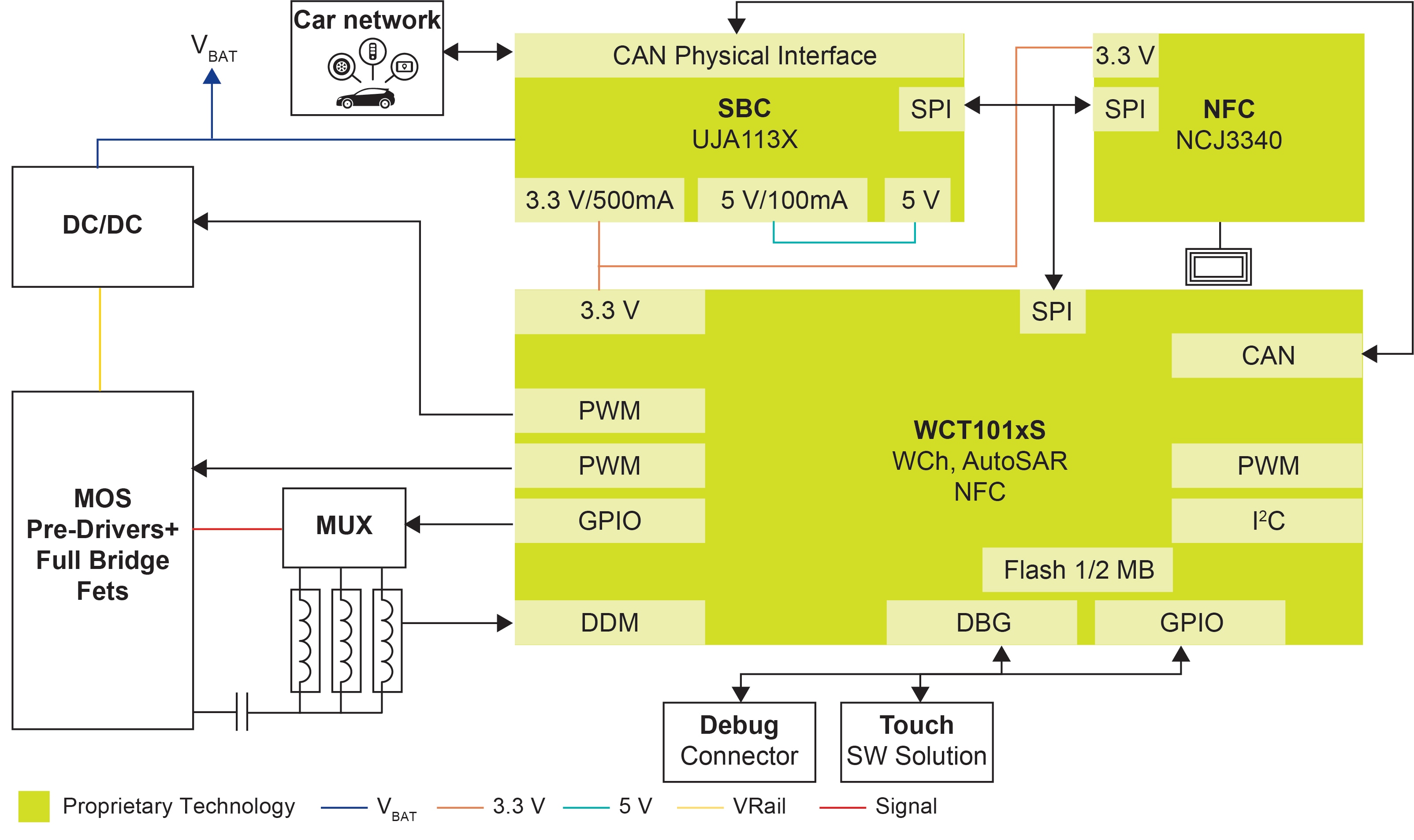

框图
支持的器件
安全和身份验证
汽车安全门禁
- NCF3340AHN: 带NCI接口的汽车级NFC控制器
Features
- Free positioning (multi coil)
- On chip digital demodulation (reduced BOM)
- Secure firmware updates in the field
- Fixed frequency rail voltage control (better EMC)
- Q-factor and power loss FOD methods
- Key fob and AM band interference avoidance
- AEC-Q100 grade 2 certification
- Temperature sensing
- CAN, LIN interfaces
-
Wireless Power Standard
- Qi 1.2.4
-
Power Profile
- EPP (15 W)
-
Transmitter Type
- MP-A9 (all types supported)
-
Operating Frequency
- 127.7 kHz
-
Safety
- Foreign objects detection
-
Efficiency
- 75%
-
Device
- MWCT101xS
-
Memory
- 512/1024/2048 kB
-
CAN
- CAN-FD
-
Safety
- NFC card detection
-
Connectivity
- Bluetooth®/Wi-Fi® pairing
-
Convenience
- Engine start function, personalization
