728-960 MHz，2.5 W平均值，28 V单W-CDMA LDMOS宽带射频集成功率放大器

产品详情

特征

提供串联等效大信号阻抗参数和共源S参数
片上匹配(50 Ohm隔直流输入)
集成静态电流温度补偿，具有启用/禁用功能
集成的ESD保护
专为数字预失真纠错系统而设计
为Doherty应用进行了优化
可耐225°C高温的塑料封装
符合RoHS规范

RF Performance Tables

驱动器应用 - 900 MHz

典型单载波W-CDMA性能：V_DD = 28 V，I_DQ1A = I_DQ1B = 29 mA，I_DQ2A = I_DQ2B = 111 mA，输出功率 = 2.5 W平均值，IQ幅度削峰，信道带宽 = 3.84 MHz，输入信号PAR = 7.5 dB @ 0.01% CCDF。

频率	G_ps (dB)	功率附加效率 (%)	ACPR (dBc)
920 MHz	36.3	17.0	–50.2
940 MHz	36.3	17.0	–50.6
960 MHz	36.1	16.9	–50.5

1 dB压缩点时的典型输出功率 ≃ 25 W连续波

驱动器应用 - 700 MHz

典型单载波W-CDMA性能：V_DD = 28 V，I_DQ1A = I_DQ1B = 29 mA，I_DQ2A = I_DQ2B = 111 mA，输出功率 = 2.5 W平均值，IQ幅度削峰，信道带宽 = 3.84 MHz，输入信号PAR = 7.5 dB @ 0.01% CCDF。

频率	G_ps (dB)	功率附加效率 (%)	ACPR (dBc)
728 MHz	36.9	16.5	–48.1
748 MHz	36.8	16.9	–48.9
768 MHz	36.5	17.1	–50.5

文档

快速参考恩智浦文档类别.

10 文件

紧凑列表

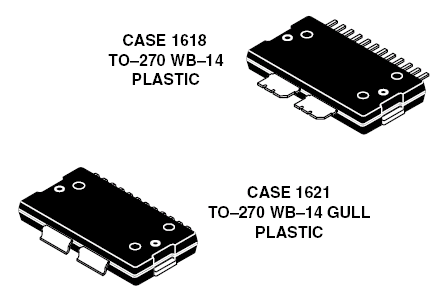

98ASA10650D, TO, 17.65x9.25x2.59, Pitch 0.36, 14 Pins[SOT1720-2]

PDFMar 18, 2016版本更新 B
98ASA10653D, TO, 17.6x9.3x2.59, Pitch 1.02, 14 Pins[SOT1720-3]

PDFFeb 26, 2016版本更新 B

Thermal Characterization Methodology of RF Power Amplifiers - Application Note[AN1955]

PDFJul 11, 2024版本更新 2
Effective Small Cell Solutions for MIMO Radios[AN5296]

PDFJan 15, 2017版本更新 0
AN1907 Solder Reflow Attach Method for High Power RF Devices in Over-Molded Plastic Packages[AN1907]

PDFMay 13, 2009版本更新 3
Clamping of High Power RF Transistors and RFICs in Over-Molded Plastic Packages[AN3789]

PDFMar 12, 2009版本更新 0
Quiescent Current Control for the RF Integrated Circuit Device Family - AN1987[AN1987]

PDFMay 12, 2004版本更新 1
Quiescent Current Control for the RF Integrated Circuit Device Family - AN1977[AN1977]

PDFOct 9, 2003版本更新 0

MD8IC925N 728-960 MHz, 2.5 W Avg., 28 V Data Sheet[MD8IC925N]

PDFSep 8, 2016版本更新 1

Advances in Airfast RFICs White Paper[AIRFASTWBFWP]

PDFMay 15, 2015版本更新 0
