OM13029
-
EA LPC4088 Eval Board.
- 1个LPC4088 OEM电路板
- 1个OEM基板
- 1根USB线缆，A型转mini-B
- 1个带麦克风的耳机
LPC4088开发套件

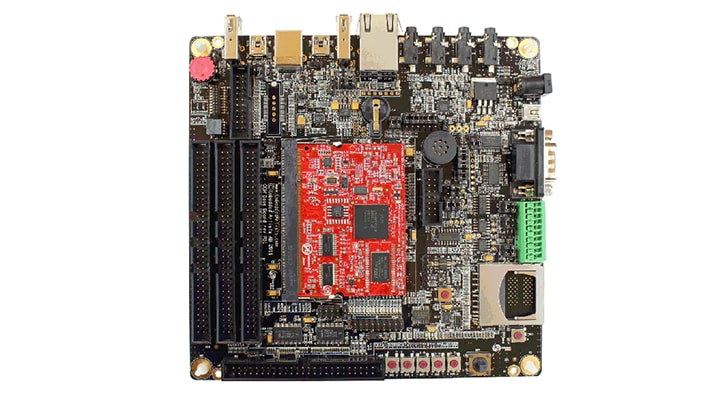

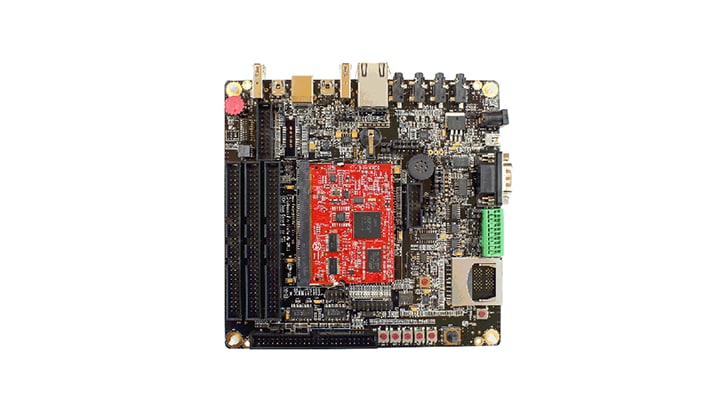

The LPC4088 OEM Board from Embedded Artists is equipped with NXP®'s Cortex-M4 based LPC4088 microcontroller suitable for a wide range of applications that requires advanced communication and high-quality graphics displays. The kit comprises a plug-in module (the “OEM board”) with the LPC4088 microcontroller and memory, and a baseboard which provides access to the microcontroller’s rich set of peripherals. This kit is ideal for engineers who want to fully explore and prototype with the LPC4088.
产品详情
支持的器件
处理器和微控制器
LPC4000 Cortex-M4
- LPC4088FBD144: 基于Arm® Cortex®-M4内核的32位中端微控制器 (MCU)
- LPC4088FBD208: 基于Arm® Cortex®-M4内核的32位中端微控制器 (MCU)
- LPC4088FET180: 基于Arm® Cortex®-M4内核的32位中端微控制器 (MCU)
- LPC4088FET208: 基于Arm® Cortex®-M4内核的32位中端微控制器 (MCU)
- LPC4072FET80: 基于Arm® Cortex®-M4内核的32位中端微控制器 (MCU)
- LPC4074FBD144: 32位Arm® Cortex®-M4 MCU；高达512 kB闪存；96 kB SRAM；USB设备/主机/OTG；以太网；EMC；SPIFI
- LPC4074FBD80: 32位Arm® Cortex®-M4 MCU；高达512 kB闪存；96 kB SRAM；USB设备/主机/OTG；以太网；EMC；SPIFI
- LPC4076FBD144: 基于Arm® Cortex®-M4内核的32位中端微控制器 (MCU)
- LPC4076FET180: 基于Arm® Cortex®-M4内核的32位中端微控制器 (MCU)
- LPC4078FBD100: 32位Arm® Cortex®-M4 MCU；高达512 kB的闪存、96 kB SRAM；USB设备/主机/OTG、以太网、EMC、SPIFI
- LPC4078FBD144: 32位Arm® Cortex®-M4 MCU；高达512 kB的闪存、96 kB SRAM；USB设备/主机/OTG、以太网、EMC、SPIFI
- LPC4078FBD208: 32位Arm® Cortex®-M4 MCU；高达512 kB的闪存、96 kB SRAM；USB设备/主机/OTG、以太网、EMC、SPIFI
- LPC4078FBD80: 32位Arm® Cortex®-M4 MCU；高达512 kB的闪存、96 kB SRAM；USB设备/主机/OTG、以太网、EMC、SPIFI
- LPC4078FET180: 32位Arm® Cortex®-M4 MCU；高达512 kB的闪存、96 kB SRAM；USB设备/主机/OTG、以太网、EMC、SPIFI
- LPC4078FET208: 32位Arm® Cortex®-M4 MCU；高达512 kB的闪存、96 kB SRAM；USB设备/主机/OTG、以太网、EMC、SPIFI
特征
微控制器
- 程序闪存： 128 MB NAND闪存 + 512 kB内存
- Data Memory 32 MB SDRAM + 96 KB internal SRAM + 4 KB internal EPROM
- 到SDRAM的32位数据总线(16位需特别订购)
- SPIFI存储器：32 MB QSPI闪存
- 以太网：100/10M以太网接口，基于SMSC LAN8720以太网物理层
- CPU为12 MHz晶振，RTC为32.768 kHz晶振
- 200位置扩展接头(根据SODIMM标准定义)，0.6 mm间距
- 缓冲的32位数据总线
Cortex-M4 LPC4088
存储器
- 外部存储器总线上的并行NOR闪存
- 外部存储器总线上的16位寄存器和LED
数据连接
- USB1：OTG或主机接口和连接器
- USB2：器件或主机接口和连接器
传感器
- 3-axis accelerometer (I2C connected)
- LM75 temperature sensor (I2C connected)
音频
- I2S audio codec (mic in, line in, line out, headphone out)
- Speaker output on analog output from OEM Board, or from I2S audio codec
支持
- LCD expansion connector with control signals for touchscreen interface
- 提供恩智浦JN5148射频模块(前身为Jennic)接口(未含射频模块)
尺寸
- 适合OEM电路板的200位置、0.6mm间距的SODIMM接头
- 提供所有OEM电路板信号的扩展连接器
- 以太网连接器(RJ45)
- CAN接口和连接器(为第二个CAN接口而设置)
- MMC/SD接口和连接器
- RS422/485接口和连接器
- SWD/JTAG连接器、跟踪连接器和面向ETM连接器的焊板
- Serial Expansion Connector, 14-pos connector with UART/I2C/SPI/GPIO pins
- ALARM输出时面向RTC和LED的可选纽扣电池 (未含纽扣电池)
- 5键操纵杆，5个按键
- 9 LEDs (8 via I2C and one on ISP-ENABLE)
- 模拟输入微调电位计
- UART #0 (FT232R)上的USB转串行桥接和ISP功能
- Reset push button and LED
