NXQ1TXH5 plugin board

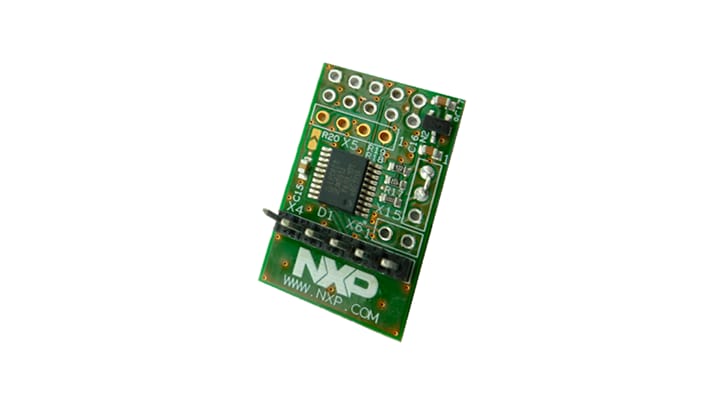

The NXQ1TXH5DB1355 is a debugging board that can be used during the development of applications with the NXQ1TXH5 one chip wireless charging IC.
The board is connected to the I²C interface of the NXQ1TXH5 and communicates to a computer via the UART connector.
产品详情
支持的器件
电源管理
无线电源
- NXQ1TXH5: One-Chip 5 V Qi Wireless Transmitter
特征
Debug
- Readout configuration
- Readout Qi messages
- Readout chip temperature
- Readout calculated FOD value
- Readout switching frequency
重要参数
Key Parametrics
| Symbol | Parameter | Value |
|---|---|---|
| VSUP | Supply voltage | 5 V |
| ISUP | Supply current | 3.5 mA |
| Bd | UART baud rate | 115200 |
| Tambient | Ambient temperature | 0 °C to 85 °C |
| L x B x H | Board dimensions | 28 mm x 17 mm x 10mm |
