15 W无线充电发射器IC

MWCT1x1x
正常供应
可编程无线充电解决方案

点击播放视频

恩智浦 15 W无线充电IC可提供实施无线充电发送器解决方案所需的全部控制器功能。

  • 借助优化的硬件和软件平台，我们的发送器IC能够实施和控制功率传输，监控和管理系统整体状态，提供异物检测，温度和系统效率监控等功能。
  • 标准解决方案是一个单机版的低成本15瓦发射器实施方案；高端解决方案提供额外的硬件和软件资源进行应用定制
  • 所有解决方案全面符合无线充电联盟(WPC)的最新规范

产品详情

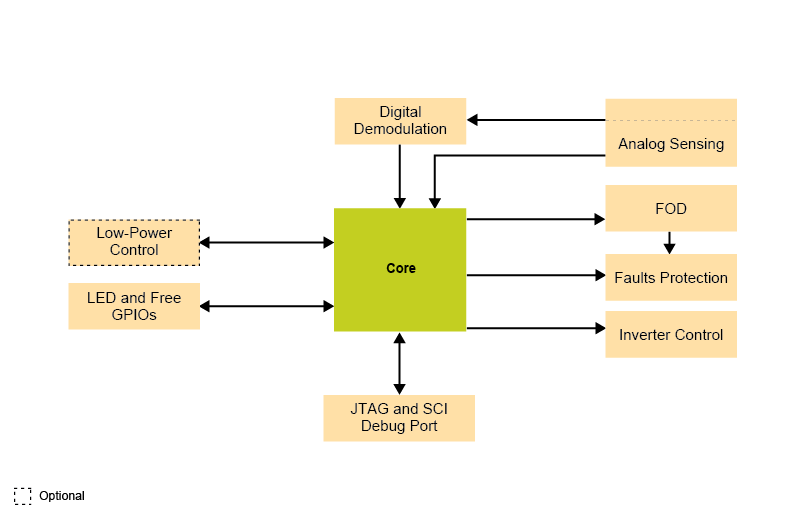

框图

MWCT1x1x Block Diagram

MWCT1x1x Block Diagram
获取框图PDF

特征

  • 符合无线充电联盟(WPC)的最新规范
  • 功率传输效率超过75%
  • 优化的异物检测算法
  • 支持大多数15 W单线圈应用，支持所有线圈类型
  • 片上数字解调，可降低物料清单成本
  • 运行和待机功耗较低
  • 高级产品MWCT1111可提供额外的设计灵活性，帮助打造独一无二的产品
  • 易于使用的调试和配置工具，可加速产品开发

购买/参数

3 结果

包含 1 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

封装类型

封装端接数

GPIOs

On-Chip Authentication

AEC-Q100 compliant

MWCT1011CFM
数据手册

正常供应

10K @ CNY16.51

HVQFN32

32

11

N

N

MWCT1013VLH
数据手册

正常供应

10K @ CNY39.78

LQFP64

64

—

—

—

MWCT1111CLH
数据手册

正常供应

10K @ CNY17.45

LQFP64

64

54

N

N

N true 0 PSPMWCT1x1xzh 13 勘误表 Errata t522 2 参考手册 Reference Manual t877 2 应用笔记 Application Note t789 2 数据手册 Data Sheet t520 3 用户指南 User Guide t792 2 简介 Fact Sheet t523 2 zh zh zh 数据手册 Data Sheet 3 1 1.2 English the WCT data sheets are always in this format The WCT101x is a wireless power transmitter controller that integrates all required functions for WPC “Qi” compliant wireless power transmitter design. It is an intelligent device that works with the NXP touch sensing technology or uses periodically analog PING to detect a mobile device for charging while gaining super low standby power. Once the mobile device is detected, the WCT101x controls the power transfer by adjusting the rail voltage, the phase difference, or the duty cycle of the power stage according to message packets sent by the mobile device. 1493887028570718761918 PSP 2.3 MB None None documents None 1493887028570718761918 /docs/en/data-sheet/WCT101XDS.pdf 2274237 /docs/en/data-sheet/WCT101XDS.pdf WCT101XDS documents N N 2017-05-04 WCT101XDS Datasheet /docs/en/data-sheet/WCT101XDS.pdf /docs/en/data-sheet/WCT101XDS.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en May 27, 2019 980000996212993340 Data Sheet Y N WCT101XDS Datasheet 2 0 English 1474269323402737577026 PSP 2.4 MB None None documents None 1474269323402737577026 /docs/en/data-sheet/WCT1011DS.pdf 2414401 /docs/en/data-sheet/WCT1011DS.pdf WCT1011DS documents N N 2016-09-25 MWCT1011DS - Data Sheets /docs/en/data-sheet/WCT1011DS.pdf /docs/en/data-sheet/WCT1011DS.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Sep 1, 2016 980000996212993340 Data Sheet N MWCT1011DS - Data Sheets 3 1.1 English The WCT1012 is a wireless power transmitter controller that integrates all required functions for the WPC “Qi” compliant wireless power transmitter design. It is an intelligent device that works with the NXP touch sensing technology or uses periodically analog PING to detect a mobile device for charging while gaining super low standby power. 1442190760809719615611 PSP 2.1 MB None None documents None 1442190760809719615611 /docs/en/data-sheet/WCT1012DS.pdf 2138004 /docs/en/data-sheet/WCT1012DS.pdf WCT1012DS documents N N 2016-10-31 MWCT1012DS - Data Sheet /docs/en/data-sheet/WCT1012DS.pdf /docs/en/data-sheet/WCT1012DS.pdf Data Sheet N 980000996212993340 2023-07-13 pdf N en Sep 13, 2015 980000996212993340 Data Sheet Y N MWCT1012DS - Data Sheet 参考手册 Reference Manual 2 4 4.1 English This document describes the features, architecture, and programming model of Our MWCT1xxx series of microcontroller. Supports MWCT1000CFM, MWCT1001AVLH, MWCT1101CLH, and MWCT1200CFM 1392356351685700738314 PSP 7.4 MB Registration without Disclaimer None documents Extended 1392356351685700738314 /secured/assets/documents/en/reference-manual/MWCT1XXXRM.pdf 7361743 /secured/assets/documents/en/reference-manual/MWCT1XXXRM.pdf MWCT1XXXRM documents Y N 2016-10-31 MWCT1xxx RM: MWCT1xxx Reference Manual supporting MWCT1000CFM, MWCT1001AVLH, MWCT1011AVLH, MWCT1101CLH, MWCT1111CLH, MWCT1011CFM /webapp/Download?colCode=MWCT1XXXRM&lang_cd=zh /secured/assets/documents/en/reference-manual/MWCT1XXXRM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Sep 18, 2020 500633505221135046 Reference Manual Y N MWCT1xxx RM: MWCT1xxx Reference Manual supporting MWCT1000CFM, MWCT1001AVLH, MWCT1011AVLH, MWCT1101CLH, MWCT1111CLH, MWCT1011CFM 5 1 English This document describes the features, architecture, and programming model of NXP's MWCT1013VLH series of microcontrollers. 1556035797862730074560 PSP 8.1 MB Registration without Disclaimer None documents Extended 1556035797862730074560 /secured/assets/documents/en/reference-manual/MWCT1013VLHRM.pdf 8062146 /secured/assets/documents/en/reference-manual/MWCT1013VLHRM.pdf MWCT1013VLHRM documents Y N 2019-04-23 MWCT1013VLH Reference Manual /webapp/Download?colCode=MWCT1013VLHRM&lang_cd=zh /secured/assets/documents/en/reference-manual/MWCT1013VLHRM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Apr 23, 2019 500633505221135046 Reference Manual Y N MWCT1013VLH Reference Manual 应用笔记 Application Note 2 6 9.0 English Provides Assembly guidelines for QFN and SON packages handling and board mounting. Including recommendations for printed-circuit board (PCB) design, soldering, and rework. NOTE: combined with AN10365. 112GNLnm PSP 9.3 MB None None documents None 112GNLnm /docs/en/application-note/AN1902.pdf 9332633 /docs/en/application-note/AN1902.pdf AN1902 documents N N 2016-10-31 AN1902: Assembly Guidelines for QFN and SON Packages Application Note /docs/en/application-note/AN1902.pdf /docs/en/application-note/AN1902.pdf Application Note N 645036621402383989 2023-06-08 pdf N en Mar 30, 2021 645036621402383989 Application Note Y N AN1902: Assembly Guidelines for QFN and SON Packages Application Note 7 0 English AN5059 This application note describes the migration from A13 topology of wireless charging transmitter reference design made by NXP to the B5 topology of wireless charging. 1421402175551718070427 PSP 415.6 KB None None documents None 1421402175551718070427 /docs/en/application-note/AN5059.pdf 415603 /docs/en/application-note/AN5059.pdf AN5059 documents N N 2015-01-16 AN5059: Migration from A13 to B5 Wireless Charging Transmitter - Application note /docs/en/application-note/AN5059.pdf /docs/en/application-note/AN5059.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 15, 2015 645036621402383989 Application Note N N AN5059: Migration from A13 to B5 Wireless Charging Transmitter - Application note 用户指南 User Guide 2 8 0 English NXP provides the FreeMASTER GUI tool for WCT1012 Medium Power wireless charging solution. The GUI based on the FreeMASTER tool can be used to fine tune the parameters in running state. For the operations of setting up the FreeMASTER connection, see the WCT1012 15W Single Coil TX V3.0 Reference Design System User’s Guide (WCT1012V30SYSUG). 1442384960613698196975 PSP 2.0 MB Registration without Disclaimer None documents Extended 1442384960613698196975 /secured/assets/documents/en/user-guide/WCT1012V30RTDUG.pdf 2021134 /secured/assets/documents/en/user-guide/WCT1012V30RTDUG.pdf WCT1012V30RTDUG documents Y N 2016-10-31 WCT1012 15W Single Coil TX V3.0 Runtime Debugging User’s Guide - User’s Guide /webapp/Download?colCode=WCT1012V30RTDUG&lang_cd=zh /secured/assets/documents/en/user-guide/WCT1012V30RTDUG.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en Sep 15, 2015 132339537837198660 User Guide Y N WCT1012 15W Single Coil TX V3.0 Runtime Debugging User’s Guide - User’s Guide 9 0 English This document describes how to use the 15W medium power wireless charger transmitter WCT_15W1COILTX reference board designed by NXP. The MP Reference solution is compliant with Qi Medium Power 1.2 specification. It is a low-cost reference solution, which can be easily customized through the FreeMASTER GUI tool. 1442385572239732730478 PSP 2.9 MB Registration without Disclaimer None documents Extended 1442385572239732730478 /secured/assets/documents/en/user-guide/WCT1012V30SYSUG.pdf 2888916 /secured/assets/documents/en/user-guide/WCT1012V30SYSUG.pdf WCT1012V30SYSUG documents Y N 2016-10-31 WCT1012 15W Single Coil TX V3.0 Reference Design System User’s Guide - User’s Guide /webapp/Download?colCode=WCT1012V30SYSUG&lang_cd=zh /secured/assets/documents/en/user-guide/WCT1012V30SYSUG.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en Sep 15, 2015 132339537837198660 User Guide Y N WCT1012 15W Single Coil TX V3.0 Reference Design System User’s Guide - User’s Guide 勘误表 Errata 2 10 Dec 2020 English Mask Set Errata for Mask XN33G 1559169572026700154987 PSP 150.1 KB None None documents None 1559169572026700154987 /docs/en/errata/Errata_MWCT10x1.pdf 150132 /docs/en/errata/Errata_MWCT10x1.pdf MWCT1xxx_XN33G1 documents N N 2019-05-29 Mask Set Errata for MWCT1001 and MWCT1011 /docs/en/errata/Errata_MWCT10x1.pdf /docs/en/errata/Errata_MWCT10x1.pdf Errata N 155452329886410597 2023-04-18 pdf N en Mar 18, 2021 155452329886410597 Errata Y N Mask Set Errata for MWCT1001 and MWCT1011 11 Feb 2020 English Mask Set Errata for Mask 2N27E 1585739183216719041917 PSP 194.9 KB None None documents None 1585739183216719041917 /docs/en/errata/MWCT10x3_2N27E.pdf 194914 /docs/en/errata/MWCT10x3_2N27E.pdf MWCT10x3_2N27E documents N N 2020-04-01 Mask Set Errata for Mask 2N27E /docs/en/errata/MWCT10x3_2N27E.pdf /docs/en/errata/MWCT10x3_2N27E.pdf Errata N 155452329886410597 2022-12-07 pdf N en Apr 1, 2020 155452329886410597 Errata Y N Mask Set Errata for Mask 2N27E 简介 Fact Sheet 2 12 1 English 1473896567654718261949 PSP 245.0 KB None None documents None 1473896567654718261949 /docs/en/fact-sheet/MWCT1x1xFS.pdf 245025 /docs/en/fact-sheet/MWCT1x1xFS.pdf MWCT1X1XFS documents N N 2016-11-09 MWCT1011, MWCT1012, MWCT1111 Wireless Charging - Fact Sheet /docs/en/fact-sheet/MWCT1x1xFS.pdf /docs/en/fact-sheet/MWCT1x1xFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Feb 27, 2020 736675474163315314 Fact Sheet Y N MWCT1011, MWCT1012, MWCT1111 Wireless Charging - Fact Sheet 13 2 English The MWCT1012 device is NXP’s solutions for 15 watt single-coil wireless charging transmitter applications. MWCT1012 is the standard offering, featuring a complete system solution to implement the controller functions in a wireless charging transmitter system. MWCT1012 supports any industry compliant 15W single-coil topology, providing a single solution with maximum flexibility. 1417041951471689051346 PSP 164.6 KB None None documents None 1417041951471689051346 /docs/en/fact-sheet/MWCT1012FS.pdf 164639 /docs/en/fact-sheet/MWCT1012FS.pdf MWCT1012FS documents N N 2016-10-31 MWCT1012/MWCT1111 Wireless Charging - Fact Sheet /docs/en/fact-sheet/MWCT1012FS.pdf /docs/en/fact-sheet/MWCT1012FS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Sep 16, 2015 736675474163315314 Fact Sheet Y N MWCT1012/MWCT1111 Wireless Charging - Fact Sheet false 0 MWCT1x1x downloads zh-Hans true 1 Y PSP 勘误表 2 /docs/en/errata/Errata_MWCT10x1.pdf 2019-05-29 1559169572026700154987 PSP 10 Mar 18, 2021 Errata Mask Set Errata for Mask XN33G None /docs/en/errata/Errata_MWCT10x1.pdf English documents 150132 None 155452329886410597 2023-04-18 N /docs/en/errata/Errata_MWCT10x1.pdf Mask Set Errata for MWCT1001 and MWCT1011 /docs/en/errata/Errata_MWCT10x1.pdf documents 155452329886410597 Errata N en None Y pdf Dec 2020 N N Mask Set Errata for MWCT1001 and MWCT1011 150.1 KB MWCT1xxx_XN33G1 N 1559169572026700154987 /docs/en/errata/MWCT10x3_2N27E.pdf 2020-04-01 1585739183216719041917 PSP 11 Apr 1, 2020 Errata Mask Set Errata for Mask 2N27E None /docs/en/errata/MWCT10x3_2N27E.pdf English documents 194914 None 155452329886410597 2022-12-07 N /docs/en/errata/MWCT10x3_2N27E.pdf Mask Set Errata for Mask 2N27E /docs/en/errata/MWCT10x3_2N27E.pdf documents 155452329886410597 Errata N en None Y pdf Feb 2020 N N Mask Set Errata for Mask 2N27E 194.9 KB MWCT10x3_2N27E N 1585739183216719041917 参考手册 2 /secured/assets/documents/en/reference-manual/MWCT1XXXRM.pdf 2016-10-31 1392356351685700738314 PSP 4 Sep 18, 2020 Reference Manual This document describes the features, architecture, and programming model of Our MWCT1xxx series of microcontroller. Supports MWCT1000CFM, MWCT1001AVLH, MWCT1101CLH, and MWCT1200CFM Registration without Disclaimer /secured/assets/documents/en/reference-manual/MWCT1XXXRM.pdf English documents 7361743 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=MWCT1XXXRM&lang_cd=zh MWCT1xxx RM: MWCT1xxx Reference Manual supporting MWCT1000CFM, MWCT1001AVLH, MWCT1011AVLH, MWCT1101CLH, MWCT1111CLH, MWCT1011CFM /secured/assets/documents/en/reference-manual/MWCT1XXXRM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 4.1 Y N MWCT1xxx RM: MWCT1xxx Reference Manual supporting MWCT1000CFM, MWCT1001AVLH, MWCT1011AVLH, MWCT1101CLH, MWCT1111CLH, MWCT1011CFM 7.4 MB MWCT1XXXRM N 1392356351685700738314 /secured/assets/documents/en/reference-manual/MWCT1013VLHRM.pdf 2019-04-23 1556035797862730074560 PSP 5 Apr 23, 2019 Reference Manual This document describes the features, architecture, and programming model of NXP's MWCT1013VLH series of microcontrollers. Registration without Disclaimer /secured/assets/documents/en/reference-manual/MWCT1013VLHRM.pdf English documents 8062146 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=MWCT1013VLHRM&lang_cd=zh MWCT1013VLH Reference Manual /secured/assets/documents/en/reference-manual/MWCT1013VLHRM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 1 Y N MWCT1013VLH Reference Manual 8.1 MB MWCT1013VLHRM N 1556035797862730074560 应用笔记 2 /docs/en/application-note/AN1902.pdf 2016-10-31 112GNLnm PSP 6 Mar 30, 2021 Application Note Provides Assembly guidelines for QFN and SON packages handling and board mounting. Including recommendations for printed-circuit board (PCB) design, soldering, and rework. NOTE: combined with AN10365. None /docs/en/application-note/AN1902.pdf English documents 9332633 None 645036621402383989 2023-06-08 N /docs/en/application-note/AN1902.pdf AN1902: Assembly Guidelines for QFN and SON Packages Application Note /docs/en/application-note/AN1902.pdf documents 645036621402383989 Application Note N en None Y pdf 9.0 N N AN1902: Assembly Guidelines for QFN and SON Packages Application Note 9.3 MB AN1902 N 112GNLnm /docs/en/application-note/AN5059.pdf 2015-01-16 1421402175551718070427 PSP 7 Jan 15, 2015 Application Note AN5059 This application note describes the migration from A13 topology of wireless charging transmitter reference design made by NXP to the B5 topology of wireless charging. None /docs/en/application-note/AN5059.pdf English documents 415603 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5059.pdf AN5059: Migration from A13 to B5 Wireless Charging Transmitter - Application note /docs/en/application-note/AN5059.pdf documents 645036621402383989 Application Note N en None N pdf 0 N N AN5059: Migration from A13 to B5 Wireless Charging Transmitter - Application note 415.6 KB AN5059 N 1421402175551718070427 数据手册 3 /docs/en/data-sheet/WCT101XDS.pdf 2017-05-04 1493887028570718761918 PSP 1 May 27, 2019 Data Sheet the WCT data sheets are always in this format The WCT101x is a wireless power transmitter controller that integrates all required functions for WPC “Qi” compliant wireless power transmitter design. It is an intelligent device that works with the NXP touch sensing technology or uses periodically analog PING to detect a mobile device for charging while gaining super low standby power. Once the mobile device is detected, the WCT101x controls the power transfer by adjusting the rail voltage, the phase difference, or the duty cycle of the power stage according to message packets sent by the mobile device. None /docs/en/data-sheet/WCT101XDS.pdf English documents 2274237 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/WCT101XDS.pdf WCT101XDS Datasheet /docs/en/data-sheet/WCT101XDS.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1.2 N N WCT101XDS Datasheet 2.3 MB WCT101XDS N 1493887028570718761918 /docs/en/data-sheet/WCT1011DS.pdf 2016-09-25 1474269323402737577026 PSP 2 Sep 1, 2016 Data Sheet None /docs/en/data-sheet/WCT1011DS.pdf English documents 2414401 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/WCT1011DS.pdf MWCT1011DS - Data Sheets /docs/en/data-sheet/WCT1011DS.pdf documents 980000996212993340 Data Sheet N en None pdf 0 N N MWCT1011DS - Data Sheets 2.4 MB WCT1011DS N 1474269323402737577026 /docs/en/data-sheet/WCT1012DS.pdf 2016-10-31 1442190760809719615611 PSP 3 Sep 13, 2015 Data Sheet The WCT1012 is a wireless power transmitter controller that integrates all required functions for the WPC “Qi” compliant wireless power transmitter design. It is an intelligent device that works with the NXP touch sensing technology or uses periodically analog PING to detect a mobile device for charging while gaining super low standby power. None /docs/en/data-sheet/WCT1012DS.pdf English documents 2138004 None 980000996212993340 2023-07-13 N /docs/en/data-sheet/WCT1012DS.pdf MWCT1012DS - Data Sheet /docs/en/data-sheet/WCT1012DS.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1.1 N N MWCT1012DS - Data Sheet 2.1 MB WCT1012DS N 1442190760809719615611 用户指南 2 /secured/assets/documents/en/user-guide/WCT1012V30RTDUG.pdf 2016-10-31 1442384960613698196975 PSP 8 Sep 15, 2015 User Guide NXP provides the FreeMASTER GUI tool for WCT1012 Medium Power wireless charging solution. The GUI based on the FreeMASTER tool can be used to fine tune the parameters in running state. For the operations of setting up the FreeMASTER connection, see the WCT1012 15W Single Coil TX V3.0 Reference Design System User’s Guide (WCT1012V30SYSUG). Registration without Disclaimer /secured/assets/documents/en/user-guide/WCT1012V30RTDUG.pdf English documents 2021134 None 132339537837198660 2023-06-18 Y /webapp/Download?colCode=WCT1012V30RTDUG&lang_cd=zh WCT1012 15W Single Coil TX V3.0 Runtime Debugging User’s Guide - User’s Guide /secured/assets/documents/en/user-guide/WCT1012V30RTDUG.pdf documents 132339537837198660 User Guide N en Extended Y pdf 0 Y N WCT1012 15W Single Coil TX V3.0 Runtime Debugging User’s Guide - User’s Guide 2.0 MB WCT1012V30RTDUG N 1442384960613698196975 /secured/assets/documents/en/user-guide/WCT1012V30SYSUG.pdf 2016-10-31 1442385572239732730478 PSP 9 Sep 15, 2015 User Guide This document describes how to use the 15W medium power wireless charger transmitter WCT_15W1COILTX reference board designed by NXP. The MP Reference solution is compliant with Qi Medium Power 1.2 specification. It is a low-cost reference solution, which can be easily customized through the FreeMASTER GUI tool. Registration without Disclaimer /secured/assets/documents/en/user-guide/WCT1012V30SYSUG.pdf English documents 2888916 None 132339537837198660 2023-06-18 Y /webapp/Download?colCode=WCT1012V30SYSUG&lang_cd=zh WCT1012 15W Single Coil TX V3.0 Reference Design System User’s Guide - User’s Guide /secured/assets/documents/en/user-guide/WCT1012V30SYSUG.pdf documents 132339537837198660 User Guide N en Extended Y pdf 0 Y N WCT1012 15W Single Coil TX V3.0 Reference Design System User’s Guide - User’s Guide 2.9 MB WCT1012V30SYSUG N 1442385572239732730478 简介 2 /docs/en/fact-sheet/MWCT1x1xFS.pdf 2016-11-09 1473896567654718261949 PSP 12 Feb 27, 2020 Fact Sheet None /docs/en/fact-sheet/MWCT1x1xFS.pdf English documents 245025 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/MWCT1x1xFS.pdf MWCT1011, MWCT1012, MWCT1111 Wireless Charging - Fact Sheet /docs/en/fact-sheet/MWCT1x1xFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N N MWCT1011, MWCT1012, MWCT1111 Wireless Charging - Fact Sheet 245.0 KB MWCT1X1XFS N 1473896567654718261949 /docs/en/fact-sheet/MWCT1012FS.pdf 2016-10-31 1417041951471689051346 PSP 13 Sep 16, 2015 Fact Sheet The MWCT1012 device is NXP’s solutions for 15 watt single-coil wireless charging transmitter applications. MWCT1012 is the standard offering, featuring a complete system solution to implement the controller functions in a wireless charging transmitter system. MWCT1012 supports any industry compliant 15W single-coil topology, providing a single solution with maximum flexibility. None /docs/en/fact-sheet/MWCT1012FS.pdf English documents 164639 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/MWCT1012FS.pdf MWCT1012/MWCT1111 Wireless Charging - Fact Sheet /docs/en/fact-sheet/MWCT1012FS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 2 N N MWCT1012/MWCT1111 Wireless Charging - Fact Sheet 164.6 KB MWCT1012FS N 1417041951471689051346 true Y Products
