面向汽车应用的15 W无线充电发射器IC

MWCT1x1xA
正常供应
可编程无线充电解决方案

点击播放视频

恩智浦MWCT1011A和MWCT1013A多线圈无线充电发送器IC可提供实施汽车无线充电发送器解决方案所需的全部控制器功能。

  • 实施和控制功率传输功能、监控和管理系统整体状态，如异物检测，温度和系统效率监控。
  • 标准解决方案和高级解决方案提供可扩展性和差异性，以及一个全功能的、符合行业标准的系统解决方案
  • 恩智浦提供了升级到WCT1013A的路径，包含定制应用和实现最大差异性所需的额外硬件和软件资源

产品详情

框图

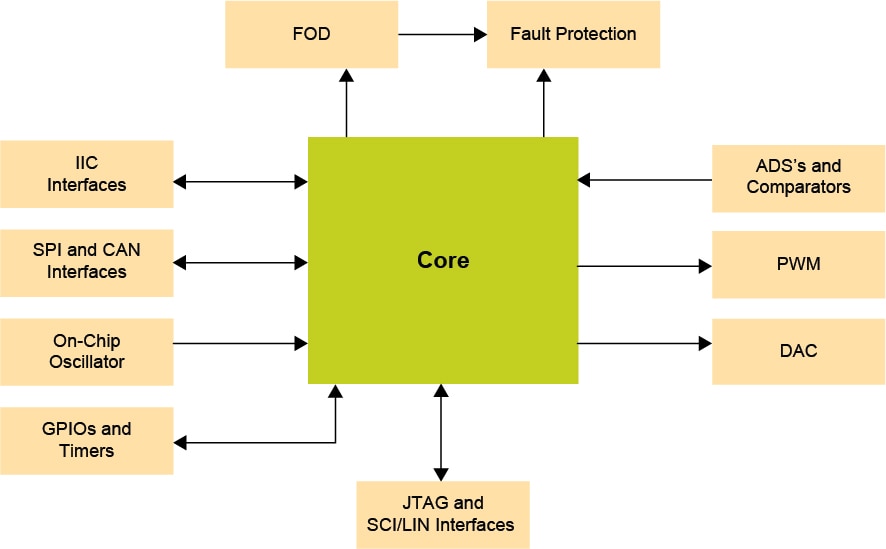

MWCT1x1xA Block Diagram

MWCT1x1xA Block Diagram
获取框图PDF

特征

  • 符合无线充电联盟(WPC)的最新规范
  • 功率传输效率超过70%
  • 优化的异物检测算法
  • 支持大多数15 W线圈类型，包括单线圈或多线圈
  • 片上数字解调，可降低物料清单成本
  • 运行和待机功耗较低
  • 高级版本可提供额外的设计灵活性，帮助打造独一无二的产品
  • 易于使用的调试和配置工具，可加速产品开发
  • 固定工作频率，可减少汽车系统中的EMI
  • 支持关键FOB避免功能
  • 支持工作频率抖动技术，可避免AM频段干扰

购买/参数

1 结果

包含 1 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

封装类型

封装端接数

GPIOs

On-Chip Authentication

AEC-Q100 compliant

MWCT1013AVLH
数据手册

正常供应

1K @ CNY59.59

LQFP64

64

54

N

Y

N true 0 PSPMWCT1x1xAzh 7 勘误表 Errata t522 3 参考手册 Reference Manual t877 2 数据手册 Data Sheet t520 1 简介 Fact Sheet t523 1 zh 0 false zh zh 数据手册 Data Sheet 1 1 1.1 English The WCT101xA is a wireless power transmitter controller that integrates all required functions for WPC “Qi” compliant wireless power transmitter design. It is an intelligent device that works with the NXP touch sensing technology or uses periodically analog PING to detect a mobile device for charging while gaining super low standby power. Once the mobile device is detected, the WCT101xA controls the power transfer by adjusting the rail voltage, the phase difference, or the duty cycle of the powe 1474267299578716449901 PSP 1.3 MB None None documents None 1474267299578716449901 /docs/en/data-sheet/WCT101xADS.pdf 1279778 /docs/en/data-sheet/WCT101xADS.pdf WCT101XADS documents N N 2016-11-09 MWCT101xADS - Data Sheet /docs/en/data-sheet/WCT101xADS.pdf /docs/en/data-sheet/WCT101xADS.pdf Data Sheet N 980000996212993340 2023-07-12 pdf N en Jan 5, 2021 980000996212993340 Data Sheet Y N MWCT101xADS - Data Sheet 参考手册 Reference Manual 2 2 4.1 English This document describes the features, architecture, and programming model of Our MWCT1xxx series of microcontroller. Supports MWCT1000CFM, MWCT1001AVLH, MWCT1101CLH, and MWCT1200CFM 1392356351685700738314 PSP 7.4 MB Registration without Disclaimer None documents Extended 1392356351685700738314 /secured/assets/documents/en/reference-manual/MWCT1XXXRM.pdf 7361743 /secured/assets/documents/en/reference-manual/MWCT1XXXRM.pdf MWCT1XXXRM documents Y N 2016-10-31 MWCT1xxx RM: MWCT1xxx Reference Manual supporting MWCT1000CFM, MWCT1001AVLH, MWCT1011AVLH, MWCT1101CLH, MWCT1111CLH, MWCT1011CFM /webapp/Download?colCode=MWCT1XXXRM&lang_cd=zh /secured/assets/documents/en/reference-manual/MWCT1XXXRM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Sep 18, 2020 500633505221135046 Reference Manual Y N MWCT1xxx RM: MWCT1xxx Reference Manual supporting MWCT1000CFM, MWCT1001AVLH, MWCT1011AVLH, MWCT1101CLH, MWCT1111CLH, MWCT1011CFM 3 MWCT1003AVLH 2 English 1474263930326725500929 PSP 8.3 MB Registration without Disclaimer None documents Extended 1474263930326725500929 /secured/assets/documents/en/reference-manual/MWCT10x3ARM.pdf 8302389 /secured/assets/documents/en/reference-manual/MWCT10x3ARM.pdf MWCT10X3ARM documents Y N 2016-11-09 MWCT10x3A Reference Manual /webapp/Download?colCode=MWCT10X3ARM&lang_cd=zh /secured/assets/documents/en/reference-manual/MWCT10x3ARM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Sep 1, 2016 500633505221135046 Reference Manual Y N MWCT10x3A Reference Manual 勘误表 Errata 3 4 0 English Mask Set Errata for MWCT1xxxA 1559169071362702884185 PSP 144.0 KB None None documents None 1559169071362702884185 /docs/en/errata/Errata_MWCT10x1A.pdf 144015 /docs/en/errata/Errata_MWCT10x1A.pdf MWCT1xxx_XN33GA documents N N 2019-05-29 Mask Set Errata for MWCT1xxxA /docs/en/errata/Errata_MWCT10x1A.pdf /docs/en/errata/Errata_MWCT10x1A.pdf Errata N 155452329886410597 2025-03-08 pdf N en May 29, 2019 155452329886410597 Errata Y N Mask Set Errata for MWCT1xxxA 5 0 English This report applies to mask XN33G for MWCT1xxxA3 1559165738293719810212 PSP 144.0 KB None None documents None 1559165738293719810212 /docs/en/errata/Errata_MWCT10x1A3.pdf 144015 /docs/en/errata/Errata_MWCT10x1A3.pdf MWCT1xxx_XN33G documents N N 2019-05-29 Mask Set Errata for MWCT1xxxA3 /docs/en/errata/Errata_MWCT10x1A3.pdf /docs/en/errata/Errata_MWCT10x1A3.pdf Errata N 155452329886410597 2025-02-16 pdf N en May 29, 2019 155452329886410597 Errata Y N Mask Set Errata for MWCT1xxxA3 6 10/Nov/2018 English Mask Set Errata for Mask 0N20V 1542863732206689180816 PSP 254.3 KB None None documents None 1542863732206689180816 /docs/en/errata/MWCT1016_0N20V.pdf 254261 /docs/en/errata/MWCT1016_0N20V.pdf MWCT1016_0N20V documents N N 2018-11-21 Mask Set Errata for Mask 0N20V /docs/en/errata/MWCT1016_0N20V.pdf /docs/en/errata/MWCT1016_0N20V.pdf Errata N 155452329886410597 2022-12-07 pdf N en Nov 21, 2018 155452329886410597 Errata Y N Mask Set Errata for Mask 0N20V 简介 Fact Sheet 1 7 1 English The MWCT1011A and MWCT1013A devices are NXP’s latest 15-watt solutions for automotive wireless charging applications. The MWCT1011A IC is the standard offering, featuring a complete system solution to implement the controller functions in a 1474268039031683986588 PSP 244.5 KB None None documents None 1474268039031683986588 /docs/en/fact-sheet/MWCT1x1xAFS.pdf 244501 /docs/en/fact-sheet/MWCT1x1xAFS.pdf MWCT1X1XAFS documents N N 2016-11-09 MWCT1x1xA Wireless Charging - Fact Sheet /docs/en/fact-sheet/MWCT1x1xAFS.pdf /docs/en/fact-sheet/MWCT1x1xAFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Feb 25, 2020 736675474163315314 Fact Sheet Y N MWCT1x1xA Wireless Charging - Fact Sheet false 0 MWCT1x1xA downloads zh-Hans true 1 Y PSP 勘误表 3 /docs/en/errata/Errata_MWCT10x1A.pdf 2019-05-29 1559169071362702884185 PSP 4 May 29, 2019 Errata Mask Set Errata for MWCT1xxxA None /docs/en/errata/Errata_MWCT10x1A.pdf English documents 144015 None 155452329886410597 2025-03-08 N /docs/en/errata/Errata_MWCT10x1A.pdf Mask Set Errata for MWCT1xxxA /docs/en/errata/Errata_MWCT10x1A.pdf documents 155452329886410597 Errata N en None Y pdf 0 N N Mask Set Errata for MWCT1xxxA 144.0 KB MWCT1xxx_XN33GA N 1559169071362702884185 /docs/en/errata/Errata_MWCT10x1A3.pdf 2019-05-29 1559165738293719810212 PSP 5 May 29, 2019 Errata This report applies to mask XN33G for MWCT1xxxA3 None /docs/en/errata/Errata_MWCT10x1A3.pdf English documents 144015 None 155452329886410597 2025-02-16 N /docs/en/errata/Errata_MWCT10x1A3.pdf Mask Set Errata for MWCT1xxxA3 /docs/en/errata/Errata_MWCT10x1A3.pdf documents 155452329886410597 Errata N en None Y pdf 0 N N Mask Set Errata for MWCT1xxxA3 144.0 KB MWCT1xxx_XN33G N 1559165738293719810212 /docs/en/errata/MWCT1016_0N20V.pdf 2018-11-21 1542863732206689180816 PSP 6 Nov 21, 2018 Errata Mask Set Errata for Mask 0N20V None /docs/en/errata/MWCT1016_0N20V.pdf English documents 254261 None 155452329886410597 2022-12-07 N /docs/en/errata/MWCT1016_0N20V.pdf Mask Set Errata for Mask 0N20V /docs/en/errata/MWCT1016_0N20V.pdf documents 155452329886410597 Errata N en None Y pdf 10/Nov/2018 N N Mask Set Errata for Mask 0N20V 254.3 KB MWCT1016_0N20V N 1542863732206689180816 参考手册 2 /secured/assets/documents/en/reference-manual/MWCT1XXXRM.pdf 2016-10-31 1392356351685700738314 PSP 2 Sep 18, 2020 Reference Manual This document describes the features, architecture, and programming model of Our MWCT1xxx series of microcontroller. Supports MWCT1000CFM, MWCT1001AVLH, MWCT1101CLH, and MWCT1200CFM Registration without Disclaimer /secured/assets/documents/en/reference-manual/MWCT1XXXRM.pdf English documents 7361743 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=MWCT1XXXRM&lang_cd=zh MWCT1xxx RM: MWCT1xxx Reference Manual supporting MWCT1000CFM, MWCT1001AVLH, MWCT1011AVLH, MWCT1101CLH, MWCT1111CLH, MWCT1011CFM /secured/assets/documents/en/reference-manual/MWCT1XXXRM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 4.1 Y N MWCT1xxx RM: MWCT1xxx Reference Manual supporting MWCT1000CFM, MWCT1001AVLH, MWCT1011AVLH, MWCT1101CLH, MWCT1111CLH, MWCT1011CFM 7.4 MB MWCT1XXXRM N 1392356351685700738314 /secured/assets/documents/en/reference-manual/MWCT10x3ARM.pdf 2016-11-09 1474263930326725500929 PSP 3 Sep 1, 2016 Reference Manual Registration without Disclaimer /secured/assets/documents/en/reference-manual/MWCT10x3ARM.pdf English documents 8302389 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=MWCT10X3ARM&lang_cd=zh MWCT10x3A Reference Manual /secured/assets/documents/en/reference-manual/MWCT10x3ARM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 2 Y N MWCT10x3A Reference Manual 8.3 MB MWCT1003AVLH MWCT10X3ARM N 1474263930326725500929 数据手册 1 /docs/en/data-sheet/WCT101xADS.pdf 2016-11-09 1474267299578716449901 PSP 1 Jan 5, 2021 Data Sheet The WCT101xA is a wireless power transmitter controller that integrates all required functions for WPC “Qi” compliant wireless power transmitter design. It is an intelligent device that works with the NXP touch sensing technology or uses periodically analog PING to detect a mobile device for charging while gaining super low standby power. Once the mobile device is detected, the WCT101xA controls the power transfer by adjusting the rail voltage, the phase difference, or the duty cycle of the powe None /docs/en/data-sheet/WCT101xADS.pdf English documents 1279778 None 980000996212993340 2023-07-12 N /docs/en/data-sheet/WCT101xADS.pdf MWCT101xADS - Data Sheet /docs/en/data-sheet/WCT101xADS.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1.1 N N MWCT101xADS - Data Sheet 1.3 MB WCT101XADS N 1474267299578716449901 简介 1 /docs/en/fact-sheet/MWCT1x1xAFS.pdf 2016-11-09 1474268039031683986588 PSP 7 Feb 25, 2020 Fact Sheet The MWCT1011A and MWCT1013A devices are NXP’s latest 15-watt solutions for automotive wireless charging applications. The MWCT1011A IC is the standard offering, featuring a complete system solution to implement the controller functions in a None /docs/en/fact-sheet/MWCT1x1xAFS.pdf English documents 244501 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/MWCT1x1xAFS.pdf MWCT1x1xA Wireless Charging - Fact Sheet /docs/en/fact-sheet/MWCT1x1xAFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N N MWCT1x1xA Wireless Charging - Fact Sheet 244.5 KB MWCT1X1XAFS N 1474268039031683986588 true Y Products
