TEA1936XDB1533
-
USB PD 45W Mobile Charging.

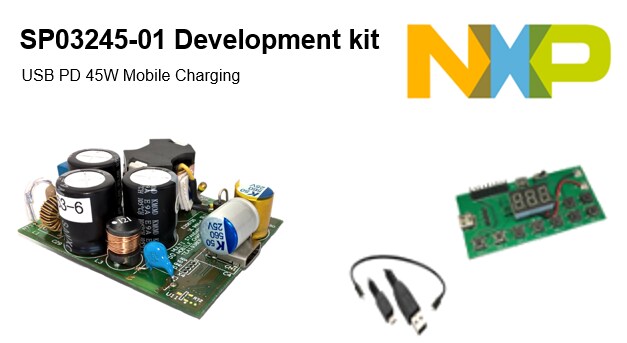

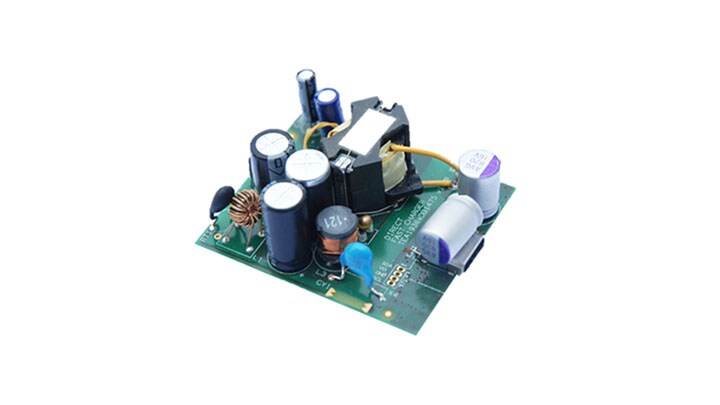

- TEA1936xDB1533 demo board
- Quick start guide
The USB PD 45W Mobile Charger enables the design of power supplies featuring extreme low standby power with the output voltage in full-regulation, very high-efficiency and high-reliability. The NXP® chipset used is targeting mobile and notebook power supplies with power requirements up to 100W. Supplies can be designed easily and with a minimum number of external components.
The USB PD 45W Mobile Charger supports the following standards:
Symbol | Parameter | Value |
---|---|---|
Vi | Input voltage | 90 to 264 V(ac) |
fi | Input frequency | 47 to 63 Hz |
Vo | Output Voltages | 5 V(DC), 9 V(DC), 15 V(DC), 20 V(DC) |
Iout | Maximum output current | 3 A (@ 5 V), 3 A (@ 9 V), 3 A (@ 15 V), 2.25 A (@ 20 V) |
Pout | Output power [nominal] | 45 W |
n | Efficiency [average] | > 90 % |
Pi(noload) | No-load input power | < 30 mW |
Tambient_adapt | Ambient temperature adapter inside casing | -40 °C to 85 °C |
- | Energy standard | ENERGY STAR v6.0, CoC. tier 2 |
- | Electro Magnetic Interference (EMI) | CISPR22 compliant, EN 55022 |
L x B x H | Board dimensions | 55 mm x 46 mm x 21mm |
TEA19361 | Primary Flyback Controller | |
TEA1999 | Synchronous Rectification Controller | |
TEA19032 | PD / QC Controller | PD: 5V/3A, 9V/3A, 15V/3A, 20V/2.25A QC: 3.3V.... 12V / 27W (max) |
