KIT912P812GRBR: Gerber files for the KIT912P812ECUEVM reference design

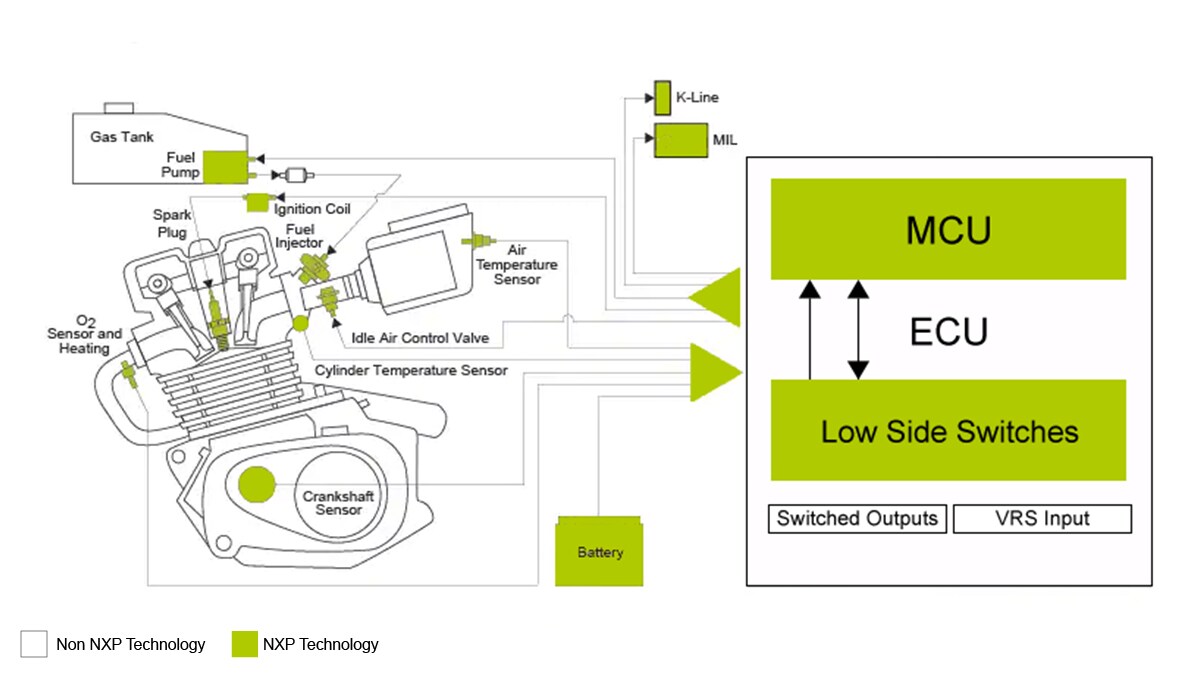

Small Engine Control
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

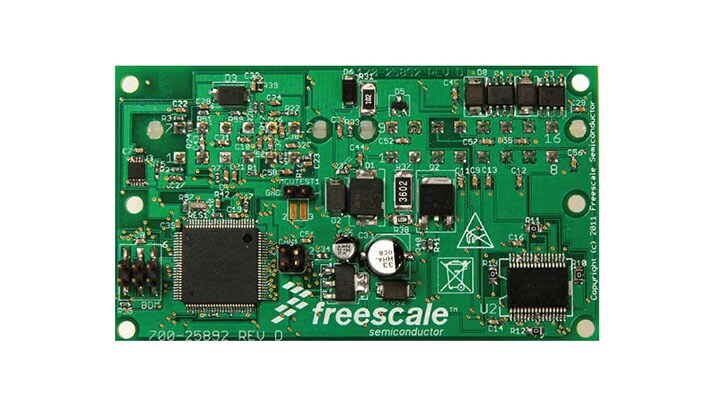

This reference design board supports the NXP® MM912_P812 engine control IC combining an MCU (S12P) and analog control die (MC33812) intended for motorcycle and other single/dual cylinders small engine control applications.
Analog control IC consists of three integrated low side drivers, one pre-driver, a +5.0 V, voltage preregulator, an MCU watchdog circuit, an ISO 9141 K-Line interface, and a parallel interface for MCU communication.
Archived content is no longer updated and is made available for historical reference only.
产品详情
Features
Power
- VCC voltage pre-regulator provides +5.0 V power for the MCU
- Designed to operate over the range of ~4.7 V ≤ VPWR ≤ 36 V
Communication
- ISO-9141 K-Line transceiver for communicating diagnostic messages
- All signal lines are accessible
Operation
- Lamp driver current limit 1.5 A typical
- Relay/Injector/Fuel pump driver current limit 4.0 A typical
Timer
- MCU watchdog timer circuit with parallel refresh/time setting line
设计资源
软件
快速参考恩智浦 软件类型.
2 软件文件
-
应用示范软件
33812SMALLENGINE_SW.zip folder for KIT33812ECUEVME reference design
