OM13063
正常供应 -

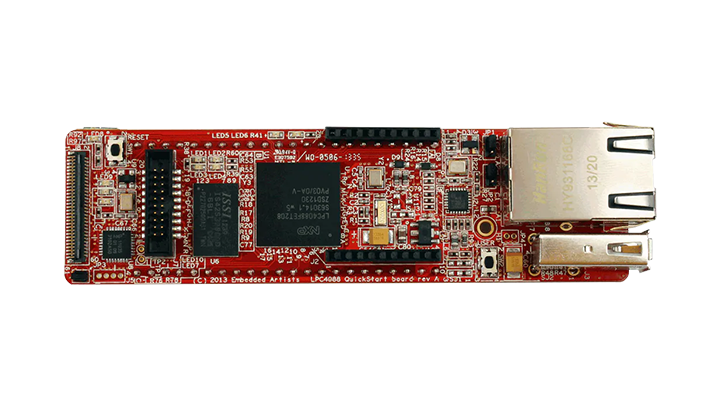

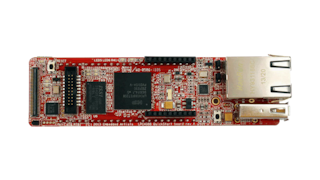

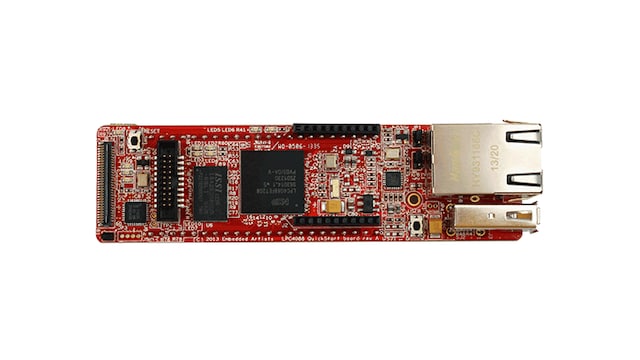

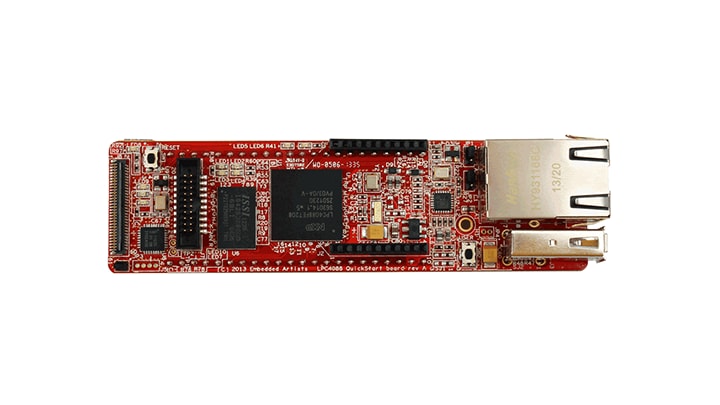

LPC4088 QuickStart Board.
LPC4088快速入门电路板
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。
Embedded Artists' LPC4088 QuickStart Board is an easy to use Arm Cortex-M4 rapid prototyping board in a standard through hole DIP package (44-pin), targeted at high-performance as well as low-power applications. 通信接口、大容量板载存储器和LCD控制器支持图形用户界面应用。LPC4088快速入门电路板支持mbed，可充分利用mbed平台。
产品详情
特征
微控制器
- Arm® Cortex®-M4 LPC4088 microcontroller in a BGA package, running at up to 120 MHz
存储器
- 8 MB Quad SPI和512 kB片上编程闪存
- 32 MB SDRAM (x32 bit databus for high-bandwidth access), 96 kB on-chip SRAM, and 4 kB on-chip E²PROM data memory
数据连接
- 10/100 Mbit/s Ethernet (RJ45)
- USB主设备(A型)和设备(微型B)接口
- Mbed HDG debug interface
- 20-pin SWD/Trace connector (Arm standard debug connector)
- 61引脚0.3 mm间距FPC连接器，面向显示器扩展
- 20-pin XBee compatible connector for RF module add-on
调试
- CMSIS-DAP板载接口(调试接口功能)
- 12 MHz主晶振和32.768 kHz RTC晶振
