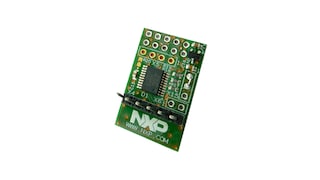

NXQ1TXH5DB1355 plugin board[UM11152]
One-Chip 5 V Qi Wireless Transmitter
This product is Not Recommended for New Designs. Please visit our Wireless Power Portfolio for more options.

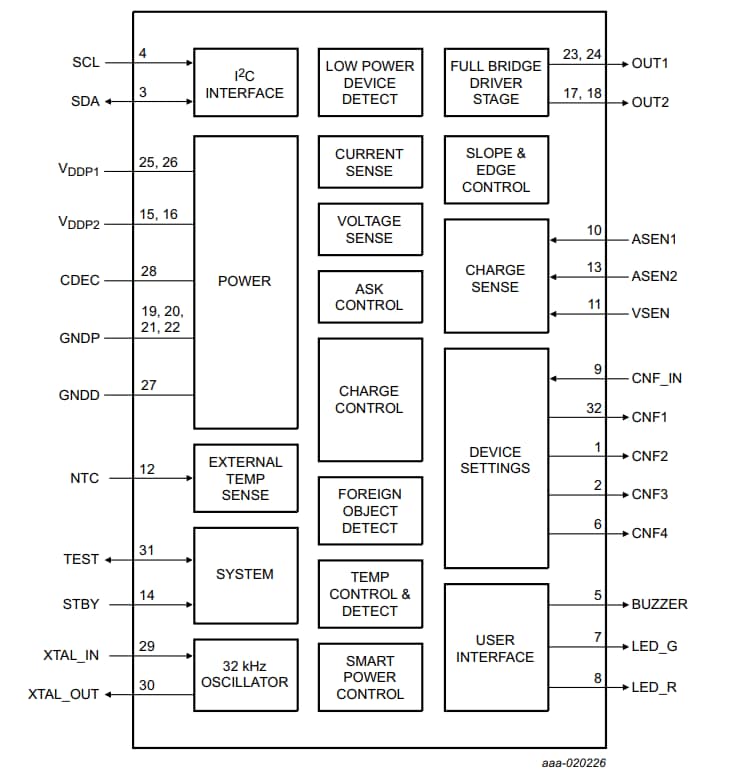

The NXQ1TXH5 is a fully integrated one-chip controller and driver IC enabling the design of a 5 V Qi-certified low-power wireless charger. It includes a 5 V full-bridge power stage, as defined in the Wireless Power Consortium (WPC) low-power Qi configurations A5, A11, A12, and A16. The device is optimized for a minimum external component count, enabling a very low-cost application and a simple PCB design.
The NXQ1TXH5 uses dedicated analog ping circuitry to detect devices, according to the Qi standard, achieving an very low standby power consumption of 10 mW. The NXQ1TXH5 takes care of a reliable ASK communication and controls the wireless power transfer from the transmitter to the receiver while monitoring for fault conditions such as overheating or interference by metal objects. The device is optimized to operate from a USB power supply and uses Smart Power Limiting (SPL) to adjust the output power automatically to compensate for power-limited supplies. The device supports Foreign Object Detection (FOD) and operates according to the WPC Qi low-power V1.2.4 specifications.
LED and buzzer outputs are available for the user interface. For the LED outputs a wide range of blinking modes can be selected in the application. Static Power Reduction (SPR) allows multiple NXQ1TXH5-based transmitters to operate from a single USB power supply by limiting power consumption per device.
The NXQ1TXH5 comes in a size optimized low-cost 5 mm × 5 mm, 32-pin HVQFN package.
Outline 3d SOT617-3
产品详情
Features
- Single chip WPC1.2 Qi-compliant device for an A5/A11/A12/A16 single coil Qi low-power transmitter
- Transmit power up to 8 W
- Operates from 5 V supply
- Integrated high-efficiency full-bridge power stage with overcurrent and overtemperature protection
- Very low EMI radiation, passing EN55022 radiated and conducted emission test specifications
- Very few external components required, minimizing cost and board space
- Very low-power receiver detection circuitry; standby power less than 10 mW (typical)
- Fully integrated accurate coil current measurement
- Robust DSP based dual channel ASK communication with Qi-compliant receivers
- 2 LED outputs and 1 buzzer output
- NTC input for external temperature check and protection
- Small HVQFN 32-pin package (5 x 5 mm) with 0.5 mm pitch
- Foreign Object Detection (FOD) according to WPC Qi low-power V1.2 specifications
- Easy FOD adjustment in application for Qi certification
- Smart Power Limiting (SPL) function to adapt to power-limited 5 V supplies
- Static Power Reduction (SPR) function to limit power consumption
