LIN 2.1 / SAEJ2602-2，双LIN物理层

MC33663
停产

  • 建议不要在新设计中使用MC33663。恩智浦建议任何新设计中都可采用TJA1022。

恩智浦MC33663产品系列集成了两个物理层LIN总线，专用于汽车LIN子总线应用。

  • MC33663LEF和MC33663SEF器件提供正常的波特率(20 kbps)，而MC33663JEF提供慢速波特率(10 kbps)。
  • 所有器件都集成了用于测试和编程模式的快速波特率(100 Kbps以上)
  • 出色的电磁兼容性(EMC)、辐射排放性能、静电放电(ESD)稳定性，并可在LIN总线接地短路或低功耗模式LIN总线漏电等情况下提供安全保护

查看内部电路图

查看产品图片

产品详情

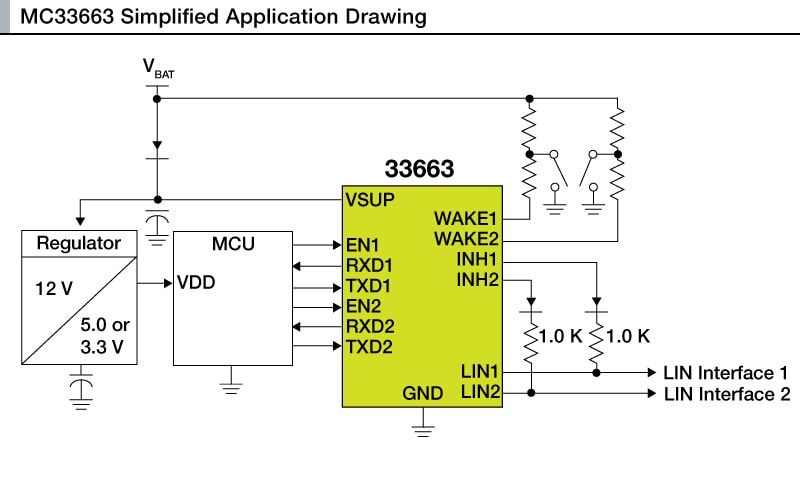

框图

MC33663 PSP internal block diagram

LIN 2.1 / SAEJ2602-2 Dual LIN Physical Layer
获取框图PDF

特征

  • 工作电压范围为7.0至18 V DC，27 V DC时可正常工作，负载突降时可承受40 V电压
  • 符合LIN协议规范2.1和SAEJ2602-2
  • 非常高的抗电磁干扰性能
  • 睡眠模式下保持低待机电流
  • 过热保护
  • 永久显性状态检测
  • 通过RXD引脚实现快速波特率选择
  • 主动总线波形整形，具有出色的辐射排放性能
  • 在LIN总线和VSUP引脚上保持±15.0 kV ESD (IEC6100-4-2)
  • 5.0 V和3.3 V兼容数字输入，无需外部组件
