Fourth Generation WCDMA/EDGE Radio
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。
As multiband, multimode functions are required for cell phone design, small and easy-to-use RF solutions are mandatory. NXP® Semiconductors's RF subsystem solution offers a highly integrated, comprehensive radio solution for WCDMA/EDGE 3G terminals. Typical subsystems, often requiring greater than a hundred components, can now be shrunk to 70 percent fewer components in less than 649 mm2 of board space.

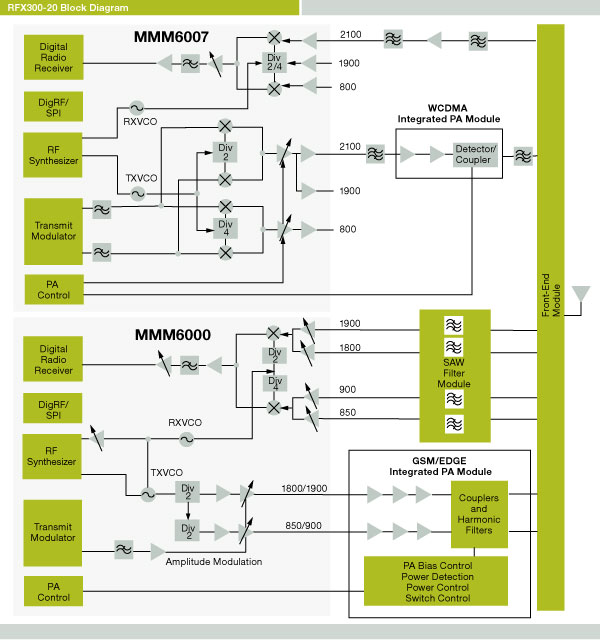

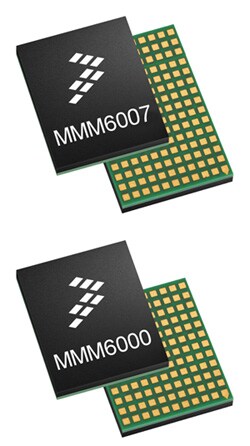

Two devices (MMM6000 and a GSM/EDGE integrated PA) combine to function over the GSM850, EGSM900, DCS1800 and PCS1900 frequency bands. Two other devices (MMM6007 and a WCDMA Integrated PA) make up the WCDMA (UMTS) portion to complete the full WCDMA/EDGE radio subsystem.
