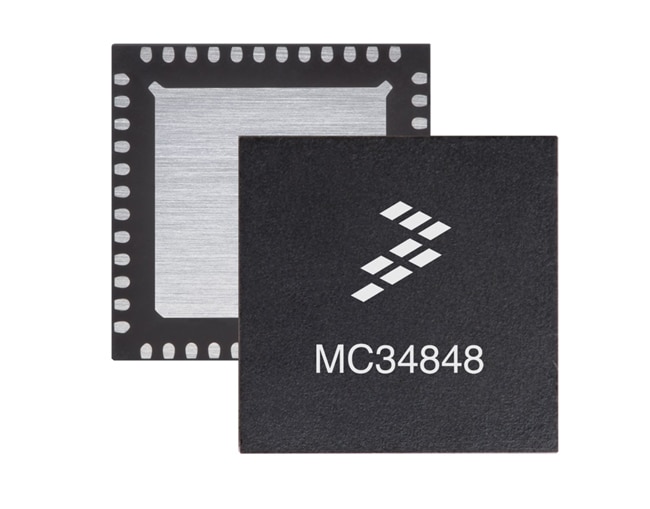

8-Channel Local-Dimming LED Driver
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。
The MC34848 is a high efficiency, 8-channel LED driver for use in LCD backlighting applications. It is designed to support up to 160 mA /channel in scan backlight mode, or 80 mA/channel in local dimming mode. Current reference is set using a single resistor to GND and the LED current tolerance is accurate to ±1% channel-to-channel and IC-to-IC. The current can be programmed in both local dimming and scan modes. Each channel has independent PWM control with 10-bit resolution, programmed with high speed differential interface.
