470-860 MHz, 90 W, 50 V Broadband RF Power LDMOS Transistors
- 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

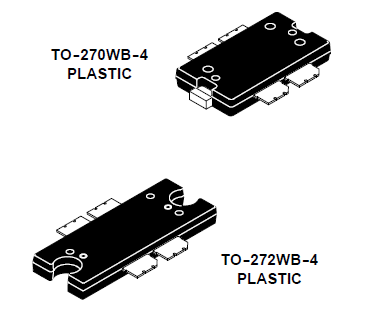

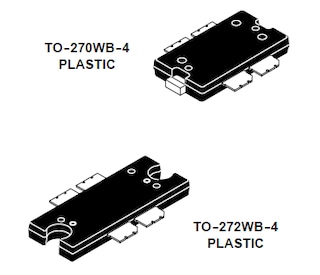

The MMRF1018NR1 and MMRF1018NBR1 90 W RF power LDMOS transistors are designed for wideband RF power amplifiers covering the frequency range of 470 to 860 MHz.
产品详情
RF Performance Tables
860 MHz Narrowband
Typical Performance (Narrowband Test Circuit): VDD = 50 Vdc, IDQ = 350 mA, 64 QAM, Input Signal PAR = 9.5 dB @ 0.01% Probability on CCDF.| Signal Type | Pout (W) |
f (MHz) |
Gps (dB) |
ηD (%) |
ACPR (dBc) |
| DVB-T (8k OFDM) | 18 Avg. | 860 | 22.0 | 28.5 | –62.0 |
470-860 MHz Broadband
Typical Performance (Broadband Reference Circuit): VDD = 50 Vdc, IDQ = 450 mA, 64 QAM, Input Signal PAR = 9.5 dB @ 0.01% Probability on CCDF.| Signal Type | Pout (W) |
f (MHz) |
Gps (dB) |
ηD (%) |
Output Signal PAR (dB) |
IMD Shoulder (dBc) |
| DVB-T (8k OFDM) | 18 Avg. | 470 | 21.6 | 26.8 | 8.6 | –31.8 |
| 650 | 22.9 | 28.0 | 8.7 | –34.4 | ||
| 860 | 21.9 | 28.3 | 7.9 | –29.2 |
