470-860 MHz，90 W，50 V LDMOS宽带射频功率晶体管

MRF6VP3091N
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

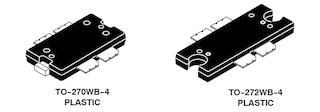

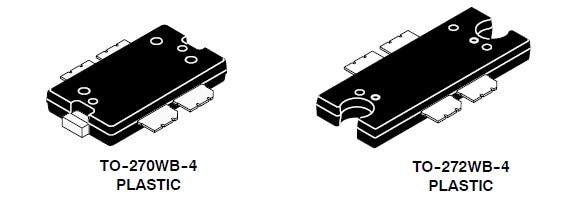

滚动图片以放大

MRF6VP3091NR1、MRF6VP3091NBR1、MRF6VP3091NR5和MRF6VP3091NBR5专为470到860MHz频率范围的商业和工业宽带应用而设计。这些器件适用于广播应用。

产品详情

选择区域:

RF Performance Tables

470-860 MHz

Typical Performance (UHF 470-860 Reference Circuit): VDD = 50 Volts, IDQ = 450 mA, 64 QAM, Input Signal PAR = 9.5 dB @ 0.01% Probability on CCDF.
Signal Type Pout
(W)		 f
(MHz)		 Gps
(dB)		 ηD
(%)		 Output
Signal PAR
(dB)		 IMD Shoulder
(dBc)
DVB-T (8k OFDM)18 Avg. 47021.831.07.9–27.8
65021.626.48.4–37.6
86021.727.67.1–30.4

960-1215 MHz

Typical Performance (L-band 960-1215 MHz Circuit):
VDD = 50 Volts, IDQ = 100 mA.
Signal Type Pout
(W)		 f
(MHz)		 Pin
(W)		 Gps
(dB)		 ηD
(%)
Pulse (128 µsec,
10% Duty Cycle)		90 Peak 9601.318.455.3
10301.411856.9
10901.6517.450.7
12151.6817.351.0
