Arm® Cortex®-A5 + Cortex-M4 MPU, 1.5 MB SRAM, LCD, 安全, 以太网, L2交换机

VF6xx
正常供应
2D Graphics Display on VFxxx Controller Demo

点击播放视频

VF6xx系列是异构双核解决方案，集成了Arm® Cortex®-A5和Cortex-M4内核。VF6xx设备包括：

  • 两个带集成式PHY的USB 2.0 OTG控制器、两个带L2交换功能的10/100以太网控制器。
  • 高达1.5 MB的片上SRAM以及一套丰富的通信、数据连接和人机接口(HMI)。
  • 它所具备的防克隆、防篡改、安全引导以及高级加密硬件等特性可提供最高水平的安全性和准确性。
  • 多个串行接口，如UART，可支持ISO 7816 SIM/智能卡、SPI和I2C及双CAN模块。
  • 与各种外设和存储器连接的接口，适用于系统扩展和数据存储。

框图

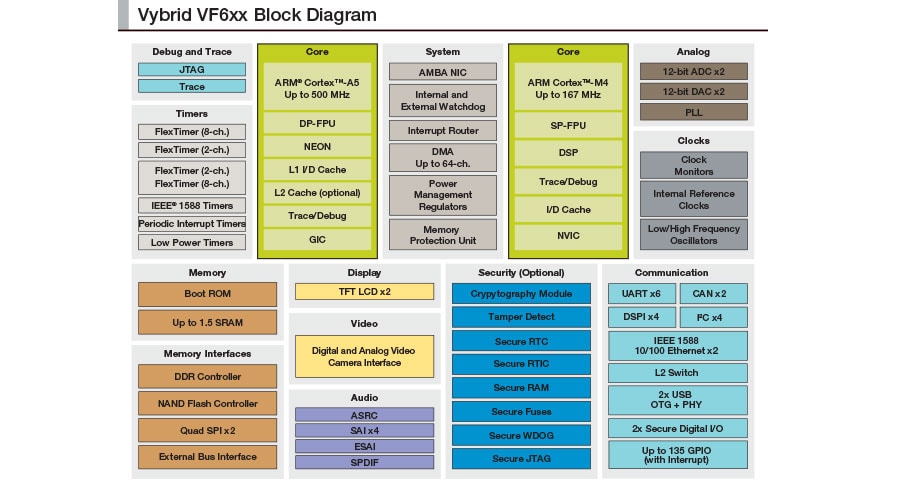

VF6xx Block Diagram

VFxxx VF6xx Block Diagram
获取框图PDF

特征

  • 异构双核：Cortex-A5和Cortex-M4
  • 可选512 KB L2缓存
  • 1.5 MB片上SRAM(当选择L2 Cache时为1.0 MB)
  • 带集成式PHY的双USB 2.0 OTG
  • 带L2交换功能的双以太网10/100 MAC
  • 数字和模拟视频摄像头接口
  • 双显示控制器，最高支持SVGA分辨率或一个XGA (1024x768)分辨率的显示器
  • 带加密加速引擎的高可靠引导
  • 支持800 MHz DDR3和LPDDR2，提供8位ECC保护
  • NAND闪存控制器和带芯片内执行功能(XIP)的双4通道SPI
  • 双12位ADC和DAC；双SDIO
