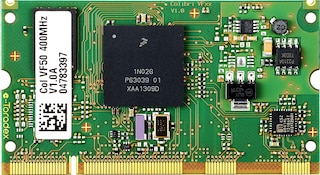

基于Arm® Cortex®-A5的微处理器，带1.5MB SRAM，LCD，安全性，2x以太网，L2交换机

VF5xx
正常供应

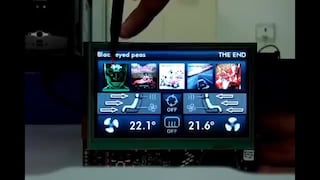

2D Graphics Display on VFxxx Controller Demo

点击播放视频

VFxxx VF5xx系列是一款单核(Arm® Cortex®-A5)解决方案，配备1.5 MB的片上SRAM、DDR2/3和双XIP 4通道SPI存储器接口、带PHY的双高速USB、带L2交换功能的双以太网和一个数字视频摄像头接口。VF5xx设备可与VF6xx Vybrid控制器系列实现软件和引脚兼容，VF6xx VFxxx控制器系列还包括一个无需外部MCU和现场可编程门极序列(FPGA)的第二内核(Cortex-M4内核)。

VFxxx设备适用于多种应用，包括家用电器和工业机床应用中的简单HMI、基础设施和制造设备的安全控制、能源转换应用，如电机驱动和功率逆变器、可靠的有线和无线连接以及移动电池供电系统的控制，如机器人和工业车辆。VFxxx设备还具有片上加密、安全引导、防篡改和防克隆功能，为智能电网或工业控制等的敏感和关键的基础设施应用提供安全保障。

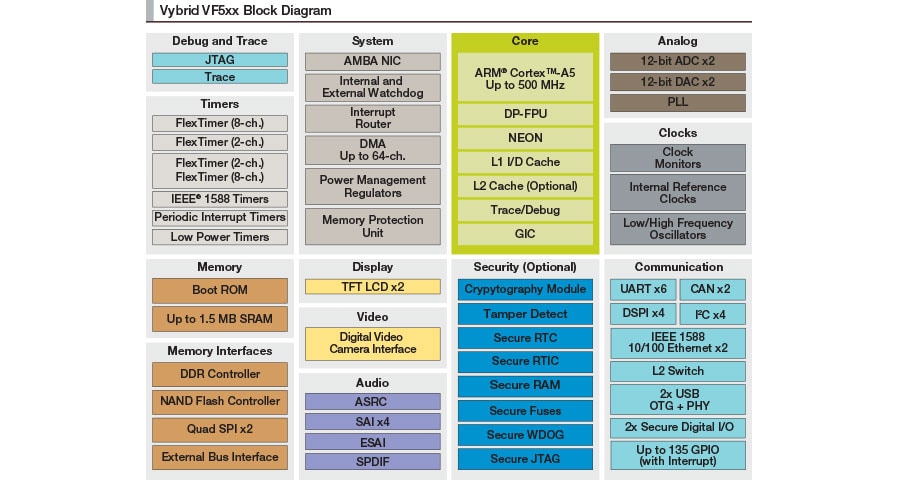

框图

VF5xx Block Diagram

VFxxx VF5xx Block Diagram
获取框图PDF

特征

  • Cortex-A5
  • 可选512 KB L2缓存
  • 1.5 MB片上SRAM(当选择L2 Cache时为1.0 MB)
  • 带集成式PHY的双USB 2.0 OTG
  • 带L2交换功能的双以太网10/100 MAC
  • 数字视频摄像头接口
  • 双显示控制器，最高支持SVGA分辨率或一个XGA (1024x768)分辨率的显示器
  • 带加密加速引擎的高可靠引导
  • 支持800 MHz DDR3和LPDDR2，提供8位ECC保护
  • NAND闪存控制器和带芯片内执行功能(XIP)的双4通道SPI
  • 双12位ADC和DAC；双SDIO

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPVF5xxzh 16 勘误表 Errata t522 1 参考手册 Reference Manual t877 2 工程设计要点 Technical Notes t521 1 应用笔记 Application Note t789 7 数据手册 Data Sheet t520 1 用户指南 User Guide t792 3 简介 Fact Sheet t523 1 zh 1 1 6 English The VF5xx family features the Arm&#174; Cortex&#8482;-A5 core with speeds up to 500 MHz. The family includes a 512 KB L2 cache, dual USB 2.0 (full- and high-speed) device/host/OTG controllers with integrated PHY, dual 10/100 Ethernet controllers with L2 switch, up to 1.5 MB of on-chip SRAM and a rich suite of communication, connectivity and human-machine interfaces (HMI). In addition, anti-clone, anti-tamper, secure boot and advanced encryption hardware deliver the highest level of security and accuracy. Th 1332537781124727325398 PSP 281.0 KB None None documents None 1332537781124727325398 /docs/en/fact-sheet/VFXXXVF5FS.pdf 281010 /docs/en/fact-sheet/VFXXXVF5FS.pdf VFXXXVF5FS documents N N 2016-10-31 VFxxx VF5xx Family - Fact Sheet /docs/en/fact-sheet/VFXXXVF5FS.pdf /docs/en/fact-sheet/VFXXXVF5FS.pdf /docs/en/fact-sheet/VFXXXVF5FS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Feb 11, 2020 736675474163315314 Fact Sheet Y N VFxxx VF5xx Family - Fact Sheet 0 Chinese 1332537781124727325398zh PSP 281.0 KB None None documents None 1332537781124727325398 /docs/zh/fact-sheet/VYBRIDVF5FS.pdf 281010 /docs/zh/fact-sheet/VYBRIDVF5FS.pdf VFXXXVF5FS N N 2016-10-31 VFxxx VF5xx Family - Fact Sheet /docs/zh/fact-sheet/VYBRIDVF5FS.pdf /docs/zh/fact-sheet/VYBRIDVF5FS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 N zh Fact Sheet t523 简介 Fact Sheet N Vybrid VF5xx系列 - 产品简介 false zh zh 数据手册 Data Sheet 1 2 10 English VYBRIDFSERIESEC: VF6xx, VF5xx, VF3xx Data Sheet. This document provides electrical characteristics for the Vybrid<sup>&#174;</sup> F Series of microcontrollers. 1369942390871751273117 PSP 1.7 MB None None documents None 1369942390871751273117 /docs/en/data-sheet/VYBRIDFSERIESEC.pdf 1707333 /docs/en/data-sheet/VYBRIDFSERIESEC.pdf VYBRIDFSERIESEC documents N N 2018-01-11 VF6xx, VF5xx, VF3xx - Data Sheet /docs/en/data-sheet/VYBRIDFSERIESEC.pdf /docs/en/data-sheet/VYBRIDFSERIESEC.pdf Data Sheet N 980000996212993340 2023-09-18 pdf N en Sep 18, 2023 980000996212993340 Data Sheet Y N VF6xx, VF5xx, VF3xx - Data Sheet 参考手册 Reference Manual 2 3 0 English This document describes the features, architecture, and programming model of the NXP&#13;&#10;VFxxx Controller microprocessor (MPU). This document is common for the VFxxx Controller F-Series and R-Series. However that some functions are only available on the F-series parts and others only on R-series parts. 1475814515746722530753 PSP 50.0 MB None None documents None 1475814515746722530753 /docs/en/reference-manual/VFXXXRM.pdf 49998239 /docs/en/reference-manual/VFXXXRM.pdf VFXXXRM documents N N 2016-11-09 VFxxx Controller Reference Manual /docs/en/reference-manual/VFXXXRM.pdf /docs/en/reference-manual/VFXXXRM.pdf Reference Manual N 500633505221135046 2025-03-08 pdf N en Oct 6, 2016 500633505221135046 Reference Manual Y N VFxxx Controller Reference Manual 4 1 English This document describes VFxxx security features and modules. This only includes the&#13;&#10;security features and associated details for VFxxx. For any other details related to VFxxx refer VFxxx Reference Manual. For additional information about VFxxx, see the VFxxx Reference Manual (VFXXXRM).VFxxx incorporates a range of security features which can be used individually or in&#13;&#10;concert to underpin the platform security architecture. Most of the VFxxx 1371671654804715930870 PSP 11.2 MB Moderated Software Licensing For Download 1371830381085697505521 documents Extended 1371671654804715930870 /secured/assets/documents/en/reference-manual/VFXXXSRM.pdf 11226132 /secured/assets/documents/en/reference-manual/VFXXXSRM.pdf VFXXXSRM documents Y N 2016-10-31 VFxxx Security Reference Manual /webapp/sps/download/mod_download.jsp?colCode=VFXXXSRM&appType=moderated&lang_cd=zh /secured/assets/documents/en/reference-manual/VFXXXSRM.pdf Reference Manual N 500633505221135046 2023-05-29 pdf Y en Jun 6, 2013 500633505221135046 Reference Manual Y N VFxxx Security Reference Manual 应用笔记 Application Note 7 5 0 English VFxxx controller solutions are built on new asymmetrical multiprocessing architecture using Arm<sup>&#174;</sup>&#174; cores. The purpose of this application note is to provide some details of the VFxxx controller solutions system architecture. 1405355448829718570171 PSP 770.6 KB None None documents None 1405355448829718570171 /docs/en/application-note/AN4947.pdf 770627 /docs/en/application-note/AN4947.pdf AN4947 documents N N 2016-10-31 Understanding VFxxx Architecture /docs/en/application-note/AN4947.pdf /docs/en/application-note/AN4947.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jul 14, 2014 645036621402383989 Application Note Y N Understanding VFxxx Architecture 6 0 English VFxxx controller solutions are built on the new&#13;&#10;asymmetrical multiprocessing architecture using Arm<sup>&#174;</sup>&#13;&#10;cores. The purpose of this application note is to provide an&#13;&#10;overview of the power consumption VFxxx controller&#13;&#10;solutions. The document is focused on normal run modes.&#13;&#10;Several VFxxx use cases were defined and the power&#13;&#10;consumptions measured using The Tower System&#13;&#10;module (TWR-VF65GS10). To increase power efficiency,&#13;&#10;several po 1380749321014731519258 PSP 1.2 MB None None documents None 1380749321014731519258 /docs/en/application-note/AN4807.pdf 1160230 /docs/en/application-note/AN4807.pdf AN4807 documents N N 2016-10-31 VFxxx Power Consumption and Options - AN4807 /docs/en/application-note/AN4807.pdf /docs/en/application-note/AN4807.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 2, 2013 645036621402383989 Application Note Y N VFxxx Power Consumption and Options - AN4807 7 0 English The VFxxx family features a heterogeneous dual-core solution that combines the Arm<sup>&#174;</sup> Cortex<sup>&#174;</sup> -A5 and Arm Cortex<sup>&#174;</sup> -M4 cores. The family also features dual USB 2.0 OTG controllers with integrated PHY, dual 10/100 Ethernet controllers with L2 switch, 1.5 MB of on-chip SRAM and a rich suite of communication, connectivity and human-machine interfaces (HMI). The VF6xx family is pin-and software-compatible with the VF[3,5,6] families. VFxxx VF6xx devices include multiple serial interfaces including UARTs 1371065276603710447722 PSP 467.1 KB None None documents None 1371065276603710447722 /docs/en/application-note/AN4755.pdf 467125 /docs/en/application-note/AN4755.pdf AN4755 documents N N 2016-10-31 AN4755:CAN Booting Procedure for VFxxx Controller Solutions - Application Note /docs/en/application-note/AN4755.pdf /docs/en/application-note/AN4755.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jun 26, 2013 645036621402383989 Application Note Y N AN4755:CAN Booting Procedure for VFxxx Controller Solutions - Application Note 8 0 English AN4651: Each Animation and Compositing Engine (2D-ACE) module on the VFxxx MCU family is capable of driving a TFT LCD panel of different sizes. 1359384905641705695317 PSP 234.5 KB None None documents None 1359384905641705695317 /docs/en/application-note/AN4651.pdf 234456 /docs/en/application-note/AN4651.pdf AN4651 documents N N 2016-10-31 AN4651, TFT Panel Support in the VFxxx Microcontroller Family - Application Notes /docs/en/application-note/AN4651.pdf /docs/en/application-note/AN4651.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Mar 23, 2013 645036621402383989 Application Note Y N AN4651, TFT Panel Support in the VFxxx Microcontroller Family - Application Notes 9 0 English The VFxxx family of microcontrollers features up to two independent display peripherals that allow it to drive up to two TFT LCD panels. The 2D-ACE module features a rich set of capabilities that allow you to build engaging and dynamic graphic content from pre-rendered images and display this content on a wide range of TFT LCD panels. This application note explains the steps to configure and use the 2D-ACE with TFT LCD panels and how to display and blend graphics on each panel. See nxp.com for more d 1358539513172704485942 PSP 311.5 KB None None documents None 1358539513172704485942 /docs/en/application-note/AN4647.pdf 311527 /docs/en/application-note/AN4647.pdf AN4647 documents N N 2016-10-31 Configuring and Using the 2D-ACE on VFxxx Microcontrollers /docs/en/application-note/AN4647.pdf /docs/en/application-note/AN4647.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 18, 2013 645036621402383989 Application Note Y N Configuring and Using the 2D-ACE on VFxxx Microcontrollers 10 0 English This application note walks through an example of generating an inverted data enable (DE) signal for a TFT panel in order to demonstrate how the TCON module might be used to avoid adding external logic to interface to a TFT panel. 1353481315213729879315 PSP 297.4 KB None None documents None 1353481315213729879315 /docs/en/application-note/AN4635.pdf 297410 /docs/en/application-note/AN4635.pdf AN4635 documents N N 2016-10-31 Using the VFxxx TCON Module /docs/en/application-note/AN4635.pdf /docs/en/application-note/AN4635.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 20, 2012 645036621402383989 Application Note Y N Using the VFxxx TCON Module 11 0 English The QuadSPI module has had some significant changes made for implementation on the Vybrid<sup>&#174;</sup> MCU. These changes will be discussed in this application note in comparison to the QuadSPI versions implemented on MPC5606S and MPC5645S MCUs, and some code examples will be shown. 1338827711778724735662 PSP 349.9 KB None None documents None 1338827711778724735662 /docs/en/application-note/AN4512.pdf 349924 /docs/en/application-note/AN4512.pdf AN4512 documents N N 2016-10-31 Quad Serial Peripheral Interface (QuadSPI) Module Updates /docs/en/application-note/AN4512.pdf /docs/en/application-note/AN4512.pdf Application Note N 645036621402383989 2022-12-07 pdf N en May 15, 2012 645036621402383989 Application Note Y N Quad Serial Peripheral Interface (QuadSPI) Module Updates 用户指南 User Guide 3 12 1 English The purpose of this document is to help hardware engineers design and test their boards based on the VFxxx series of processors. It provides information on design checklists and&#13;&#10;board layout recommendations to ensure first-pass success and pave ways to avoid board bring-up problems. It also provides information on board-level testing and simulation such as properly configuring the JTAG tools, using BSDL for board-level testing, using the IBIS model for electrical integrity simulation, and more. 1415817969986714383187 PSP 2.4 MB None None documents None 1415817969986714383187 /docs/en/user-guide/VFXXXHDUG.pdf 2432170 /docs/en/user-guide/VFXXXHDUG.pdf VFXXXHDUG documents N N 2016-10-31 Hardware Development Guide for VFxxx Family of MCUs /docs/en/user-guide/VFXXXHDUG.pdf /docs/en/user-guide/VFXXXHDUG.pdf User Guide N 132339537837198660 2023-06-19 pdf N en May 14, 2015 132339537837198660 User Guide Y N Hardware Development Guide for VFxxx Family of MCUs 13 0 English This user&#8217;s guide details the setup and configuration of the NXP Automotive Evaluation Board. The EVB is intended to &#13;&#10;provide a mechanism for easy customer evaluation of the heterogeneous dual-core VFxxx family, and to facilitate hardware and software development.&#13;&#10; 1416347471909721901579 PSP 2.8 MB None None documents None 1416347471909721901579 /docs/en/user-guide/EVBVF522R3UG.pdf 2778610 /docs/en/user-guide/EVBVF522R3UG.pdf EVBVF522R3UG documents N N 2016-10-31 EVB-VF522R3 Platform User’s Guide /docs/en/user-guide/EVBVF522R3UG.pdf /docs/en/user-guide/EVBVF522R3UG.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Nov 18, 2014 132339537837198660 User Guide Y N EVB-VF522R3 Platform User’s Guide 14 1.2 English The TWR-VF65GS10 Tower<sup>&#174;</sup> Controller Module is&#13;&#10;compatible with the Tower System and features the heterogeneous dual-core VFxxx VF6xx. 1409242699366726207682 PSP 1.5 MB None None documents None 1409242699366726207682 /docs/en/user-guide/TWRVF65GS10UG.pdf 1473248 /docs/en/user-guide/TWRVF65GS10UG.pdf TWRVF65GS10UG documents N N 2016-10-31 TWR-VF65GS10 Tower Module User's Guide /docs/en/user-guide/TWRVF65GS10UG.pdf /docs/en/user-guide/TWRVF65GS10UG.pdf User Guide N 132339537837198660 2023-06-18 pdf N en Aug 28, 2014 132339537837198660 User Guide Y N TWR-VF65GS10 Tower Module User's Guide 工程设计要点 Technical Notes 1 15 0 English EB808: This bulletin contains performance measurement data of the Asynchronous Sample Rate Converter (ASRC). The ASRC is used in several NXP products including DSP, i.MX, and VFxxx products as a part of the audio subsystem. 1414079841632722917056 PSP 2.1 MB None None documents None 1414079841632722917056 /docs/en/engineering-bulletin/EB808.pdf 2125044 /docs/en/engineering-bulletin/EB808.pdf EB808 documents N N 2016-10-31 VFxxx ASRC Performance: Audio Analyzer Measurements - EB808 /docs/en/engineering-bulletin/EB808.pdf /docs/en/engineering-bulletin/EB808.pdf Technical Notes N 389245547230346745 2022-12-07 pdf N en Oct 23, 2014 389245547230346745 Technical Notes Y N VFxxx ASRC Performance: Audio Analyzer Measurements - EB808 勘误表 Errata 1 16 Rev 09 JUN 2014 English VFxxx_2N02G: This report applies to mask 2N02G for VFxxx product. 1402644771454710329345 PSP 312.2 KB None None documents None 1402644771454710329345 /docs/en/errata/VFXXX_2N02G.pdf 312200 /docs/en/errata/VFXXX_2N02G.pdf VFXXX_2N02G documents N N 2016-10-31 VFxxx_2N02G, Mask Set Errata for Mask 2N02G - Chip Errata /docs/en/errata/VFXXX_2N02G.pdf /docs/en/errata/VFXXX_2N02G.pdf Errata N 155452329886410597 2022-12-07 pdf N en Jun 16, 2014 155452329886410597 Errata Y N VFxxx_2N02G, Mask Set Errata for Mask 2N02G - Chip Errata false 0 VF5xx downloads zh-Hans true 1 Y PSP 勘误表 1 /docs/en/errata/VFXXX_2N02G.pdf 2016-10-31 1402644771454710329345 PSP 16 Jun 16, 2014 Errata VFxxx_2N02G: This report applies to mask 2N02G for VFxxx product. None /docs/en/errata/VFXXX_2N02G.pdf English documents 312200 None 155452329886410597 2022-12-07 N /docs/en/errata/VFXXX_2N02G.pdf VFxxx_2N02G, Mask Set Errata for Mask 2N02G - Chip Errata /docs/en/errata/VFXXX_2N02G.pdf documents 155452329886410597 Errata N en None Y pdf Rev 09 JUN 2014 N N VFxxx_2N02G, Mask Set Errata for Mask 2N02G - Chip Errata 312.2 KB VFXXX_2N02G N 1402644771454710329345 参考手册 2 /docs/en/reference-manual/VFXXXRM.pdf 2016-11-09 1475814515746722530753 PSP 3 Oct 6, 2016 Reference Manual This document describes the features, architecture, and programming model of the NXP&#13;&#10;VFxxx Controller microprocessor (MPU). This document is common for the VFxxx Controller F-Series and R-Series. However that some functions are only available on the F-series parts and others only on R-series parts. None /docs/en/reference-manual/VFXXXRM.pdf English documents 49998239 None 500633505221135046 2025-03-08 N /docs/en/reference-manual/VFXXXRM.pdf VFxxx Controller Reference Manual /docs/en/reference-manual/VFXXXRM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0 N N VFxxx Controller Reference Manual 50.0 MB VFXXXRM N 1475814515746722530753 /secured/assets/documents/en/reference-manual/VFXXXSRM.pdf 2016-10-31 1371671654804715930870 PSP 4 Jun 6, 2013 Reference Manual This document describes VFxxx security features and modules. This only includes the&#13;&#10;security features and associated details for VFxxx. For any other details related to VFxxx refer VFxxx Reference Manual. For additional information about VFxxx, see the VFxxx Reference Manual (VFXXXRM).VFxxx incorporates a range of security features which can be used individually or in&#13;&#10;concert to underpin the platform security architecture. Most of the VFxxx Moderated Software Licensing For Download /secured/assets/documents/en/reference-manual/VFXXXSRM.pdf English documents 11226132 1371830381085697505521 500633505221135046 2023-05-29 Y /webapp/sps/download/mod_download.jsp?colCode=VFXXXSRM&appType=moderated&lang_cd=zh VFxxx Security Reference Manual /secured/assets/documents/en/reference-manual/VFXXXSRM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 1 Y N VFxxx Security Reference Manual 11.2 MB VFXXXSRM N 1371671654804715930870 工程设计要点 1 /docs/en/engineering-bulletin/EB808.pdf 2016-10-31 1414079841632722917056 PSP 15 Oct 23, 2014 Technical Notes EB808: This bulletin contains performance measurement data of the Asynchronous Sample Rate Converter (ASRC). The ASRC is used in several NXP products including DSP, i.MX, and VFxxx products as a part of the audio subsystem. None /docs/en/engineering-bulletin/EB808.pdf English documents 2125044 None 389245547230346745 2022-12-07 N /docs/en/engineering-bulletin/EB808.pdf VFxxx ASRC Performance: Audio Analyzer Measurements - EB808 /docs/en/engineering-bulletin/EB808.pdf documents 389245547230346745 Technical Notes N en None Y pdf 0 N N VFxxx ASRC Performance: Audio Analyzer Measurements - EB808 2.1 MB EB808 N 1414079841632722917056 应用笔记 7 /docs/en/application-note/AN4947.pdf 2016-10-31 1405355448829718570171 PSP 5 Jul 14, 2014 Application Note VFxxx controller solutions are built on new asymmetrical multiprocessing architecture using Arm<sup>&#174;</sup>&#174; cores. The purpose of this application note is to provide some details of the VFxxx controller solutions system architecture. None /docs/en/application-note/AN4947.pdf English documents 770627 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4947.pdf Understanding VFxxx Architecture /docs/en/application-note/AN4947.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Understanding VFxxx Architecture 770.6 KB AN4947 N 1405355448829718570171 /docs/en/application-note/AN4807.pdf 2016-10-31 1380749321014731519258 PSP 6 Oct 2, 2013 Application Note VFxxx controller solutions are built on the new&#13;&#10;asymmetrical multiprocessing architecture using Arm<sup>&#174;</sup>&#13;&#10;cores. The purpose of this application note is to provide an&#13;&#10;overview of the power consumption VFxxx controller&#13;&#10;solutions. The document is focused on normal run modes.&#13;&#10;Several VFxxx use cases were defined and the power&#13;&#10;consumptions measured using The Tower System&#13;&#10;module (TWR-VF65GS10). To increase power efficiency,&#13;&#10;several po None /docs/en/application-note/AN4807.pdf English documents 1160230 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4807.pdf VFxxx Power Consumption and Options - AN4807 /docs/en/application-note/AN4807.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N VFxxx Power Consumption and Options - AN4807 1.2 MB AN4807 N 1380749321014731519258 /docs/en/application-note/AN4755.pdf 2016-10-31 1371065276603710447722 PSP 7 Jun 26, 2013 Application Note The VFxxx family features a heterogeneous dual-core solution that combines the Arm<sup>&#174;</sup> Cortex<sup>&#174;</sup> -A5 and Arm Cortex<sup>&#174;</sup> -M4 cores. The family also features dual USB 2.0 OTG controllers with integrated PHY, dual 10/100 Ethernet controllers with L2 switch, 1.5 MB of on-chip SRAM and a rich suite of communication, connectivity and human-machine interfaces (HMI). The VF6xx family is pin-and software-compatible with the VF[3,5,6] families. VFxxx VF6xx devices include multiple serial interfaces including UARTs None /docs/en/application-note/AN4755.pdf English documents 467125 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4755.pdf AN4755:CAN Booting Procedure for VFxxx Controller Solutions - Application Note /docs/en/application-note/AN4755.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4755:CAN Booting Procedure for VFxxx Controller Solutions - Application Note 467.1 KB AN4755 N 1371065276603710447722 /docs/en/application-note/AN4651.pdf 2016-10-31 1359384905641705695317 PSP 8 Mar 23, 2013 Application Note AN4651: Each Animation and Compositing Engine (2D-ACE) module on the VFxxx MCU family is capable of driving a TFT LCD panel of different sizes. None /docs/en/application-note/AN4651.pdf English documents 234456 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4651.pdf AN4651, TFT Panel Support in the VFxxx Microcontroller Family - Application Notes /docs/en/application-note/AN4651.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4651, TFT Panel Support in the VFxxx Microcontroller Family - Application Notes 234.5 KB AN4651 N 1359384905641705695317 /docs/en/application-note/AN4647.pdf 2016-10-31 1358539513172704485942 PSP 9 Jan 18, 2013 Application Note The VFxxx family of microcontrollers features up to two independent display peripherals that allow it to drive up to two TFT LCD panels. The 2D-ACE module features a rich set of capabilities that allow you to build engaging and dynamic graphic content from pre-rendered images and display this content on a wide range of TFT LCD panels. This application note explains the steps to configure and use the 2D-ACE with TFT LCD panels and how to display and blend graphics on each panel. See nxp.com for more d None /docs/en/application-note/AN4647.pdf English documents 311527 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4647.pdf Configuring and Using the 2D-ACE on VFxxx Microcontrollers /docs/en/application-note/AN4647.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Configuring and Using the 2D-ACE on VFxxx Microcontrollers 311.5 KB AN4647 N 1358539513172704485942 /docs/en/application-note/AN4635.pdf 2016-10-31 1353481315213729879315 PSP 10 Nov 20, 2012 Application Note This application note walks through an example of generating an inverted data enable (DE) signal for a TFT panel in order to demonstrate how the TCON module might be used to avoid adding external logic to interface to a TFT panel. None /docs/en/application-note/AN4635.pdf English documents 297410 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4635.pdf Using the VFxxx TCON Module /docs/en/application-note/AN4635.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Using the VFxxx TCON Module 297.4 KB AN4635 N 1353481315213729879315 /docs/en/application-note/AN4512.pdf 2016-10-31 1338827711778724735662 PSP 11 May 15, 2012 Application Note The QuadSPI module has had some significant changes made for implementation on the Vybrid<sup>&#174;</sup> MCU. These changes will be discussed in this application note in comparison to the QuadSPI versions implemented on MPC5606S and MPC5645S MCUs, and some code examples will be shown. None /docs/en/application-note/AN4512.pdf English documents 349924 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4512.pdf Quad Serial Peripheral Interface (QuadSPI) Module Updates /docs/en/application-note/AN4512.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Quad Serial Peripheral Interface (QuadSPI) Module Updates 349.9 KB AN4512 N 1338827711778724735662 数据手册 1 /docs/en/data-sheet/VYBRIDFSERIESEC.pdf 2018-01-11 1369942390871751273117 PSP 2 Sep 18, 2023 Data Sheet VYBRIDFSERIESEC: VF6xx, VF5xx, VF3xx Data Sheet. This document provides electrical characteristics for the Vybrid<sup>&#174;</sup> F Series of microcontrollers. None /docs/en/data-sheet/VYBRIDFSERIESEC.pdf English documents 1707333 None 980000996212993340 2023-09-18 N /docs/en/data-sheet/VYBRIDFSERIESEC.pdf VF6xx, VF5xx, VF3xx - Data Sheet /docs/en/data-sheet/VYBRIDFSERIESEC.pdf documents 980000996212993340 Data Sheet N en None Y pdf 10 N N VF6xx, VF5xx, VF3xx - Data Sheet 1.7 MB VYBRIDFSERIESEC N 1369942390871751273117 用户指南 3 /docs/en/user-guide/VFXXXHDUG.pdf 2016-10-31 1415817969986714383187 PSP 12 May 14, 2015 User Guide The purpose of this document is to help hardware engineers design and test their boards based on the VFxxx series of processors. It provides information on design checklists and&#13;&#10;board layout recommendations to ensure first-pass success and pave ways to avoid board bring-up problems. It also provides information on board-level testing and simulation such as properly configuring the JTAG tools, using BSDL for board-level testing, using the IBIS model for electrical integrity simulation, and more. None /docs/en/user-guide/VFXXXHDUG.pdf English documents 2432170 None 132339537837198660 2023-06-19 N /docs/en/user-guide/VFXXXHDUG.pdf Hardware Development Guide for VFxxx Family of MCUs /docs/en/user-guide/VFXXXHDUG.pdf documents 132339537837198660 User Guide N en None Y pdf 1 N N Hardware Development Guide for VFxxx Family of MCUs 2.4 MB VFXXXHDUG N 1415817969986714383187 /docs/en/user-guide/EVBVF522R3UG.pdf 2016-10-31 1416347471909721901579 PSP 13 Nov 18, 2014 User Guide This user&#8217;s guide details the setup and configuration of the NXP Automotive Evaluation Board. The EVB is intended to &#13;&#10;provide a mechanism for easy customer evaluation of the heterogeneous dual-core VFxxx family, and to facilitate hardware and software development.&#13;&#10; None /docs/en/user-guide/EVBVF522R3UG.pdf English documents 2778610 None 132339537837198660 2023-06-19 N /docs/en/user-guide/EVBVF522R3UG.pdf EVB-VF522R3 Platform User’s Guide /docs/en/user-guide/EVBVF522R3UG.pdf documents 132339537837198660 User Guide N en None Y pdf 0 N N EVB-VF522R3 Platform User’s Guide 2.8 MB EVBVF522R3UG N 1416347471909721901579 /docs/en/user-guide/TWRVF65GS10UG.pdf 2016-10-31 1409242699366726207682 PSP 14 Aug 28, 2014 User Guide The TWR-VF65GS10 Tower<sup>&#174;</sup> Controller Module is&#13;&#10;compatible with the Tower System and features the heterogeneous dual-core VFxxx VF6xx. None /docs/en/user-guide/TWRVF65GS10UG.pdf English documents 1473248 None 132339537837198660 2023-06-18 N /docs/en/user-guide/TWRVF65GS10UG.pdf TWR-VF65GS10 Tower Module User's Guide /docs/en/user-guide/TWRVF65GS10UG.pdf documents 132339537837198660 User Guide N en None Y pdf 1.2 N N TWR-VF65GS10 Tower Module User's Guide 1.5 MB TWRVF65GS10UG N 1409242699366726207682 简介 1 /docs/zh/fact-sheet/VYBRIDVF5FS.pdf 2016-10-31 1332537781124727325398zh PSP 1 Fact Sheet 简介 None /docs/zh/fact-sheet/VYBRIDVF5FS.pdf Chinese 281010 None Fact Sheet 2022-12-07 N /docs/zh/fact-sheet/VYBRIDVF5FS.pdf Vybrid VF5xx系列 - 产品简介 /docs/zh/fact-sheet/VYBRIDVF5FS.pdf documents 736675474163315314 Fact Sheet N Y zh None t523 0 N N VFxxx VF5xx Family - Fact Sheet 281.0 KB VFXXXVF5FS N 1332537781124727325398 true Y Products
