UCODE 8/8m | NXP 半导体

UCODE 8/8m

产品详情

框图

UCODE 8/8m Block Diagram

UCODE 8/8m Block Diagram

Features

Key Features

  • Read sensitivity -23dBm
  • Write sensitivity -18dBm
  • Innovative functionality
    • Self-Adjust
    • Memory Safeguard
    • Untraceable
    • Pre-serialization for 96-bit EPC
    • Integrated Product Status Flag (PSF)
  • Compatible with single-slit antenna
  • Up to 128-bit EPC
  • 96-bit Unique Tag Identifie (TID) factory locked, including 48-bit unique serial number
  • EPC Gen2v2

Memory

  • 128-bit/96-bit (UCODE 8/UCODE 8m) of EPC memory
  • Supports pre-serialization for 96-bit EPC
  • 96-bit Tag IDentifier (TID) factory locked
  • 48-bit unique serial number factory-encoded into TID
  • 0-bit/32-bit (UCODE 8/UCODE 8m) User Memory
  • 32-bit kill password to permanently disable the tag
  • 32-bit access password
  • Wide operating temperature range: -40 °C up to +85 °C
  • EPC Gen2v2

Supported Features

  • All mandatory commands of EPC global specification V.2.0.1 are implemented inclunding:
    • (Perma) LOCK
    • Kill Command
  • Product Status Flag bit: enables the UHF RFID tag to be used as EAS (Electronic Article Surveillance) tag without the need for a back-end data base.
  • Auto Adjust for automated tag performance optimization
  • Memory Safeguard: enables countermeasures, like parity and margin checks as well as automated error correction, to ensure integrity of customer data.
  • Brand Identifier: enables product authentication verification

更多

购买/参数

3 结果

不包含 3 不推荐用于新设计

订购

计算机辅助设计模型

状态

产品类别

EPC Memory (bit)

User Memory Size (Bit)

Data Retention

Contactless card read sensitivity (dBm)

Write Endurance

Password Protection

Wafer Diameter

Wafer Tape Type

Wafer Dicing Method

使用寿命终止

UCODE 8

128

0

20

-23

100000

Y

8″ FFC

UV tape

laser diced

使用寿命终止

UCODE 8m

96

32

20

-23

100000

Y

8″ FFC

UV tape

laser diced

使用寿命终止

UCODE 8m

96

32

20

-23

100000

Y

12″ FFC

UV tape

blade diced, plasma diced

文档

快速参考恩智浦 文档类别.

5 文件

紧凑列表

设计文件

硬件

快速参考恩智浦 板类型.

1-5 / 7 硬件

  • Hana Direct Attached Tire Tag
    硅设备/组件

    Hana Direct Attached Tire Tag

  • Different IC category, including HF & UHF.
    硅设备/组件

    Different IC category, including HF & UHF.

  • SAG Hard Tag Selection
    硅设备/组件

    SAG Hard Tag Selection

  • Shang Yang RFID Technology Yangzhou Co.,Ltd
    硅设备/组件

    Shang Yang RFID Technology Yangzhou Co.,Ltd

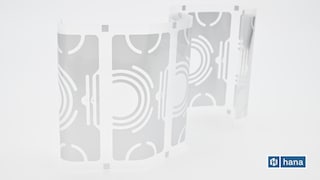

  • Hana Inlay offering
