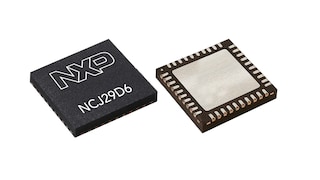

Trimension™NCJ29D6：适用于汽车测距和雷达应用的安全UWB IC

NCJ29D6
正常供应

滚动图片以放大

Trimension™ NCJ29D6是一款完全集成的单芯片脉冲无线超宽带低能耗收发器IC，符合IEEE802.15.4 HRP UWB PHY和IEEE802.15.4z BPRF/HPRF UWB PHY标准。它专为汽车环境中的安全测距和雷达应用而设计。

NCJ29D6不仅利用数字钥匙功能实现安全的真正免手动汽车门禁，还利用雷达能力增强了这一功能。它能够实现儿童遗留检测(CPD)和踢动感应等应用，轻松开启后备箱。NCJ29D6支持组合测距和雷达功能，能够最大化系统价值并降低系统成本。

框图

NCJ29D6

NCJ29D6-BD
获取框图PDF

特性

一般特性

  • IEEE802.15.4向前和向后兼容
  • 双天线接口，可以实现天线分集、最大比率组合和到达角估计
  • 支持组合测距和雷达功能，降低系统成本
  • 利用恩智浦雷达灵敏度提升技术，实现一流的全双工UWB雷达性能。
  • 强大的抗干扰能力(例如Wi-Fi)弹性
  • 集成了Arm®Cortex®内核和CAN FD控制器
  • 单独提供符合CCC和FiRa标准的一体化MAC软件

NCJ29D6对照表

型号 说明
NCJ29D6AHN 支持安全测距(智能门禁/数字钥匙)和短程雷达；运行片上CCC/FiRa MAC
NCJ29D6AHN-H 支持安全门禁(数字钥匙)和短程雷达；运行片上CCC/FiRa MAC；支持Ch10+Ch12
NCJ29D6BHN 支持安全测距(智能门禁/数字钥匙)；运行片上CCC/FiRa MAC
NCJ29D6BHN-H 支持安全测距(智能门禁/数字钥匙)；运行片上CCC/FiRa MAC；支持Ch10+Ch12

购买/参数

2 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

封装端接数

NCJ29D6AHN

正常供应

HVQFN40

40

NCJ29D6BHN

正常供应

HVQFN40

40
