PowerQUICC® II处理器带256个通道。HDLC，UTOPIA II，10/100以太网，IMA

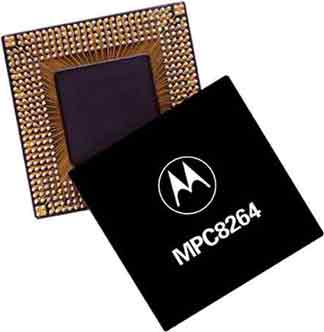

MPC8264
停产
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

基于Power Architecture技术的恩智浦产品

PowerQUICC® II™集成通信处理器系列，将网络和通信外设的处理能力完美地集成在一起，为用户提供了一个创新的全套系统解决方案，来构建高端通信系统。恩智浦半导体PowerQUICC® II处理器系列是新一代领先的PowerQUICC® I™系列集成通信处理器，在器件运行的所有方面都可提供更高的性能，包括更强的灵活性、更丰富的能力和更高的集成度。

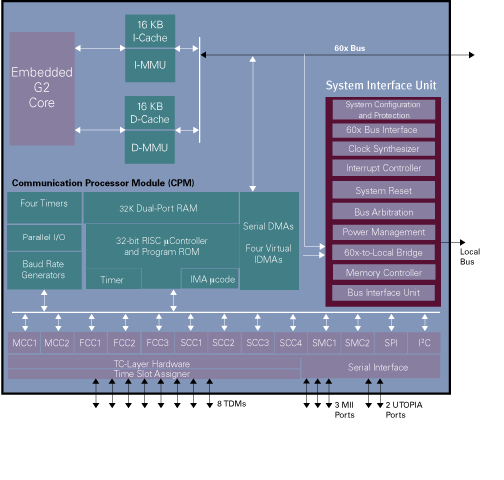

恩智浦领先的PowerQUICC® I架构集成了两个处理模块。其中一个模块是一个高性能嵌入式G2内核，第二个模块为通信处理器模块(CPM)。PowerQUICC® II处理器的CPM可最多支持3个快速串行通信控制器(FCC)，两个多通道控制器(MCC)，4个串行通信控制器(SCC)，两个串行管理控制器(SMC)，一个串行外设接口(SPI)和一个I2C接口。G2内核与CPM的集成，加上多功能和高性能的PowerQUICC® II处理器系列，使用户具有巨大潜力开发网络和通信产品，同时可极大地加快产品上市和开发阶段。

N true 0 PSPMPC8264zh 37 产品简介 Product Brief t532 2 参考手册 Reference Manual t877 5 封装信息 Package Information t790 1 应用笔记 Application Note t789 24 应用笔记软件 Application Note Software t783 3 数据手册 Data Sheet t520 1 选型指南 Selector Guide t528 1 zh zh zh 数据手册 Data Sheet 1 1 2 English This document contains detailed information on power considerations, DC/AC electrical characteristics, and AC timing specifications for the MPC82505 .25mm (HiP3 4) devices in the PowerQUICC<sup>&#174;</sup> II&#8482; MPC8260 communications processor family. These devices include the MPC8260, the MPC8255, the MPC8264, the MPC8265, and the MPC8266.&#13;&#10; A997133084246 PSP 1.1 MB None None documents None A997133084246 /docs/en/data-sheet/MPC8260AEC.pdf 1053573 /docs/en/data-sheet/MPC8260AEC.pdf MPC8260AEC documents N N 2016-10-31 MPC8260A PowerQUICC II Integrated Communications Processor Hardware Specifications (for HiP4 0.25um) /docs/en/data-sheet/MPC8260AEC.pdf /docs/en/data-sheet/MPC8260AEC.pdf Y Data Sheet N 980000996212993340 2024-11-04 pdf N en Jun 9, 2009 980000996212993340 Data Sheet Y N MPC8260A PowerQUICC II Integrated Communications Processor Hardware Specifications (for HiP4 0.25um) 参考手册 Reference Manual 5 2 2 English The PowerQUICC<sup>&#174;</sup> II&#8482; is a versatile communications processor that integrates on one chip a high-performance PowerPC&#8482; RISC microprocessor, a very flexible system integration unit, and many communications peripheral controllers that can be used in a variety of applications, particularly in communications and networking systems. D966579017303 PSP 15.1 MB None None documents None D966579017303 /docs/en/reference-manual/MPC8260UM.pdf 15149384 /docs/en/reference-manual/MPC8260UM.pdf MPC8260UM documents N 2000-08-17 MPC8260 PowerQUICC<sup>&#174;</sup> II Family Reference Manual /docs/en/reference-manual/MPC8260UM.pdf /docs/en/reference-manual/MPC8260UM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Jan 19, 2006 500633505221135046 Reference Manual Y N MPC8260 PowerQUICC<sup>&#174;</sup> II Family Reference Manual 3 3 English Programming Environments Manual for 32-Bit Implementations of the Power Architecture. E966578690432 PSP 6.1 MB Registration without Disclaimer None documents Extended E966578690432 /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf 6125455 /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf MPCFPE32B documents Y N 2016-10-31 Programming Environments Manual for 32-Bit Implementations of the Power Architecture /webapp/Download?colCode=MPCFPE32B&lang_cd=zh /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf Reference Manual N 500633505221135046 2022-12-07 pdf Y en Oct 17, 2005 500633505221135046 Reference Manual Y N Programming Environments Manual for 32-Bit Implementations of the Power Architecture 4 0.1 English User's Manual A995913155484 PSP 3.4 MB None None documents None A995913155484 /docs/en/reference-manual/MPC60XBUSRM.pdf 3416811 /docs/en/reference-manual/MPC60XBUSRM.pdf MPC60XBUSRM documents N 2001-07-23 The Bus Interface for 32-Bit Microprocessors that Implement the PowerPC Architecture /docs/en/reference-manual/MPC60XBUSRM.pdf /docs/en/reference-manual/MPC60XBUSRM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Jan 14, 2004 500633505221135046 Reference Manual Y N The Bus Interface for 32-Bit Microprocessors that Implement the PowerPC Architecture 5 1 English The G2 core is a low-power implementation of this microprocessor family of reduced instruction set computing (RISC) microprocessors. The core implements the 32-bit portion of the PowerPC architecture, which defines 32-bit effective addresses, integer data types of 8, 16, and 32 bits, and floating-point data types of 32 and 64 bits. 10ZtBxCL PSP 7.8 MB Registration without Disclaimer None documents Extended 10ZtBxCL /secured/assets/documents/en/reference-manual/G2CORERM.pdf 7757744 /secured/assets/documents/en/reference-manual/G2CORERM.pdf G2CORERM documents Y N 2016-10-31 G2 Core Reference Manual /webapp/Download?colCode=G2CORERM&lang_cd=zh /secured/assets/documents/en/reference-manual/G2CORERM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf Y en Jun 27, 2003 500633505221135046 Reference Manual Y N G2 Core Reference Manual 6 0.1 English Addeddum to the MPC8260 RevB Microcode Supplement D1020717501807 PSP 429.5 KB None None documents None D1020717501807 /docs/en/reference-manual/MPC8260ESS7UMAD.pdf 429478 /docs/en/reference-manual/MPC8260ESS7UMAD.pdf MPC8260ESS7UMAD documents N 2002-05-06 Enhanced SS7 Microcode Specification /docs/en/reference-manual/MPC8260ESS7UMAD.pdf /docs/en/reference-manual/MPC8260ESS7UMAD.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Dec 5, 2002 500633505221135046 Reference Manual Y N Enhanced SS7 Microcode Specification 应用笔记 Application Note 24 7 0 English Reviewing the troubleshoot microcontroller when there is a malfunction module. 1641302649210707506203 PSP 303.0 KB None None documents None 1641302649210707506203 /docs/en/application-note/AN13461.pdf 302971 /docs/en/application-note/AN13461.pdf AN13461 documents N N 2022-01-04 AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note /docs/en/application-note/AN13461.pdf /docs/en/application-note/AN13461.pdf Application Note N 645036621402383989 2022-12-07 en Nov 30, 2021 645036621402383989 Application Note Y N AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note 0 Chinese Reviewing the troubleshoot microcontroller when there is a malfunction module. 1641302649210707506203zh PSP 303.0 KB None None documents None 1641302649210707506203 /docs/zh/application-note/AN13461.pdf 302971 /docs/zh/application-note/AN13461.pdf AN13461 documents N N 2022-01-04 AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note /docs/zh/application-note/AN13461.pdf /docs/zh/application-note/AN13461.pdf Application Note N 645036621402383989 2022-12-07 pdf N zh May 9, 2022 645036621402383989 Application Note Y N 恩智浦微控制器故障排除清单 8 3 English This document is a supplement to the SEC 2/3x reference device driver. 1224778148188710027580 PSP 1.1 MB Registration without Disclaimer None documents Extended 1224778148188710027580 /secured/assets/documents/en/application-note/AN3645.pdf 1147132 /secured/assets/documents/en/application-note/AN3645.pdf AN3645 documents Y N 2016-10-31 SEC 2/3x Descriptor Programmer’s Guide /webapp/Download?colCode=AN3645&lang_cd=zh /secured/assets/documents/en/application-note/AN3645.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en Apr 28, 2017 645036621402383989 Application Note N SEC 2/3x Descriptor Programmer’s Guide 9 0 English High-level data link control (HDLC) is widely used in the telecommunications and networking industries. NXP&#8217;s PowerQUICC&#8482; communications processors have extensive support for HDLC protocol through the communications processor module (CPM) and QUICC Engine&#8482; technologies.&#13;&#10;&#13;&#10;This application note explains how NXP&#8217;s existing&#13;&#10;PowerQUICC communications processors use the CPM and QUICC Engine technologies to support the HDLC protocol and provides HDLC e 1258066893562722616236 PSP 496.6 KB None None documents None 1258066893562722616236 /docs/en/application-note/AN3966.pdf 496625 /docs/en/application-note/AN3966.pdf AN3966 documents N 2016-10-31 PowerQUICC™ HDLC Support and Example Code /docs/en/application-note/AN3966.pdf /docs/en/application-note/AN3966.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 10, 2009 645036621402383989 Application Note N PowerQUICC™ HDLC Support and Example Code 10 2.0 English This application note provides information that could affect customer designs that are being migrated from an earlier revision of a PowerQUICC<sup>&#174;</sup> II&#8482; device. The MPC82xx family members contain PowerPC&#8482; core processors, which are built on Power Architecture&#8482; technology. A1024615477808 PSP 681.4 KB None None documents None A1024615477808 /docs/en/application-note/AN2291.pdf 681433 /docs/en/application-note/AN2291.pdf AN2291 documents N 2002-06-20 Differences among PowerQUICC<sup>&#174;</sup> II Devices and Revisions /docs/en/application-note/AN2291.pdf /docs/en/application-note/AN2291.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 2, 2008 645036621402383989 Application Note Y N Differences among PowerQUICC<sup>&#174;</sup> II Devices and Revisions 11 1 English Application Note 1074550276395696020225 PSP 902.0 KB None None documents None 1074550276395696020225 /docs/en/application-note/AN2587.pdf 902015 /docs/en/application-note/AN2587.pdf AN2587 documents N 2004-01-19 Software Migration from the NPe495H/L to PowerQUICC<sup>&#174;</sup> II /docs/en/application-note/AN2587.pdf /docs/en/application-note/AN2587.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jan 18, 2007 645036621402383989 Application Note Y N Software Migration from the NPe495H/L to PowerQUICC<sup>&#174;</sup> II 12 1 English Application Note 1071269268449714756450 PSP 709.0 KB None None documents None 1071269268449714756450 /docs/en/application-note/AN2638.pdf 709009 /docs/en/application-note/AN2638.pdf AN2638 documents N 2003-12-15 Effects of Clock Jitter on the MPC8260 (HiP3 and HiP4) /docs/en/application-note/AN2638.pdf /docs/en/application-note/AN2638.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jan 18, 2007 645036621402383989 Application Note Y N Effects of Clock Jitter on the MPC8260 (HiP3 and HiP4) 13 0 English This application note describes how to implement and use the auto-load (ALD) feature. 1168461981292718588989 PSP 460.6 KB None None documents None 1168461981292718588989 /docs/en/application-note/AN3352.pdf 460557 /docs/en/application-note/AN3352.pdf AN3352 documents N 2007-01-10 Using the PowerQUICC<sup>&#174;</sup> II Auto-Load Feature /docs/en/application-note/AN3352.pdf /docs/en/application-note/AN3352.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jan 10, 2007 645036621402383989 Application Note Y N Using the PowerQUICC<sup>&#174;</sup> II Auto-Load Feature 14 1 English This application note surveys power distribution circuits that deliver sufficient quiet supply to the MPC8260 PowerQUICC<sup>&#174;</sup> II family of integrated communications processors. 1074029100568717348483 PSP 562.3 KB None None documents None 1074029100568717348483 /docs/en/application-note/AN2586.pdf 562260 /docs/en/application-note/AN2586.pdf AN2586 documents N 2004-01-13 MPC8260 PowerQUICC<sup>&#174;</sup> II Family Power Distribution Trends /docs/en/application-note/AN2586.pdf /docs/en/application-note/AN2586.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jan 5, 2007 645036621402383989 Application Note Y N MPC8260 PowerQUICC<sup>&#174;</sup> II Family Power Distribution Trends 15 1 English This application note describes how the individual system blocks are affected by the individual reset sources and addresses other common questions when dealing with PowerQUICC<sup>&#174;</sup> II reset sources. 1071683545088713016137 PSP 462.8 KB None None documents None 1071683545088713016137 /docs/en/application-note/AN2585.pdf 462780 /docs/en/application-note/AN2585.pdf AN2585 documents N 2003-12-17 MPC82xx PowerQUICC<sup>&#174;</sup> II Reset: Sources, Effects, and Comments /docs/en/application-note/AN2585.pdf /docs/en/application-note/AN2585.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jan 4, 2007 645036621402383989 Application Note Y N MPC82xx PowerQUICC<sup>&#174;</sup> II Reset: Sources, Effects, and Comments 16 1 English Application Note 1073331070325692705496 PSP 505.7 KB None None documents None 1073331070325692705496 /docs/en/application-note/AN2579.pdf 505744 /docs/en/application-note/AN2579.pdf AN2579 documents N 2004-01-05 Porting Linux&#174; to the MPC8260ADS /docs/en/application-note/AN2579.pdf /docs/en/application-note/AN2579.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 28, 2006 645036621402383989 Application Note Y N Porting Linux&#174; to the MPC8260ADS 17 1 English AN2547SW.zip /secured/assets/documents/en/application-note-software/AN2547SW.zip /webapp/Download?colCode=AN2547SW&appType=license&docLang=en Detecting a CPM Overload on the PowerQUICC<sup>&#174;</sup> II 1065569242014723627300 PSP 471.9 KB None None documents None 1065569242014723627300 /docs/en/application-note/AN2547.pdf 471923 /docs/en/application-note/AN2547.pdf AN2547 documents N 2003-10-07 Detecting a CPM Overload on the PowerQUICC<sup>&#174;</sup> II /docs/en/application-note/AN2547.pdf /docs/en/application-note/AN2547.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 10, 2006 645036621402383989 Application Note Y N Detecting a CPM Overload on the PowerQUICC<sup>&#174;</sup> II 18 1 English Application note describing the design of a system containing a high performance MPC7410 RISC microprocessor and an MPC8260 V1033497279667 PSP 861.1 KB None None documents None V1033497279667 /docs/en/application-note/AN2347.pdf 861073 /docs/en/application-note/AN2347.pdf AN2347 documents N 2002-10-01 Using an MPC8260 and an MPC7410 with Shared Memory /docs/en/application-note/AN2347.pdf /docs/en/application-note/AN2347.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 8, 2006 645036621402383989 Application Note Y N Using an MPC8260 and an MPC7410 with Shared Memory 19 2 English This application note presents a series of timing diagrams for several UPM usage scenarios. All the timing diagrams are based on simulations and are for the 60x bus. V996756846613 PSP 526.0 KB None None documents None V996756846613 /docs/en/application-note/AN2179.pdf 526026 /docs/en/application-note/AN2179.pdf AN2179 documents N 2001-08-02 MPC8260 UPM Timing Diagram /docs/en/application-note/AN2179.pdf /docs/en/application-note/AN2179.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 20, 2006 645036621402383989 Application Note Y N MPC8260 UPM Timing Diagram 20 1 English This application note discusses the architectural differences to consider when migrating from a PowerQUICC<sup>&#174;</sup> II to a PowerQUICC II Pro device. 1137095858557723377952 PSP 619.6 KB None None documents None 1137095858557723377952 /docs/en/application-note/AN2915.pdf 619610 /docs/en/application-note/AN2915.pdf AN2915 documents N 2006-01-12 Design Migration from the PowerQUICC<sup>&#174;</sup> II Family to the PowerQUICC II Pro Family /docs/en/application-note/AN2915.pdf /docs/en/application-note/AN2915.pdf Application Note N 645036621402383989 2022-12-07 pdf en Mar 16, 2006 645036621402383989 Application Note Y N Design Migration from the PowerQUICC<sup>&#174;</sup> II Family to the PowerQUICC II Pro Family 21 2 English This applicationnote provides recommendatins for designs based on devices of the PowerQUICC<sup>&#174;</sup> family of integrated communications processors. M1024615468356 PSP 577.0 KB None None documents None M1024615468356 /docs/en/application-note/AN2290.pdf 576958 /docs/en/application-note/AN2290.pdf AN2290 documents N 2002-06-20 MPC8260 PowerQUICC<sup>&#174;</sup> II Design Checklist /docs/en/application-note/AN2290.pdf /docs/en/application-note/AN2290.pdf Application Note N 645036621402383989 2022-12-07 pdf en Feb 23, 2006 645036621402383989 Application Note Y N MPC8260 PowerQUICC<sup>&#174;</sup> II Design Checklist 22 1 English Memory technology encompasses a wide range of options. The focus of this application note is memory called synchronous dynamic random access memory (SDRAM). Dynamic random access memory (DRAM) has evolved over the years into the most common form of memory called synchronous DRAM, or SDRAM. 1127515956782714935853 PSP 489.4 KB None None documents None 1127515956782714935853 /docs/en/application-note/AN2922.pdf 489437 /docs/en/application-note/AN2922.pdf AN2922 documents N 2005-09-23 SDRAM and PowerQUICC<sup>&#174;</sup> II: An Introduction /docs/en/application-note/AN2922.pdf /docs/en/application-note/AN2922.pdf Application Note N 645036621402383989 2022-12-07 pdf en Dec 13, 2005 645036621402383989 Application Note Y N SDRAM and PowerQUICC<sup>&#174;</sup> II: An Introduction 23 2 English The following timing diagrams are generated based on the simulations: 60x bus access, Local bus access, Early termination by GTA, Read-Modify-Write Cycle to GPCM, ARTRY cycle. The general-purpose chip-select machine (GPCM) allows a glueless and flexible interface between the MPC8260, SRAM, EPROM, FEPROM, ROM device, and external peripherals. W996755906740 PSP 595.5 KB None None documents None W996755906740 /docs/en/application-note/AN2176.pdf 595548 /docs/en/application-note/AN2176.pdf AN2176 documents N 2001-08-02 MPC8260 GPCM Timing Diagram /docs/en/application-note/AN2176.pdf /docs/en/application-note/AN2176.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 7, 2005 645036621402383989 Application Note Y N MPC8260 GPCM Timing Diagram 24 1 English CPM Architecture and Downloading RAM Microcodes on the PowerQUICC<sup>&#174;</sup> II Family, application note 1096643228438725418697 PSP 215.2 KB None None documents None 1096643228438725418697 /docs/en/application-note/AN2754.zip 215215 /docs/en/application-note/AN2754.zip AN2754 documents N N 2016-10-31 CPM Architecture and Downloading RAM Microcodes on the PowerQUICC II Family /docs/en/application-note/AN2754.zip /docs/en/application-note/AN2754.zip Application Note N 645036621402383989 2022-12-07 zip N en Jan 6, 2005 645036621402383989 Application Note Y N CPM Architecture and Downloading RAM Microcodes on the PowerQUICC II Family 25 1 English Application note V1033497290717 PSP 278.3 KB None None documents None V1033497290717 /docs/en/application-note/AN2349.pdf 278316 /docs/en/application-note/AN2349.pdf AN2349 documents N 2002-10-01 MPC8260 Reset and Configuration Word /docs/en/application-note/AN2349.pdf /docs/en/application-note/AN2349.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 15, 2004 645036621402383989 Application Note Y N MPC8260 Reset and Configuration Word 26 0.1 English J989336344057 PSP 249.6 KB None None documents None J989336344057 /docs/en/application-note/AN2059.pdf 249563 /docs/en/application-note/AN2059.pdf AN2059 documents N 2001-05-08 CPM Hints /docs/en/application-note/AN2059.pdf /docs/en/application-note/AN2059.pdf Application Note N 645036621402383989 2022-12-07 pdf en Dec 5, 2003 645036621402383989 Application Note Y N CPM Hints 27 0 English Simplified Mnemonics for PowerPC Instructions. 1064950886097724682016 PSP 1.4 MB None None documents None 1064950886097724682016 /docs/en/application-note/AN2491.pdf 1379878 /docs/en/application-note/AN2491.pdf AN2491 documents N 2003-09-30 Simplified Mnemonics for PowerPC Instructions /docs/en/application-note/AN2491.pdf /docs/en/application-note/AN2491.pdf Application Note N 645036621402383989 2022-12-07 pdf en Sep 30, 2003 645036621402383989 Application Note Y N Simplified Mnemonics for PowerPC Instructions 28 0 English Application Note regarding MPC8260 dual-bus architecture A1034713307446 PSP 335.5 KB None None documents None A1034713307446 /docs/en/application-note/AN2335.pdf 335524 /docs/en/application-note/AN2335.pdf AN2335 documents N 2002-10-15 MPC8260 Dual-Bus Architecture and Performance Considerations /docs/en/application-note/AN2335.pdf /docs/en/application-note/AN2335.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 15, 2002 645036621402383989 Application Note Y N MPC8260 Dual-Bus Architecture and Performance Considerations 29 0.0 English Application Note D1016574497045 PSP 307.2 KB None None documents None D1016574497045 /docs/en/application-note/AN2271.pdf 307166 /docs/en/application-note/AN2271.pdf AN2271 documents N 2002-03-19 MPC8260 PowerQUICC<sup>&#174;</sup> II Thermal Resistor Guide /docs/en/application-note/AN2271.pdf /docs/en/application-note/AN2271.pdf Application Note N 645036621402383989 2022-12-07 pdf en Mar 19, 2002 645036621402383989 Application Note Y N MPC8260 PowerQUICC<sup>&#174;</sup> II Thermal Resistor Guide 30 0 English Application Note N976307449793 PSP 271.0 KB None None documents None N976307449793 /docs/en/application-note/AN2070.pdf 271014 /docs/en/application-note/AN2070.pdf AN2070 documents N 2000-12-08 MPC8260 PowerQUICC<sup>&#174;</sup> II Data Error Protection Implementation /docs/en/application-note/AN2070.pdf /docs/en/application-note/AN2070.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jun 15, 2000 645036621402383989 Application Note Y N MPC8260 PowerQUICC<sup>&#174;</sup> II Data Error Protection Implementation 应用笔记软件 Application Note Software 3 31 0 English 1258066894053701788655 PSP 330.9 KB Registration With Click-Thru Software Licensing Agreement 1395958162559706127527 documents Extended 1258066894053701788655 /secured/assets/documents/en/application-note-software/AN3966SW.zip 330857 /secured/assets/documents/en/application-note-software/AN3966SW.zip AN3966SW documents Y N 2016-10-31 Software to accompany application note AN3966 /webapp/Download?colCode=AN3966SW&appType=license&lang_cd=zh /secured/assets/documents/en/application-note-software/AN3966SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Nov 10, 2009 789425793691620447 Application Note Software N Software to accompany application note AN3966 32 2 English AN2810, PowerQUICC<sup>&#174;</sup> UPM Configuration, PowerQUICC, Universal Programmable Machine, Configuration, Application Note 1113503860374718430905 PSP 5.6 KB Registration With Click-Thru Software Licensing Agreement 1395958162559706127527 documents Extended 1113503860374718430905 /secured/assets/documents/en/application-note-software/AN2810SW.zip 5555 /secured/assets/documents/en/application-note-software/AN2810SW.zip AN2810SW documents Y N 2005-04-14 AN2810 Supporting Files /webapp/Download?colCode=AN2810SW&appType=license&lang_cd=zh /secured/assets/documents/en/application-note-software/AN2810SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Aug 15, 2006 789425793691620447 Application Note Software N AN2810 Supporting Files 33 0 English application note software 1065569747106705615329 PSP 295.3 KB Registration With Click-Thru Software Licensing Agreement 1395958162559706127527 documents Extended 1065569747106705615329 /secured/assets/documents/en/application-note-software/AN2547SW.zip 295305 /secured/assets/documents/en/application-note-software/AN2547SW.zip AN2547SW documents Y N 2003-10-07 Software Detecting CPM Overload (accompanies AN2547) /webapp/Download?colCode=AN2547SW&appType=license&lang_cd=zh /secured/assets/documents/en/application-note-software/AN2547SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Jun 30, 2003 789425793691620447 Application Note Software N Software Detecting CPM Overload (accompanies AN2547) 封装信息 Package Information 1 34 1 English Presentation on understanding the TBGA packaging 1060112435258703527038 PSP 9.2 MB None None documents None 1060112435258703527038 /docs/en/package-information/TBGAPRESPKG.pdf 9224392 /docs/en/package-information/TBGAPRESPKG.pdf TBGAPRESPKG documents N 2003-08-05 TBGA Packaging Customer Tutorial /docs/en/package-information/TBGAPRESPKG.pdf /docs/en/package-information/TBGAPRESPKG.pdf Package Information N 302435339416912908 2022-12-07 pdf en Dec 13, 2006 302435339416912908 Package Information Y N TBGA Packaging Customer Tutorial 产品简介 Product Brief 2 35 0 English product brief 1118266163094700804380 PSP 438.0 KB None None documents None 1118266163094700804380 /docs/en/product-brief/QUICC_CODESPB.pdf 438044 /docs/en/product-brief/QUICC_CODESPB.pdf QUICC_CODESPB documents N 2005-06-08 QUICC Code Solutions for the PowerQUICC<sup>&#174;</sup> II and PowerQUICC III Families /docs/en/product-brief/QUICC_CODESPB.pdf /docs/en/product-brief/QUICC_CODESPB.pdf Product Brief N 899114358132306053 2022-12-07 pdf en Jun 8, 2005 899114358132306053 Product Brief Y N QUICC Code Solutions for the PowerQUICC<sup>&#174;</sup> II and PowerQUICC III Families 36 2.2 English MPC8260 PowerQUICC<sup>&#174;</sup> II Technical Summary D975547810253 PSP 260.8 KB None None documents None D975547810253 /docs/en/product-brief/MPC8260TS.pdf 260799 /docs/en/product-brief/MPC8260TS.pdf MPC8260TS documents N 2000-11-29 MPC8260 PowerQUICC<sup>&#174;</sup> II Technical Summary /docs/en/product-brief/MPC8260TS.pdf /docs/en/product-brief/MPC8260TS.pdf Product Brief N 899114358132306053 2022-12-07 pdf en Nov 12, 2001 899114358132306053 Product Brief Y N MPC8260 PowerQUICC<sup>&#174;</sup> II Technical Summary 选型指南 Selector Guide 1 37 1 English OSI Layer 2 and Layer 3 Router 10f3RLj3 PSP 168.1 KB None None documents None 10f3RLj3 /docs/en/product-selector-guide/SG2113.pdf 168106 /docs/en/product-selector-guide/SG2113.pdf SG2113 documents N N 2016-10-31 ARCHIVED - SG2113 OSI Layer 2 and Layer 3 Router /docs/en/product-selector-guide/SG2113.pdf /docs/en/product-selector-guide/SG2113.pdf Selector Guide N 553557935274807777 2022-12-07 pdf N en Jan 1, 2005 553557935274807777 Selector Guide Y N ARCHIVED - SG2113 OSI Layer 2 and Layer 3 Router false 0 MPC8264 downloads zh-Hans true 1 Y PSP 产品简介 2 /docs/en/product-brief/QUICC_CODESPB.pdf 2005-06-08 1118266163094700804380 PSP 35 Jun 8, 2005 Product Brief product brief None /docs/en/product-brief/QUICC_CODESPB.pdf English documents 438044 None 899114358132306053 2022-12-07 /docs/en/product-brief/QUICC_CODESPB.pdf QUICC Code Solutions for the PowerQUICC<sup>&#174;</sup> II and PowerQUICC III Families /docs/en/product-brief/QUICC_CODESPB.pdf documents 899114358132306053 Product Brief N en None Y pdf 0 N QUICC Code Solutions for the PowerQUICC<sup>&#174;</sup> II and PowerQUICC III Families 438.0 KB QUICC_CODESPB N 1118266163094700804380 /docs/en/product-brief/MPC8260TS.pdf 2000-11-29 D975547810253 PSP 36 Nov 12, 2001 Product Brief MPC8260 PowerQUICC<sup>&#174;</sup> II Technical Summary None /docs/en/product-brief/MPC8260TS.pdf English documents 260799 None 899114358132306053 2022-12-07 /docs/en/product-brief/MPC8260TS.pdf MPC8260 PowerQUICC<sup>&#174;</sup> II Technical Summary /docs/en/product-brief/MPC8260TS.pdf documents 899114358132306053 Product Brief N en None Y pdf 2.2 N MPC8260 PowerQUICC<sup>&#174;</sup> II Technical Summary 260.8 KB MPC8260TS N D975547810253 参考手册 5 /docs/en/reference-manual/MPC8260UM.pdf 2000-08-17 D966579017303 PSP 2 Jan 19, 2006 Reference Manual The PowerQUICC<sup>&#174;</sup> II&#8482; is a versatile communications processor that integrates on one chip a high-performance PowerPC&#8482; RISC microprocessor, a very flexible system integration unit, and many communications peripheral controllers that can be used in a variety of applications, particularly in communications and networking systems. None /docs/en/reference-manual/MPC8260UM.pdf English documents 15149384 None 500633505221135046 2022-12-07 /docs/en/reference-manual/MPC8260UM.pdf MPC8260 PowerQUICC<sup>&#174;</sup> II Family Reference Manual /docs/en/reference-manual/MPC8260UM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 2 N MPC8260 PowerQUICC<sup>&#174;</sup> II Family Reference Manual 15.1 MB MPC8260UM N D966579017303 /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf 2016-10-31 E966578690432 PSP 3 Oct 17, 2005 Reference Manual Programming Environments Manual for 32-Bit Implementations of the Power Architecture. Registration without Disclaimer /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf English documents 6125455 None 500633505221135046 2022-12-07 Y /webapp/Download?colCode=MPCFPE32B&lang_cd=zh Programming Environments Manual for 32-Bit Implementations of the Power Architecture /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 3 Y N Programming Environments Manual for 32-Bit Implementations of the Power Architecture 6.1 MB MPCFPE32B N E966578690432 /docs/en/reference-manual/MPC60XBUSRM.pdf 2001-07-23 A995913155484 PSP 4 Jan 14, 2004 Reference Manual User's Manual None /docs/en/reference-manual/MPC60XBUSRM.pdf English documents 3416811 None 500633505221135046 2022-12-07 /docs/en/reference-manual/MPC60XBUSRM.pdf The Bus Interface for 32-Bit Microprocessors that Implement the PowerPC Architecture /docs/en/reference-manual/MPC60XBUSRM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0.1 N The Bus Interface for 32-Bit Microprocessors that Implement the PowerPC Architecture 3.4 MB MPC60XBUSRM N A995913155484 /secured/assets/documents/en/reference-manual/G2CORERM.pdf 2016-10-31 10ZtBxCL PSP 5 Jun 27, 2003 Reference Manual The G2 core is a low-power implementation of this microprocessor family of reduced instruction set computing (RISC) microprocessors. The core implements the 32-bit portion of the PowerPC architecture, which defines 32-bit effective addresses, integer data types of 8, 16, and 32 bits, and floating-point data types of 32 and 64 bits. Registration without Disclaimer /secured/assets/documents/en/reference-manual/G2CORERM.pdf English documents 7757744 None 500633505221135046 2022-12-07 Y /webapp/Download?colCode=G2CORERM&lang_cd=zh G2 Core Reference Manual /secured/assets/documents/en/reference-manual/G2CORERM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 1 Y N G2 Core Reference Manual 7.8 MB G2CORERM N 10ZtBxCL /docs/en/reference-manual/MPC8260ESS7UMAD.pdf 2002-05-06 D1020717501807 PSP 6 Dec 5, 2002 Reference Manual Addeddum to the MPC8260 RevB Microcode Supplement None /docs/en/reference-manual/MPC8260ESS7UMAD.pdf English documents 429478 None 500633505221135046 2022-12-07 /docs/en/reference-manual/MPC8260ESS7UMAD.pdf Enhanced SS7 Microcode Specification /docs/en/reference-manual/MPC8260ESS7UMAD.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0.1 N Enhanced SS7 Microcode Specification 429.5 KB MPC8260ESS7UMAD N D1020717501807 封装信息 1 /docs/en/package-information/TBGAPRESPKG.pdf 2003-08-05 1060112435258703527038 PSP 34 Dec 13, 2006 Package Information Presentation on understanding the TBGA packaging None /docs/en/package-information/TBGAPRESPKG.pdf English documents 9224392 None 302435339416912908 2022-12-07 /docs/en/package-information/TBGAPRESPKG.pdf TBGA Packaging Customer Tutorial /docs/en/package-information/TBGAPRESPKG.pdf documents 302435339416912908 Package Information N en None Y pdf 1 N TBGA Packaging Customer Tutorial 9.2 MB TBGAPRESPKG N 1060112435258703527038 应用笔记 24 /docs/zh/application-note/AN13461.pdf 2022-01-04 1641302649210707506203zh PSP 7 May 9, 2022 Application Note Reviewing the troubleshoot microcontroller when there is a malfunction module. None /docs/zh/application-note/AN13461.pdf Chinese documents 302971 None 645036621402383989 2022-12-07 N /docs/zh/application-note/AN13461.pdf 恩智浦微控制器故障排除清单 /docs/zh/application-note/AN13461.pdf documents 645036621402383989 Application Note N zh None Y pdf 0 N N AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note 303.0 KB AN13461 N 1641302649210707506203 /secured/assets/documents/en/application-note/AN3645.pdf 2016-10-31 1224778148188710027580 PSP 8 Apr 28, 2017 Application Note This document is a supplement to the SEC 2/3x reference device driver. Registration without Disclaimer /secured/assets/documents/en/application-note/AN3645.pdf English documents 1147132 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN3645&lang_cd=zh SEC 2/3x Descriptor Programmer’s Guide /secured/assets/documents/en/application-note/AN3645.pdf documents 645036621402383989 Application Note N en Extended pdf 3 Y N SEC 2/3x Descriptor Programmer’s Guide 1.1 MB AN3645 N 1224778148188710027580 /docs/en/application-note/AN3966.pdf 2016-10-31 1258066893562722616236 PSP 9 Nov 10, 2009 Application Note High-level data link control (HDLC) is widely used in the telecommunications and networking industries. NXP&#8217;s PowerQUICC&#8482; communications processors have extensive support for HDLC protocol through the communications processor module (CPM) and QUICC Engine&#8482; technologies.&#13;&#10;&#13;&#10;This application note explains how NXP&#8217;s existing&#13;&#10;PowerQUICC communications processors use the CPM and QUICC Engine technologies to support the HDLC protocol and provides HDLC e None /docs/en/application-note/AN3966.pdf English documents 496625 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3966.pdf PowerQUICC™ HDLC Support and Example Code /docs/en/application-note/AN3966.pdf documents 645036621402383989 Application Note N en None pdf 0 N PowerQUICC™ HDLC Support and Example Code 496.6 KB AN3966 N 1258066893562722616236 /docs/en/application-note/AN2291.pdf 2002-06-20 A1024615477808 PSP 10 Oct 2, 2008 Application Note This application note provides information that could affect customer designs that are being migrated from an earlier revision of a PowerQUICC<sup>&#174;</sup> II&#8482; device. The MPC82xx family members contain PowerPC&#8482; core processors, which are built on Power Architecture&#8482; technology. None /docs/en/application-note/AN2291.pdf English documents 681433 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2291.pdf Differences among PowerQUICC<sup>&#174;</sup> II Devices and Revisions /docs/en/application-note/AN2291.pdf documents 645036621402383989 Application Note N en None Y pdf 2.0 N Differences among PowerQUICC<sup>&#174;</sup> II Devices and Revisions 681.4 KB AN2291 N A1024615477808 /docs/en/application-note/AN2587.pdf 2004-01-19 1074550276395696020225 PSP 11 Jan 18, 2007 Application Note Application Note None /docs/en/application-note/AN2587.pdf English documents 902015 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2587.pdf Software Migration from the NPe495H/L to PowerQUICC<sup>&#174;</sup> II /docs/en/application-note/AN2587.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Software Migration from the NPe495H/L to PowerQUICC<sup>&#174;</sup> II 902.0 KB AN2587 N 1074550276395696020225 /docs/en/application-note/AN2638.pdf 2003-12-15 1071269268449714756450 PSP 12 Jan 18, 2007 Application Note Application Note None /docs/en/application-note/AN2638.pdf English documents 709009 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2638.pdf Effects of Clock Jitter on the MPC8260 (HiP3 and HiP4) /docs/en/application-note/AN2638.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Effects of Clock Jitter on the MPC8260 (HiP3 and HiP4) 709.0 KB AN2638 N 1071269268449714756450 /docs/en/application-note/AN3352.pdf 2007-01-10 1168461981292718588989 PSP 13 Jan 10, 2007 Application Note This application note describes how to implement and use the auto-load (ALD) feature. None /docs/en/application-note/AN3352.pdf English documents 460557 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3352.pdf Using the PowerQUICC<sup>&#174;</sup> II Auto-Load Feature /docs/en/application-note/AN3352.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the PowerQUICC<sup>&#174;</sup> II Auto-Load Feature 460.6 KB AN3352 N 1168461981292718588989 /docs/en/application-note/AN2586.pdf 2004-01-13 1074029100568717348483 PSP 14 Jan 5, 2007 Application Note This application note surveys power distribution circuits that deliver sufficient quiet supply to the MPC8260 PowerQUICC<sup>&#174;</sup> II family of integrated communications processors. None /docs/en/application-note/AN2586.pdf English documents 562260 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2586.pdf MPC8260 PowerQUICC<sup>&#174;</sup> II Family Power Distribution Trends /docs/en/application-note/AN2586.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N MPC8260 PowerQUICC<sup>&#174;</sup> II Family Power Distribution Trends 562.3 KB AN2586 N 1074029100568717348483 /docs/en/application-note/AN2585.pdf 2003-12-17 1071683545088713016137 PSP 15 Jan 4, 2007 Application Note This application note describes how the individual system blocks are affected by the individual reset sources and addresses other common questions when dealing with PowerQUICC<sup>&#174;</sup> II reset sources. None /docs/en/application-note/AN2585.pdf English documents 462780 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2585.pdf MPC82xx PowerQUICC<sup>&#174;</sup> II Reset: Sources, Effects, and Comments /docs/en/application-note/AN2585.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N MPC82xx PowerQUICC<sup>&#174;</sup> II Reset: Sources, Effects, and Comments 462.8 KB AN2585 N 1071683545088713016137 /docs/en/application-note/AN2579.pdf 2004-01-05 1073331070325692705496 PSP 16 Nov 28, 2006 Application Note Application Note None /docs/en/application-note/AN2579.pdf English documents 505744 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2579.pdf Porting Linux&#174; to the MPC8260ADS /docs/en/application-note/AN2579.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Porting Linux&#174; to the MPC8260ADS 505.7 KB AN2579 N 1073331070325692705496 /docs/en/application-note/AN2547.pdf 2003-10-07 1065569242014723627300 PSP 17 Nov 10, 2006 Application Note Detecting a CPM Overload on the PowerQUICC<sup>&#174;</sup> II None /docs/en/application-note/AN2547.pdf English documents 471923 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2547.pdf Detecting a CPM Overload on the PowerQUICC<sup>&#174;</sup> II /docs/en/application-note/AN2547.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Detecting a CPM Overload on the PowerQUICC<sup>&#174;</sup> II 471.9 KB AN2547 N 1065569242014723627300 /docs/en/application-note/AN2347.pdf 2002-10-01 V1033497279667 PSP 18 Nov 8, 2006 Application Note Application note describing the design of a system containing a high performance MPC7410 RISC microprocessor and an MPC8260 None /docs/en/application-note/AN2347.pdf English documents 861073 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2347.pdf Using an MPC8260 and an MPC7410 with Shared Memory /docs/en/application-note/AN2347.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Using an MPC8260 and an MPC7410 with Shared Memory 861.1 KB AN2347 N V1033497279667 /docs/en/application-note/AN2179.pdf 2001-08-02 V996756846613 PSP 19 Jul 20, 2006 Application Note This application note presents a series of timing diagrams for several UPM usage scenarios. All the timing diagrams are based on simulations and are for the 60x bus. None /docs/en/application-note/AN2179.pdf English documents 526026 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2179.pdf MPC8260 UPM Timing Diagram /docs/en/application-note/AN2179.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N MPC8260 UPM Timing Diagram 526.0 KB AN2179 N V996756846613 /docs/en/application-note/AN2915.pdf 2006-01-12 1137095858557723377952 PSP 20 Mar 16, 2006 Application Note This application note discusses the architectural differences to consider when migrating from a PowerQUICC<sup>&#174;</sup> II to a PowerQUICC II Pro device. None /docs/en/application-note/AN2915.pdf English documents 619610 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2915.pdf Design Migration from the PowerQUICC<sup>&#174;</sup> II Family to the PowerQUICC II Pro Family /docs/en/application-note/AN2915.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Design Migration from the PowerQUICC<sup>&#174;</sup> II Family to the PowerQUICC II Pro Family 619.6 KB AN2915 N 1137095858557723377952 /docs/en/application-note/AN2290.pdf 2002-06-20 M1024615468356 PSP 21 Feb 23, 2006 Application Note This applicationnote provides recommendatins for designs based on devices of the PowerQUICC<sup>&#174;</sup> family of integrated communications processors. None /docs/en/application-note/AN2290.pdf English documents 576958 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2290.pdf MPC8260 PowerQUICC<sup>&#174;</sup> II Design Checklist /docs/en/application-note/AN2290.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N MPC8260 PowerQUICC<sup>&#174;</sup> II Design Checklist 577.0 KB AN2290 N M1024615468356 /docs/en/application-note/AN2922.pdf 2005-09-23 1127515956782714935853 PSP 22 Dec 13, 2005 Application Note Memory technology encompasses a wide range of options. The focus of this application note is memory called synchronous dynamic random access memory (SDRAM). Dynamic random access memory (DRAM) has evolved over the years into the most common form of memory called synchronous DRAM, or SDRAM. None /docs/en/application-note/AN2922.pdf English documents 489437 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2922.pdf SDRAM and PowerQUICC<sup>&#174;</sup> II: An Introduction /docs/en/application-note/AN2922.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N SDRAM and PowerQUICC<sup>&#174;</sup> II: An Introduction 489.4 KB AN2922 N 1127515956782714935853 /docs/en/application-note/AN2176.pdf 2001-08-02 W996755906740 PSP 23 Nov 7, 2005 Application Note The following timing diagrams are generated based on the simulations: 60x bus access, Local bus access, Early termination by GTA, Read-Modify-Write Cycle to GPCM, ARTRY cycle. The general-purpose chip-select machine (GPCM) allows a glueless and flexible interface between the MPC8260, SRAM, EPROM, FEPROM, ROM device, and external peripherals. None /docs/en/application-note/AN2176.pdf English documents 595548 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2176.pdf MPC8260 GPCM Timing Diagram /docs/en/application-note/AN2176.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N MPC8260 GPCM Timing Diagram 595.5 KB AN2176 N W996755906740 /docs/en/application-note/AN2754.zip 2016-10-31 1096643228438725418697 PSP 24 Jan 6, 2005 Application Note CPM Architecture and Downloading RAM Microcodes on the PowerQUICC<sup>&#174;</sup> II Family, application note None /docs/en/application-note/AN2754.zip English documents 215215 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN2754.zip CPM Architecture and Downloading RAM Microcodes on the PowerQUICC II Family /docs/en/application-note/AN2754.zip documents 645036621402383989 Application Note N en None Y zip 1 N N CPM Architecture and Downloading RAM Microcodes on the PowerQUICC II Family 215.2 KB AN2754 N 1096643228438725418697 /docs/en/application-note/AN2349.pdf 2002-10-01 V1033497290717 PSP 25 Nov 15, 2004 Application Note Application note None /docs/en/application-note/AN2349.pdf English documents 278316 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2349.pdf MPC8260 Reset and Configuration Word /docs/en/application-note/AN2349.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N MPC8260 Reset and Configuration Word 278.3 KB AN2349 N V1033497290717 /docs/en/application-note/AN2059.pdf 2001-05-08 J989336344057 PSP 26 Dec 5, 2003 Application Note None /docs/en/application-note/AN2059.pdf English documents 249563 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2059.pdf CPM Hints /docs/en/application-note/AN2059.pdf documents 645036621402383989 Application Note N en None Y pdf 0.1 N CPM Hints 249.6 KB AN2059 N J989336344057 /docs/en/application-note/AN2491.pdf 2003-09-30 1064950886097724682016 PSP 27 Sep 30, 2003 Application Note Simplified Mnemonics for PowerPC Instructions. None /docs/en/application-note/AN2491.pdf English documents 1379878 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2491.pdf Simplified Mnemonics for PowerPC Instructions /docs/en/application-note/AN2491.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Simplified Mnemonics for PowerPC Instructions 1.4 MB AN2491 N 1064950886097724682016 /docs/en/application-note/AN2335.pdf 2002-10-15 A1034713307446 PSP 28 Oct 15, 2002 Application Note Application Note regarding MPC8260 dual-bus architecture None /docs/en/application-note/AN2335.pdf English documents 335524 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2335.pdf MPC8260 Dual-Bus Architecture and Performance Considerations /docs/en/application-note/AN2335.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N MPC8260 Dual-Bus Architecture and Performance Considerations 335.5 KB AN2335 N A1034713307446 /docs/en/application-note/AN2271.pdf 2002-03-19 D1016574497045 PSP 29 Mar 19, 2002 Application Note Application Note None /docs/en/application-note/AN2271.pdf English documents 307166 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2271.pdf MPC8260 PowerQUICC<sup>&#174;</sup> II Thermal Resistor Guide /docs/en/application-note/AN2271.pdf documents 645036621402383989 Application Note N en None Y pdf 0.0 N MPC8260 PowerQUICC<sup>&#174;</sup> II Thermal Resistor Guide 307.2 KB AN2271 N D1016574497045 /docs/en/application-note/AN2070.pdf 2000-12-08 N976307449793 PSP 30 Jun 15, 2000 Application Note Application Note None /docs/en/application-note/AN2070.pdf English documents 271014 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2070.pdf MPC8260 PowerQUICC<sup>&#174;</sup> II Data Error Protection Implementation /docs/en/application-note/AN2070.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N MPC8260 PowerQUICC<sup>&#174;</sup> II Data Error Protection Implementation 271.0 KB AN2070 N N976307449793 应用笔记软件 3 /secured/assets/documents/en/application-note-software/AN3966SW.zip 2016-10-31 1258066894053701788655 PSP 31 Nov 10, 2009 Application Note Software Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note-software/AN3966SW.zip English documents 330857 1395958162559706127527 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN3966SW&appType=license&lang_cd=zh Software to accompany application note AN3966 /secured/assets/documents/en/application-note-software/AN3966SW.zip documents 789425793691620447 Application Note Software N en Extended zip 0 Y N Software to accompany application note AN3966 330.9 KB AN3966SW N 1258066894053701788655 /secured/assets/documents/en/application-note-software/AN2810SW.zip 2005-04-14 1113503860374718430905 PSP 32 Aug 15, 2006 Application Note Software AN2810, PowerQUICC<sup>&#174;</sup> UPM Configuration, PowerQUICC, Universal Programmable Machine, Configuration, Application Note Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note-software/AN2810SW.zip English documents 5555 1395958162559706127527 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN2810SW&appType=license&lang_cd=zh AN2810 Supporting Files /secured/assets/documents/en/application-note-software/AN2810SW.zip documents 789425793691620447 Application Note Software N en Extended zip 2 Y N AN2810 Supporting Files 5.6 KB AN2810SW N 1113503860374718430905 /secured/assets/documents/en/application-note-software/AN2547SW.zip 2003-10-07 1065569747106705615329 PSP 33 Jun 30, 2003 Application Note Software application note software Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note-software/AN2547SW.zip English documents 295305 1395958162559706127527 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN2547SW&appType=license&lang_cd=zh Software Detecting CPM Overload (accompanies AN2547) /secured/assets/documents/en/application-note-software/AN2547SW.zip documents 789425793691620447 Application Note Software N en Extended zip 0 Y N Software Detecting CPM Overload (accompanies AN2547) 295.3 KB AN2547SW N 1065569747106705615329 数据手册 1 /docs/en/data-sheet/MPC8260AEC.pdf 2016-10-31 A997133084246 PSP 1 Jun 9, 2009 Data Sheet This document contains detailed information on power considerations, DC/AC electrical characteristics, and AC timing specifications for the MPC82505 .25mm (HiP3 4) devices in the PowerQUICC<sup>&#174;</sup> II&#8482; MPC8260 communications processor family. These devices include the MPC8260, the MPC8255, the MPC8264, the MPC8265, and the MPC8266.&#13;&#10; None /docs/en/data-sheet/MPC8260AEC.pdf English documents 1053573 None 980000996212993340 2024-11-04 N /docs/en/data-sheet/MPC8260AEC.pdf MPC8260A PowerQUICC II Integrated Communications Processor Hardware Specifications (for HiP4 0.25um) /docs/en/data-sheet/MPC8260AEC.pdf documents 980000996212993340 Data Sheet N en None Y Y pdf 2 N N MPC8260A PowerQUICC II Integrated Communications Processor Hardware Specifications (for HiP4 0.25um) 1.1 MB MPC8260AEC N A997133084246 选型指南 1 /docs/en/product-selector-guide/SG2113.pdf 2016-10-31 10f3RLj3 PSP 37 Jan 1, 2005 Selector Guide OSI Layer 2 and Layer 3 Router None /docs/en/product-selector-guide/SG2113.pdf English documents 168106 None 553557935274807777 2022-12-07 N /docs/en/product-selector-guide/SG2113.pdf ARCHIVED - SG2113 OSI Layer 2 and Layer 3 Router /docs/en/product-selector-guide/SG2113.pdf documents 553557935274807777 Selector Guide N en None Y pdf 1 N N ARCHIVED - SG2113 OSI Layer 2 and Layer 3 Router 168.1 KB SG2113 N 10f3RLj3 true Y Products
