32-bit Power Architecture® Microcontrollers
NXP ® MPC5121e and MPC5123 MCUs provide an excellent computing platform for OEM, aftermarket, commercial telematics and consumer applications—including embedded solutions requiring network connectivity, graphics and a graphical user interface.
- Optimal for applications such as automotive center stack systems
- An array of I/Os and dedicated cores reduces bill-of-materials costs while improving functionality
- Offers competitive cost, quality, reliability and excellent performance
- Includes widespread mobileGT ® alliance firmware and software driver support
- Supports real-time operating systems (Green Hills, QNX and Wind River, Linux®)
产品详情

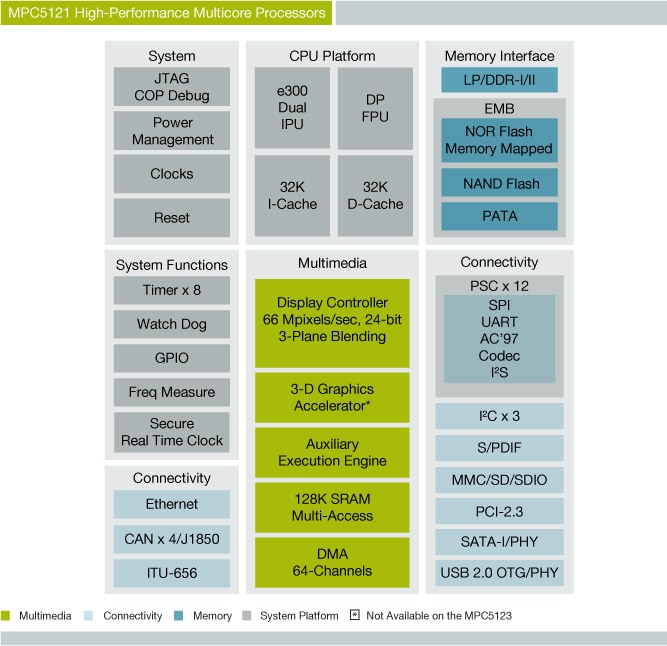

框图
Features
- e300 core built on Power Architecture technology
- Up to 400 MHz performance and 760 MIPS
- AXE, a 32-bit RISC audio accelerator engine
- PowerVR® MBX Lite 2D/3D Graphics Engine (not included in the MPC5123)
- DIU integrated display controller supports up to XGA resolution
- 12 programmable serial controllers (PSC)
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 15 years after launch
