32-bit Automotive Microcontrollers
- 建议不要在新设计中使用本页介绍的产品。

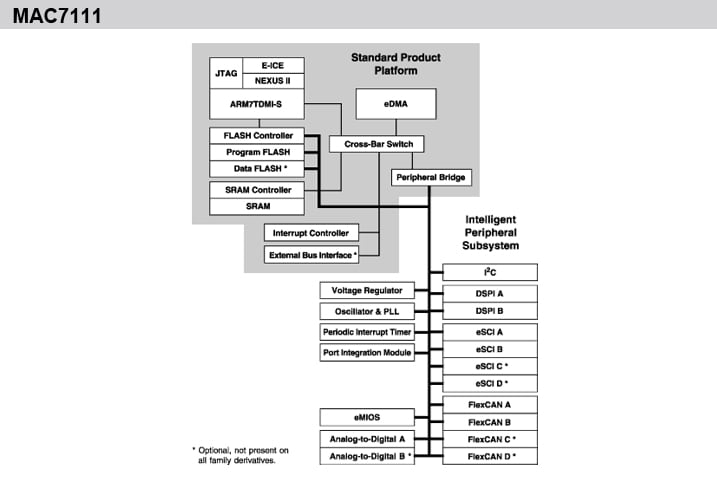

The MAC7111 is a member of a pin-compatible family of 32-bit Flash memory-based devices developed specifically for embedded automotive applications. It addresses the growing demand for cost-effective 32-bit performance enhancements as traditional body, chassis and safety application exceed the performance scope of many 16-bit offerings.
产品详情
Features
- 32-bit Arm7TDMI-S™ RISC core, up to 50 MHz operating frequency
- Enhanced DMA with channel multiplexer
- 512 Kbyte program Flash EEPROM
- 32 Kbyte data Flash EEPROM
- 32 Kbyte RAM
- 16-bit external bus interface to support off-chip devices
- 16-channel, 10-bit analog-to-digital converter
- 16-channel enhanced modular I/O timer subsystem
- Four enhanced serial communications interfaces
- Four CAN 2.0 software compatible interfaces
- Two serial peripheral interfaces (SPI)
- One I²C bus interface
- 10-channel, 24-bit periodic interrupt timer
- 112 general purpose input/output port pins shared with peripherals, with optional wake-up interrupts and 3.3 V to 5 V input and drive capability
- Flexible interrupt controller
- JTAG test access port (TAP) and Embedded ICE debug interfaces, with real-time instruction trace support via Nexus Class 2 Plus interface
- On-chip clock generation with selectable standard or low-power Pierce oscillator driving a phase-locked loop clock frequency multiplier
- On-chip dual 2.5 V linear voltage regulator
- 144-pin LQFP package
