SOT2163-1: DHVQFN18

概述

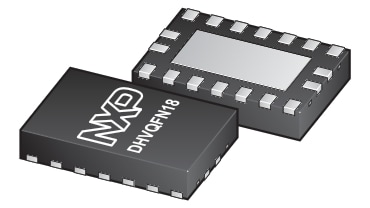

DHVQFN18: DIL-compatible thermal enhanced very thin quad flatpack; no leads;18 terminals; body 3.0 x 4.5 x 0.85 mm
Package Version Package Name 贴装 端子位置 封装风格 尺寸 終止計數 材料
 SOT2163-1 DHVQFN18 surface mount quad DHVQFN 3 x 4.5 x 0.85 18 plastic
生产代码 Reference Codes Issue Date
98ASA01851D 2022-12-06
部分 描述 Quick access
TJA1446BHG High-Speed CAN FD transceiver with partial networking, watchdog, RESET, FAIL-SAFE/LIMP and GPIO pins [ASIL B, 3.3 V VIO] View parametrics
TJA1446AHG High-Speed CAN FD transceiver with partial networking, watchdog, RESET, FAIL-SAFE/LIMP and GPIO pins [ASIL B, 1.8 V VIO] View parametrics
TJA1445BHG High-Speed CAN FD transceiver with partial networking and GPIO pins [ASIL B] View parametrics
TJA1446CHG High-Speed CAN FD transceiver with partial networking, watchdog, RESET, FAIL-SAFE/LIMP and GPIO pins [ASIL B, 5 V VIO] View parametrics
TJA1465BHG CAN SIC transceiver with partial networking and GPIO pins [ASIL B] View parametrics
TJA1466CHG CAN SIC transceiver with partial networking, watchdog, RESET pin, FAIL-SAFE/LIMP pin and GPIO pins [ASIL B, 1.8 V VIO] View parametrics
TJA1466BHG CAN SIC transceiver with partial networking, watchdog, RESET pin, FAIL-SAFE/LIMP pin and GPIO pins [ASIL B, 1.8 V VIO] View parametrics
TJA1466AHG CAN SIC transceiver with partial networking, watchdog, RESET pin, FAIL-SAFE/LIMP pin and GPIO pins [ASIL B, 1.8 V VIO] View parametrics
