1. Get Started

The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost, and improved performance in powering state-of-the-art systems.

This page will guide you through the process of setting up and using the UJA1168AFEVB evaluation board.

1.1 Kit Contents/Packing List

The UJA1168AF-EVB contents include:

Assembled and tested evaluation board in an anti-static bag

标记为完成:1.1 Kit Contents/Packing List

1.2 Additional Hardware

In addition to the kit contents, the following hardware is necessary or beneficial when working with this kit.

Power supply with a 12 V DC source and a current limit capability of at least 1.0 A
A 5.0 V MCU board that contains at least one CAN/CANFD controller and one SPI master

标记为完成:1.2 Additional Hardware

下一页Get to Know the Hardware

2. Get to Know the Hardware

2.1 Board Description

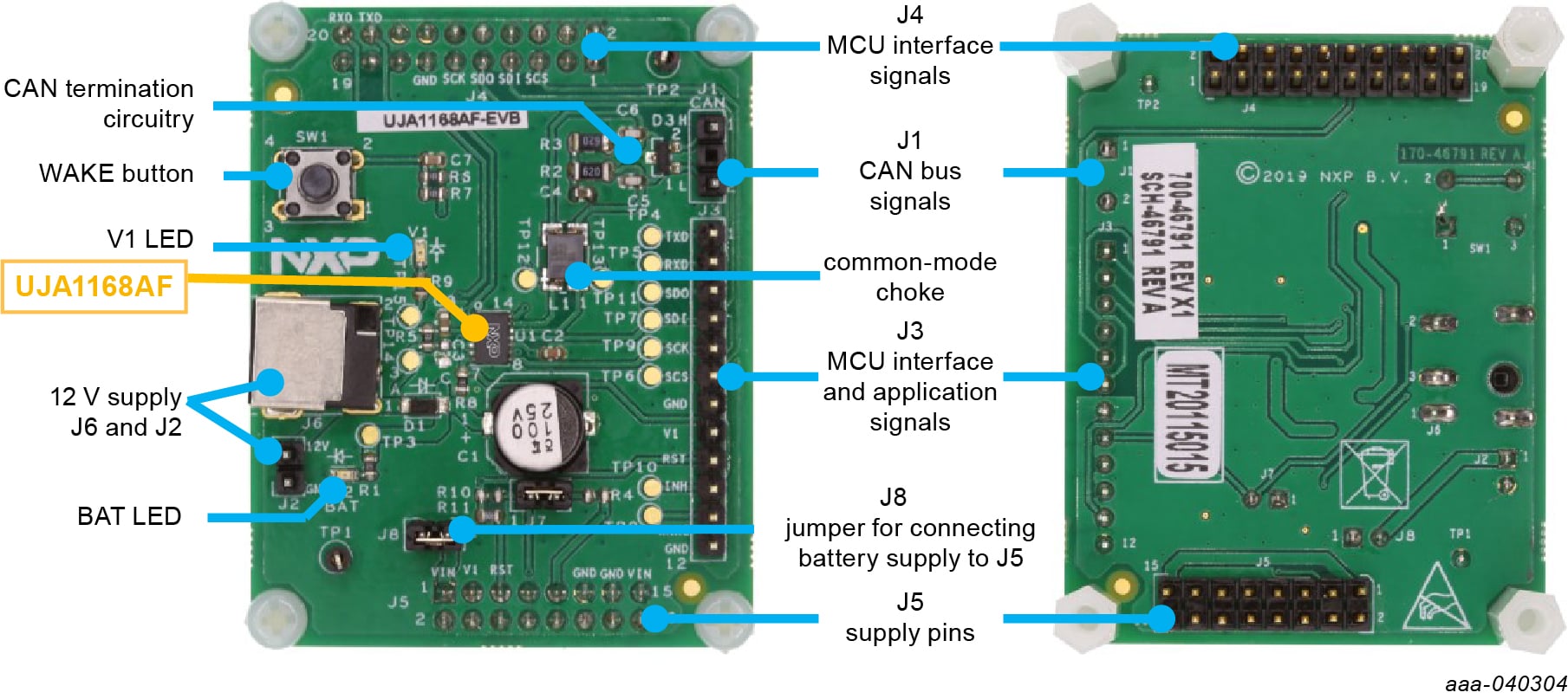

Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA1168AF functionality are included. All boards contain circuitry for reverse polarity protected battery supply, BAT and V1 signal status LEDs, and CAN bus termination. Wake-up circuitry is also included since the UJA1168AF device supports sleep mode. The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals.

标记为完成:2.1 Board Description

前页Get Started

下一页Configure Hardware

3. Configure Hardware

3.1 Configure Hardware

To connect the UJA1168AF-EVB to a CAN network, complete the following procedure.

The following conditions must be met before powering up the system with a 12 V supply:

Connect boards in the ECU to a common GND
Connect SPI pins to the MCU SPI master:
1. SDO (J3-03, J4-09) → MISO
2. SDI (J3-04, J4-07) → MOSI
3. SCK (J3-05, J4-11) → SCK
4. SCSN (J3-06, J4-05) → CS
Connect TXD/RXD (J3-01/J3-02, J4-18/J4-20) pins to the MCU CAN controller TXD/RXD pins
Connect RSTN (J9-09/J5-05) to the MCU reset pin
Connect CANH and CANL (J1-01/J1-02) to the CAN bus twisted-pair cables
Connect V1(J3-08, J5-03) to the MCU supply unit
Connect INH (J3-10) on the UJA1168AF-EVB to the control/enable pin on the ECU supply unit (optional)

Once the above steps have been completed, the ECU/EVB can be powered up using an external battery supply. The UJA1168AF-EVB starts up in Forced Normal mode (if MTP is not configured) or Standby mode (if MTP configured), awaiting commands from the MCU via the SPI interface.
