Getting Started with the UJA1163A Evaluation Board
本文档内容
-
Get Started
-
Get to Know the Hardware
-
Configure Hardware
1. Get Started
The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.
This page will guide you through the process of setting up and using the UJA1163A-EVB evaluation board.
1.1 Kit Contents/Packing List
The UJA1163A-EVB contents include:
- Assembled and tested evaluation board in an antistatic bag
1.2 Additional Hardware
In addition to the kit contents, the following hardware is necessary or beneficial when working with this kit.
- Power supply with a 12 V DC source and a current limit capability of at least 1.0 A
- A 5.0 V MCU board that contains at least one CAN/CANFD controller and two GPIO pins
2. Get to Know the Hardware
2.1 Board Description
The UJA1163A-EVB evaluation boards are designed to facilitate the testing and evaluation of UJA1163A product features in a variety of microcontroller IO interface environments. All MCU interface signals can be accessed in two ways: at a header row on the top side and also at header rows on the bottom side that can be plugged directly into many NXP MCU evaluation boards.
The UJA1163A-EVB evaluation boards are designed to be compatible with the S32K1xx evaluation board series from NXP and to support the use of standard software development tools and drivers.

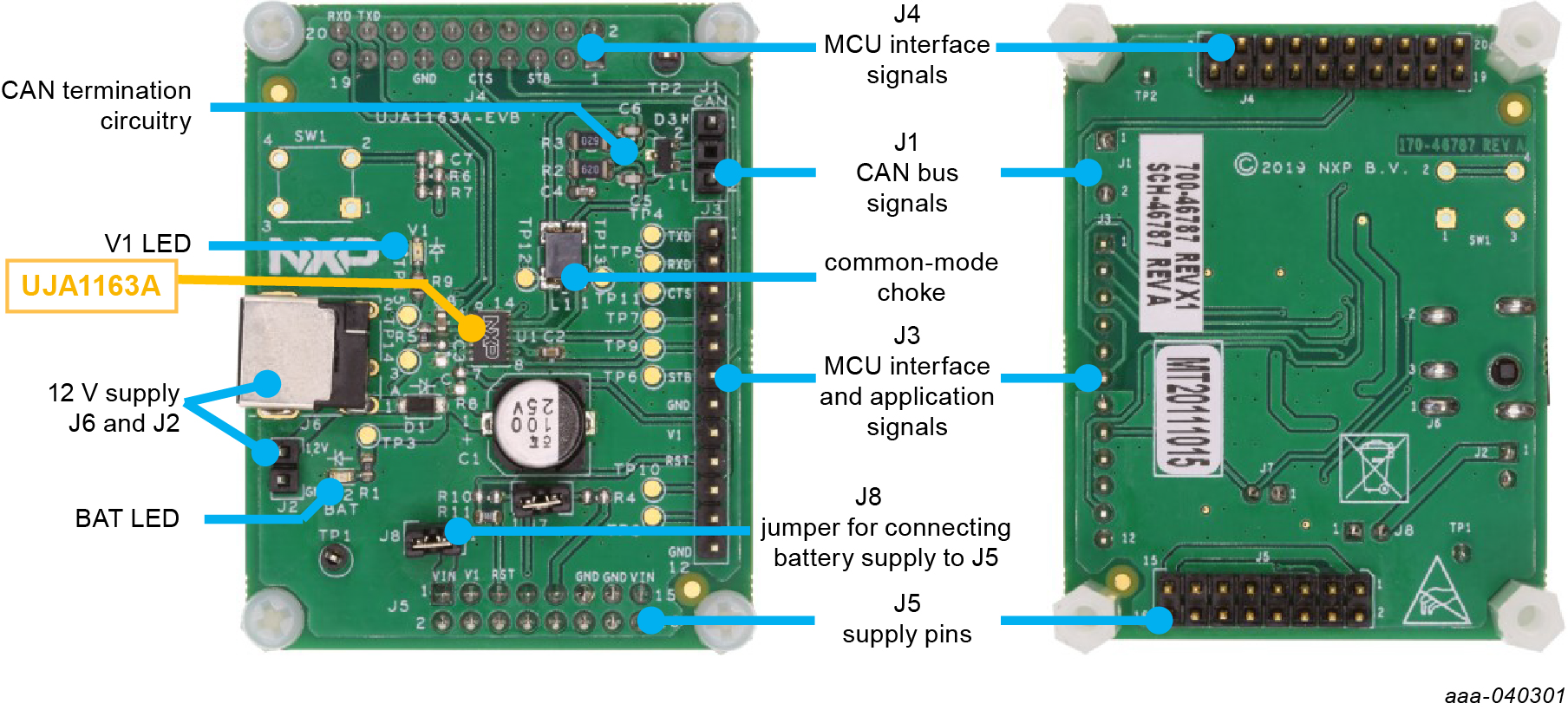

2.2 Board Components
Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA1163A functionality are included. All boards contain circuitry for reverse polarity protected battery supply, BAT and V1 signal status LEDs and CAN bus termination. The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals.
3. Configure Hardware
3.1 Configure Hardware
To connect the UJA1163A-EVB to a CAN network, complete the following procedure.
The following conditions must be met before powering up the system with a 12 V supply:
- Connect boards in the ECU to a common GND
- Connect pin CTS (
J3-03,J4-09) to an MCU IO input pin - Connect pin STBN/SLPN (
J3-06,J4-09) to an MCU IO output pin - Connect TXD/RXD (
J3-01/J3-02,J4-18/J4-20) pins to the MCU CAN controller TXD/RXD pins - Connect CANH and CANL (
J1-01/J1-02) to the CAN bus twisted pair cables - Connect RST (
J3-09,J5-05) on the UJA1163A-EVB to the MCU CAN controller RSTN pin - Connect V1 (
J3-08,J5-03) on the UJA1163A-EVB to the MCU supply unit
Once the above steps have been completed, the ECU/EVB can be powered up using an external battery supply. The UJA1163A-EVB starts up in Standby mode, and then switches between Standby/Sleep modes and Normal mode depending on the level on pin STBN/SLPN.
