面向LPC804系列MCU的LPCXpresso804

OM40001
正常供应

滚动图片以放大

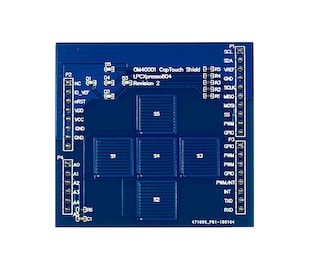

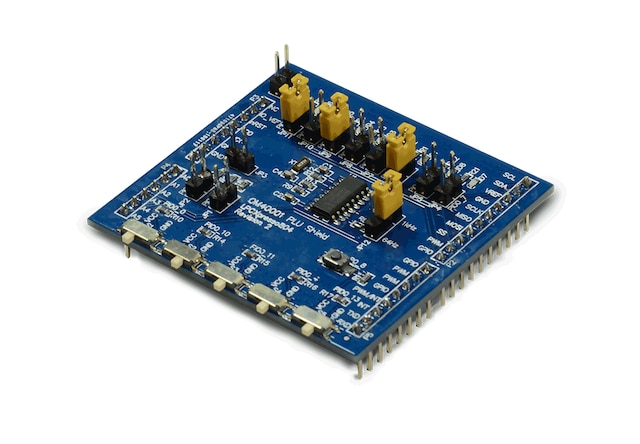

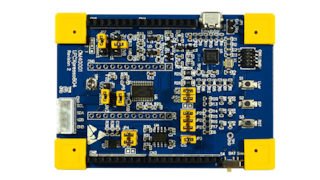

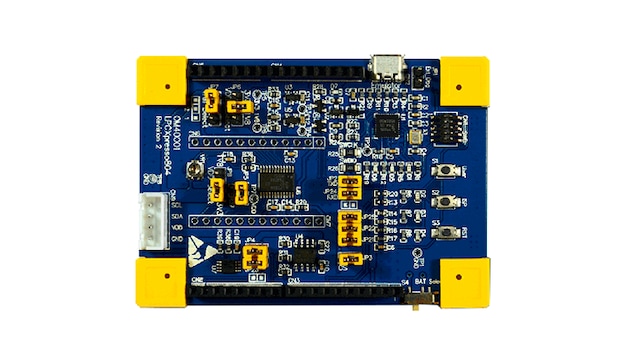

LPCXpresso804板支持轻松对LPC804 MCU实施评估，具备电容式触摸功能和可编程逻辑单元(PLU)。这个三板套件包含一个带有板载CMSIS-DAP硬件调试器的LPC804 MCU板(参见下图)，一个PLU Shield板(包含LED、开关和振荡器，用于快速、轻松地设计原型)，以及一个带有5个按钮的电容式触摸Shield板(每个按钮都有一个LED指示灯)。

该板由LPC804代码包中的软件示例提供支持，还受到广泛的开发工具支持，包括MCUXpresso IDE、IAR EWARM和Keil® MDK.

产品详情

支持的器件

处理器和微控制器

LPC800 Arm Cortex-M0+

  • LPC80X: 基于Arm® Cortex®-M0+内核的高性价比微控制器(MCU)

特性

处理器

  • LPC804 Arm® Cortex®-M0+ MCU，采用TSSOP24封装，工作频率高达15MHz

存储器

  • 1Mb Winbond SPI闪存

调试

  • 板载CMSIS-DAP(硬件调试器)带VCOM端口，基于LPC11U35 MCU
  • 调试器接头支持通过外部调试器对目标LPC802 MCU进行调试

传感器

  • 恩智浦LM75BDP温度传感器

支持

  • 兼容MCUXpresso IDE和其他主流工具链(包括IAR和Keil)
  • 三板套件，由LPCXpresso804板、PLU以及电容式触摸Shield板组成。

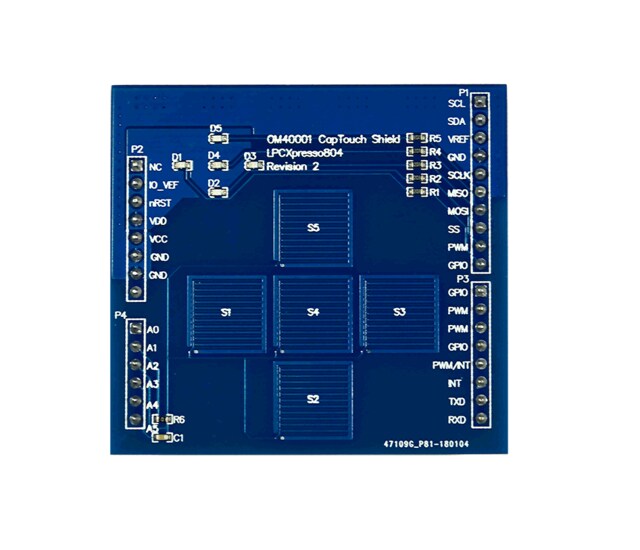

    • 5按钮电容式触摸Shield板，每个按钮都有一个LED指示灯。
    • I²C Grove接头，用于轻松连接传感器或当做I²C外设连接至板
  • ISP和用户/唤醒按钮
  • 3个用户LED
  • 复位按钮

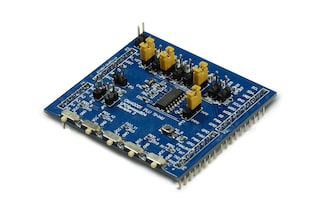

  • PLU Shield板，包含LED、开关和振荡器，用于快速、轻松地设计原型

购买选项

OM40001-Image

点击展开

  • OM40001
    正常供应

  • LPCXpresso804 for the LPC804 family of MCUs.

    • LPCXpresso804板
    • PLU Shield板，包含LED
    • 5按钮电容式触摸Shield板，每个按钮都有一个LED指示灯
  • $28.75 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
