带多协议无线收发器的K32W148评估套件

K32W148-EVK
正常供应

滚动图片以放大

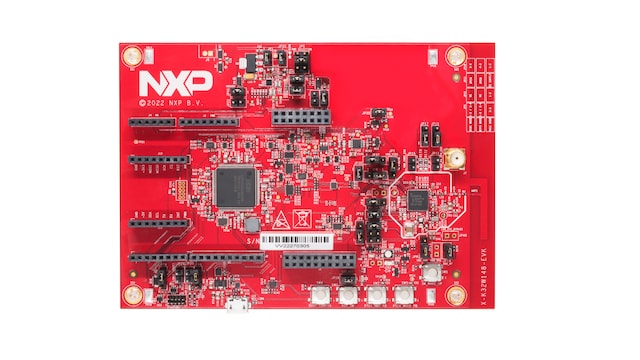

K32W148 EVK是K32W148 MCU的评估套件。K32W1480包括支持15.4和低功耗蓝牙®的2.4GHz射频。K32W148高度灵敏的优化2.4GHz射频采用PCB F天线，可通过SMA连接进行旁路测试。该评估板包括MCU-Link硬件调试器、按钮、开关、LED和集成传感器、Arduino Shield连接器、MikroE Click连接器和其他接头。

产品详情

支持的器件

无线连接

多协议MCU

  • K32W148: 安全的超低功耗MCU，适用于Matter over Thread™ ，以及BLE 5.3

特性

内核

  • K32W1480配备96 MHz Arm® Cortex®-M33内核
  • 专用CM3无线内核
  • EdgeLock安全区域

电源管理

  • 支持所有DC-DC配置

连接

  • Arduino Shield插座
  • mikroBUS插座

无线

  • PCB反向F型天线和SMA射频接口

调试

  • JTAG

传感器

  • 恩智浦FXLS8964AF 3D加速度传感器（±2g/±4g/±8g）

购买选项

K32W148-EVK-Image

点击展开

  • K32W148-EVK
    正常供应

  • End Node Matter (Thread, Wi-Fi) Development Platforms.

  • 套件包含：

    • 评估板
    • USB线缆
  • $155.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 27
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
