面向Alexa for IOT的基于EdgeReady MCU的解决方案

MCU-VOICE-CONTROL-AVS

滚动图片以放大

恩智浦基于EdgeReadyMCU的解决方案面向AWS物联网核心(也称为Alexa for IoT或AFI)的Amazon Alexa语音服务(AVS)集成，采用i.MX RT跨界MCU，让开发人员能够快速、轻松地将Alexa语音助手功能添加到自己的产品。这个基于i.MX RT106A的全包式解决方案是EdgeVerse边缘计算平台的一部分，它包括与亚马逊认证软件集成的硬件参考设计，基于亚马逊通用软件(ACS)和FreeRTOS构建，可轻松与AVS和AWS物联网集成。开箱即用的解决方案开发套件SLN-ALEXA-IOT提供类似于Amazon Echo™的扬声器体验，使用亚马逊的无挫折设置(FFS)轻松连接到用户的Wi-Fi网络和Alexa帐户。

Retune DSP已加入恩智浦。 了解更多信息。

框图

选择框图:

i.MX RT硬件

i.MX RT106A Reference Design Block Diagram

i.MX RT软件

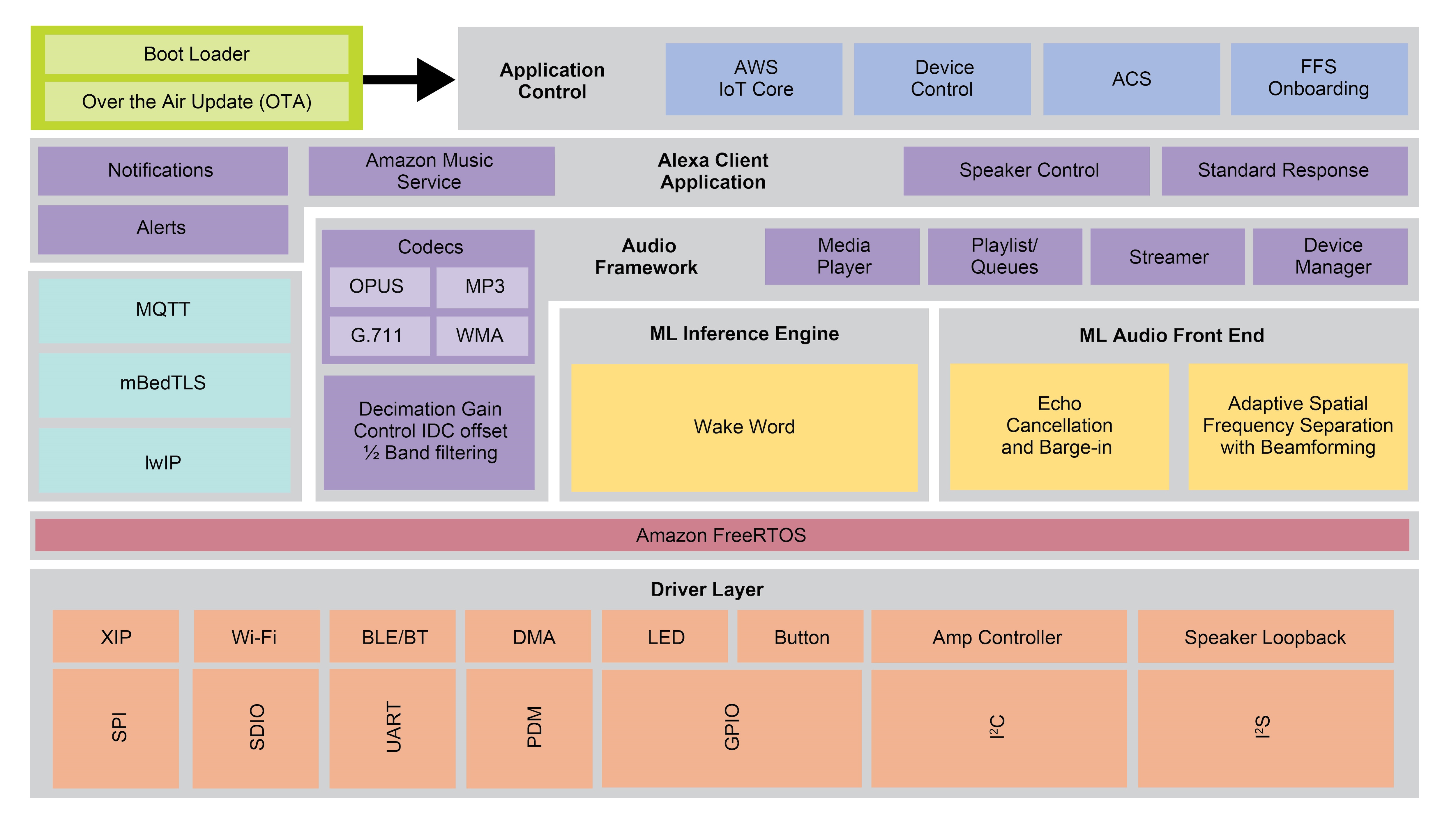

i.MX RT106A Voice Control Software Block Diagram
获取框图PDF

支持的器件

处理器和微控制器

i.MX RT跨界MCU

  • i.MX-RT1060: i.MX RT1060: 跨界MCU， 配备Arm®Cortex®-M7

功能

资格认证

  • 符合Amazon Alexa Voice Service (AVS)认证
  • 符合Amazon Frustration Free Setup (FFS)认证

多功能

  • 无需语音或音频专业知识，基于FreeRTOS和亚马逊通用软件(ACS)构建，可轻松与AVS和AWS物联网集成
  • 支持多达三个低成本MEMS麦克风，适用于360°远场语音(而180°应用只需要两个麦克风)

ADC/DAC转换

  • 采用低价模拟放大器实现低成本音频播放的片上MQS DAC

协议

  • AVS Integration for AWS IOT Core (AFI)
  • MQTT, lwIP, mBedTLS

单电源

  • 电源电压：3.3 V

低压差调整

  • DC转DC & LDO

温度控制

  • 温度监测仪

外部

  • 16 MB QSPI闪存(支持无线更新)

内部

  • 1 MB片上RAM

更多

购买选项

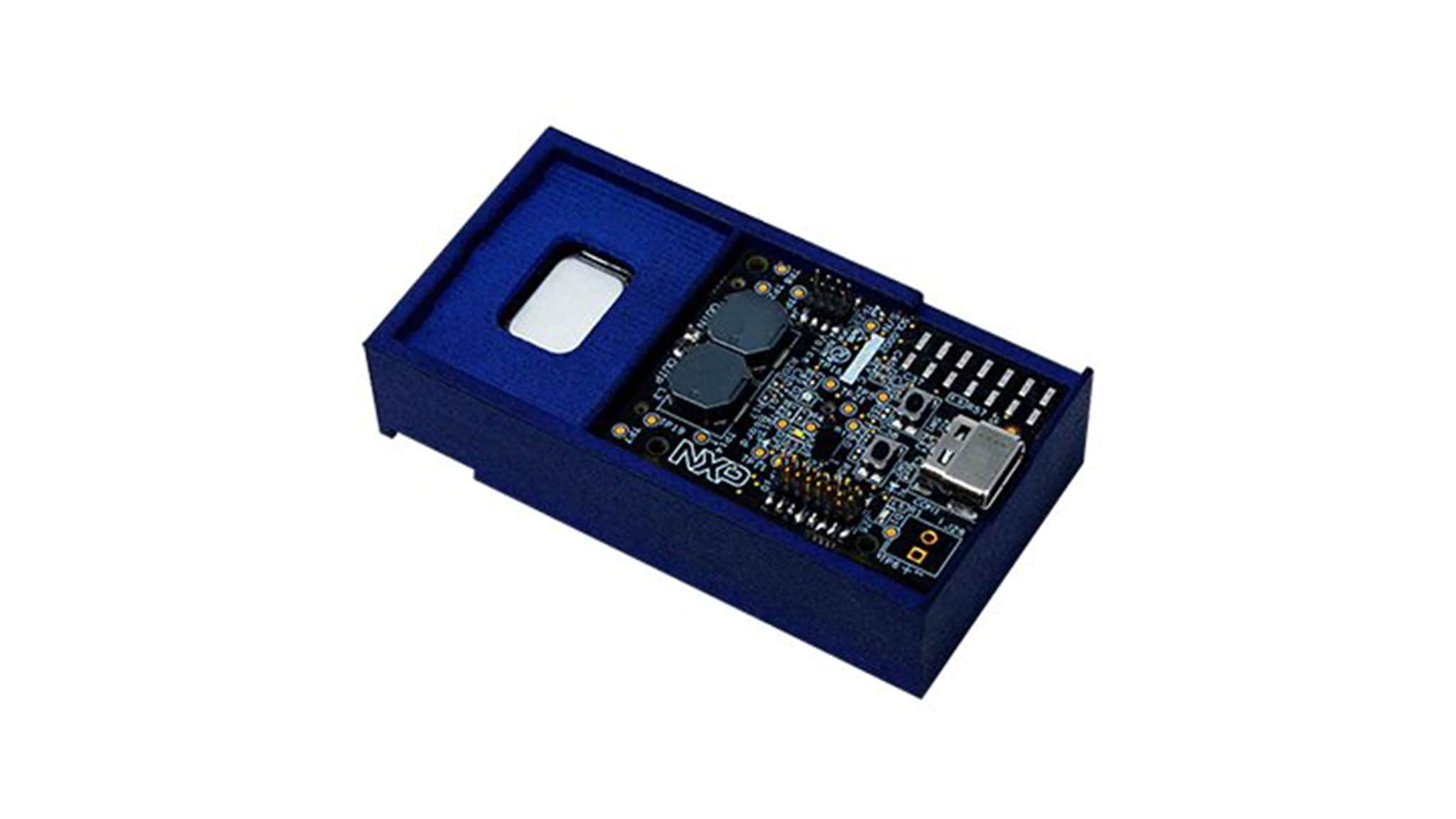

SLN-ALEXA-IOT-Image

点击展开

  • SLN-ALEXA-IOT
    正常供应

  • EdgeReady MCU Based Solution for Alexa for IOT.

  • 面向Alexa for IoT (AFI)的恩智浦i.MX RT106A解决方案的评估和开发套件

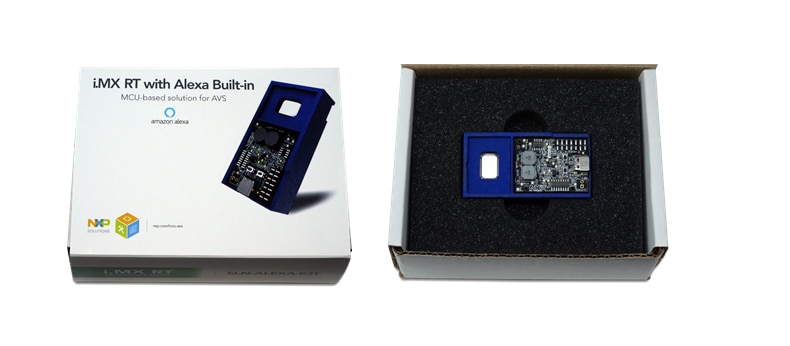

    套件包含：

    • i.MX RT106A AFI开发套件
    • USB Type-C线缆
  • 数量为 1
从分销商处购买
