PT2000 Evaluation Kit with KL25Z for 3 Cylinder with Freewheeling

KITPT2000FRDM3C 正常供应

滚动图片以放大

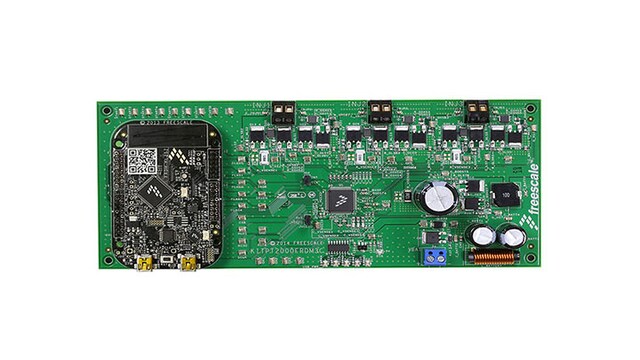

KITPT2000FRDM3C评估板(EVB)可让您练习使用PT2000直喷预驱动器电路的所有功能。借助用作SPIdongle的Freedom电路板FRDM-KL25Z，PC可通过USB与EVB通信。恩智浦 SPIGen (版本7.0及更高)程序针对PT2000 SPI端口提供用户界面，可让用户为代码RAM和数据寄存器编程，向IC发送命令以及从IC接收状态信息。

产品详情

支持的器件

电源管理

动力和发动机控制

  • PT2000: 面向电磁控制的可编程栅极驱动器

特征

KITPT2000FRDM3C

  • PT2000可编程电磁预驱电路
  • 面向SPI通信和IO控制的FRDM-KL25Z
  • 电源调适电路
  • 外置MOSFET用来控制3个带续流功能的喷油器
  • +12 V VBAT电源，为两个内部稳压器(VCCP和VCCP2.5)提供电源
  • DC-to-DC control

PT2000

  • 电池电压范围，5.5 < VBATT < 72 V
  • 预驱动器工作电压最高为72 V
  • 高边/低边预驱动PWM可高达100 KHz
    • 所有预驱动器都有4个可选的压摆率
  • 12个可选的预定义VDS/VSRC监控阈值
  • 用于保护微代码的加密功能
  • 集成式1.0 MHz备用时钟
  • 喷射结束检测

购买选项

KITPT2000FRDM3C-Image

点击展开

  • KITPT2000FRDM3C
    正常供应

  • Freedom Platform - PT2000, Programmable Gate Driver.

    • KITPT2000FRDM3C硬件
    • FRDM-KL25Z硬件(预编程)
    • 线缆，USB A-M至B-M mini (2)
    • 快速参考指南
  • 数量为 1
