面向MC24XS4系列的Freedom硬件

FRDM-24XSMBEVB
正常供应

滚动图片以放大

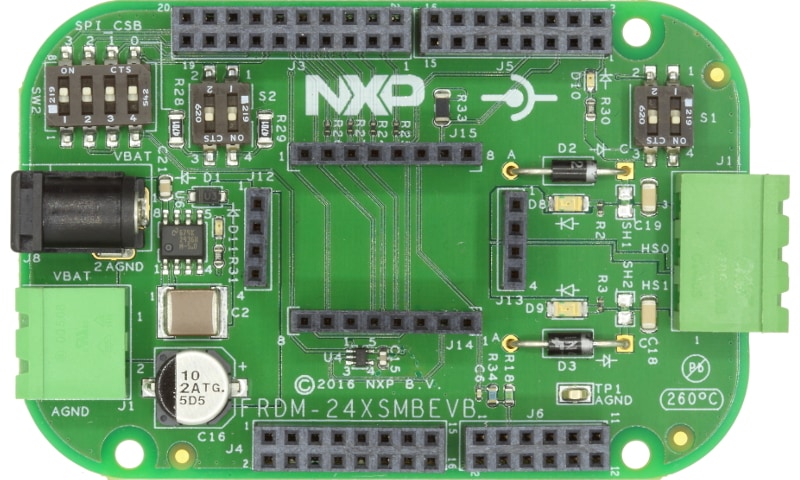

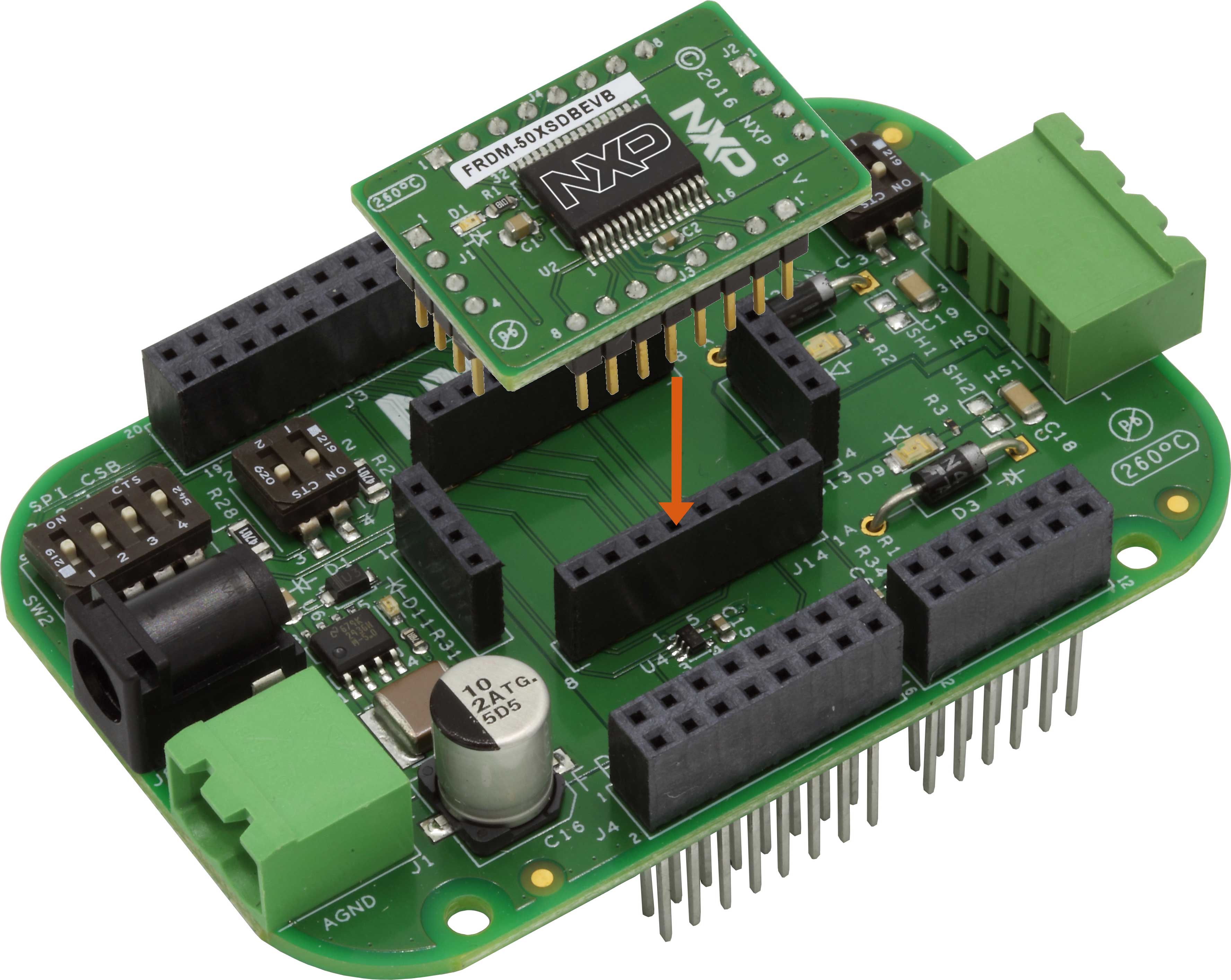

恩智浦Freedom电路板FRDM-24XSMBEVB是一个用于评估和开发不同eXtreme开关(由24V系列组成)的硬件工具。该母板可关联5个该系列的不同器件，这得益于其shield接头。
这些兼容器件是一个24V系列双高边器件，拥有灵活性很高的集成控制和大量的保护和诊断功能。由于以下接口，电路板易于使用：

  • FRDM-KL25Z及其SPIGEN图形用户接口
  • 带Processor Expert组件的Freedom KL25z、 KV10Z、K64F

产品详情

支持的器件

处理器和微控制器

K6x以太网

  • K64_120: Kinetis® K64-120 MHz, 256KB SRAM微控制器(MCU)基于Arm® Cortex®-M4内核

KL系列Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB超低功耗微控制器(MCU)，基于Arm® Cortex®-M0+内核

KV系列Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz，入门级3相FOC / 无传感器电机控制微控制器(MCU)，基于Arm® Cortex®-M0+内核

电源管理

高边开关

  • MC24XS4: 24V多用途低导通电阻eXtreme开关

特征

主板

  • 与MCU关联的FRDM-24XSMBEVB

涵盖该系列5个器件的5个不同的shield扩展板

  • FRDM-06XSDBEVB：涵盖MC06XS4200 (2个输出6mOhm，采用PQFN封装)

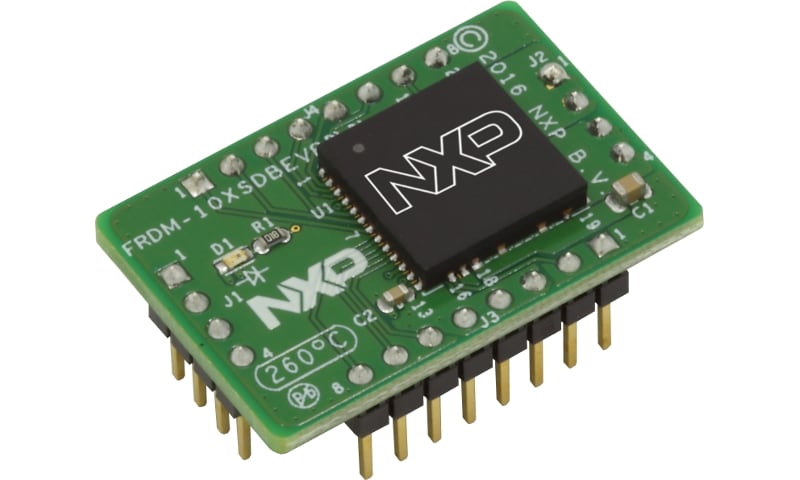

  • FRDM-10XSDBEVB：涵盖MC10XS4200 (2个输出10mOhm，采用PQFN封装)
  • FRDM-20XSDBEVB：涵盖MC20XS4200 (2个输出20mOhm，采用PQFN封装)

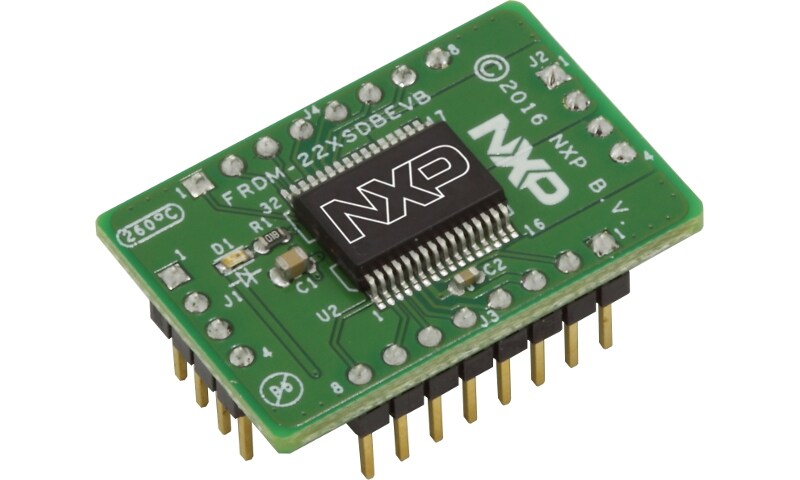

  • FRDM-22XSDBEVB：涵盖MC22XS4200 (2个输出22mOhm， 采用SOIC32封装)

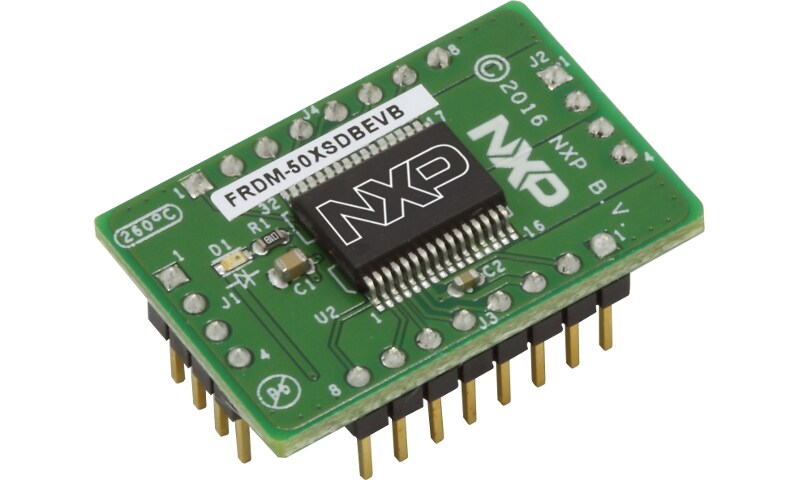

  • FRDM-50XSDBEVB：涵盖MC50XS4200 (2个输出50mOhm，采用SOIC32封装)
  • 此电路板可以控制各种类型的负载，如电磁阀、PLC、DC电机、灯泡或LED等

这些器件还可由16位SPI来驱动，方法是采用以下组件

  • 带有SPIGen软件的KL25Z
  • 采用Processor Expert组件的KL25Z、KV10Z和K64F 采用CodeWarrior 10.6或Kinetis Design Studio v3.0或更高版本的36VeXtremeSwitch
  • 故障安全模式操作(电路板上的开关)中的直接输入信号
  • 这些器件可设置过流特征曲线，通道控制包括：PWM占空比、并行模式、输出ON和OFF开路负载检测、过热关断和预警以及错误报告
  • 输出电流监控，带可编程同步信号
  • 该系列采用可兼容的SPI软件驱动

购买选项

FRDM-24XSMBEVB-Image

点击展开

  • FRDM-24XSMBEVB
    正常供应

  • Freedom platform mother board for 24V extreme switches.

    • Freedom电路板
    • 功率输入/输出接头
    • 快速入门指南
  • $41.40 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
FRDM-50XSDBEVB-Image

点击展开

  • FRDM-50XSDBEVB
    正常供应

  • Freedom platform daughter board for 24V extreme switches 50mOhm.

  • $34.50 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
FRDM-22XSDBEVB-Image

点击展开

  • FRDM-22XSDBEVB
    正常供应

  • Freedom platform daughter board for 24V extreme switches 22mOhm.

  • $34.50 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
FRDM-20XSDBEVB-Image

点击展开

  • FRDM-20XSDBEVB
    正常供应

  • Freedom platform daughter board for 24V extreme switches 20mOhm.

  • $34.50 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
FRDM-10XSDBEVB-Image

点击展开

  • FRDM-10XSDBEVB
    正常供应

  • Freedom platform daughter board for 24V extreme switches 10mOhm.

  • $34.50 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
FRDM-06XSDBEVB-Image

点击展开

  • FRDM-06XSDBEVB
    正常供应

  • Freedom platform daughter board for 24V extreme switches 6mOhm.

  • $34.50 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
