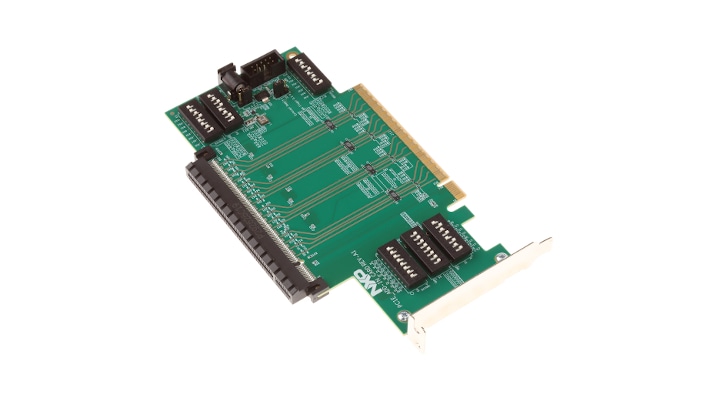

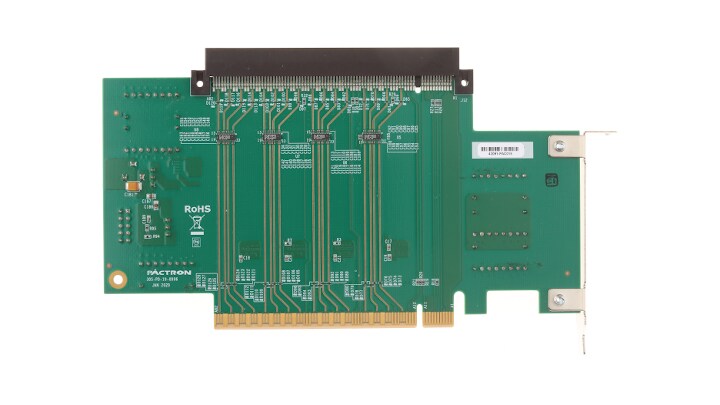

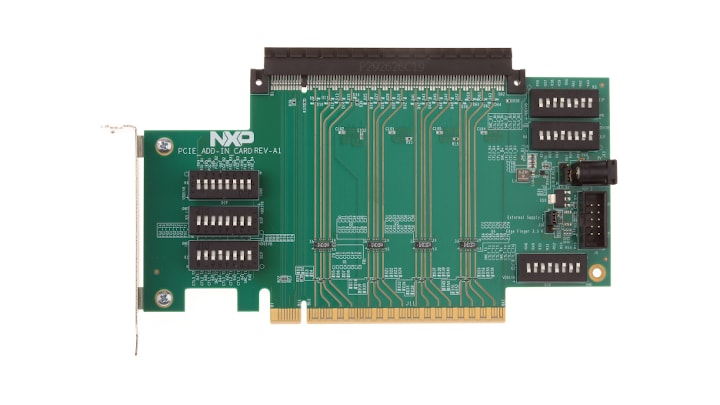

This PTN3944EVM evaluation board can be use to evaluate the PTN3944 to drive longer channel length from CPU chipset to the end point device, on either motherboard, or on the raiser card.

设计文件

软件

产品详情

Features

General Features

Support up to PCIe Gen 4 speed
Support up to PCIe x16 configuration
On-Board DIP switches to configure equalizer settings
Software GUI also available for configuring equalizer settings

购买选项

点击展开

PTN3944EVM-KIT
正常供应
PTN3944 Evaluation Board.
PTN3944EVM-KIT - DisplayPort linear redriver evaluation board

Kit Contains
- PTN3944EVM-KIT PCB hardware

$550.00 USD
数量为 1
- 供货情况: 现货
- 库存: 19
- 配送: 正常情况下 1-2个工作日内发货

加入购物车

从分销商处购买

发行人	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

文档

快速参考恩智浦文档类别.

2 文件

紧凑列表

PTN3944EVM linear equalizer application board - user manual[UM11596]

PDFJul 19, 2021版本更新 1.0

Getting Started with the PTN3944 Evaluation Board[GS-PTN3944EVM]快速入门

HTMLApr 19, 2023
