面向LPC1549的LPCXpresso™电路板

OM13056 正常供应

滚动图片以放大

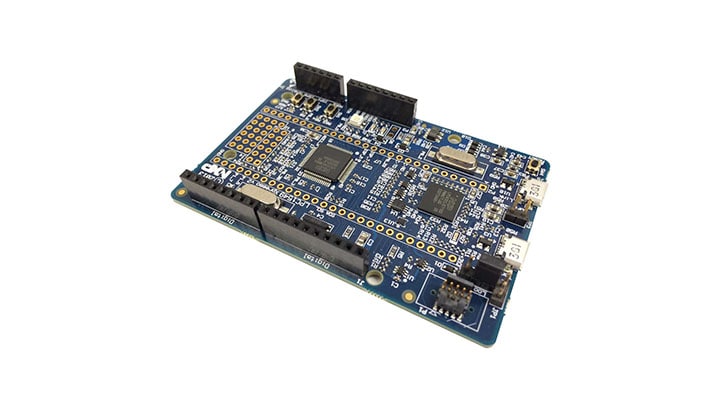

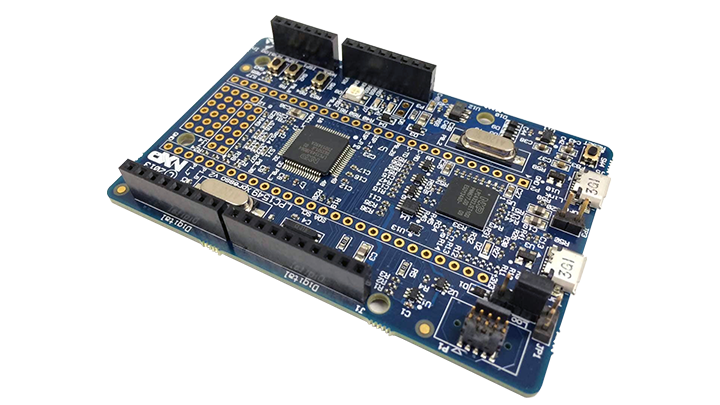

LPC1549 LPCXpresso™电路板搭载恩智浦LPC1549 Cortex-M3微控制器，旨在帮助您轻松启动设计。

LPCXpresso™是由恩智浦提供的一款低成本开发平台，支持恩智浦基于Arm的微控制器。该平台包括一个基于Eclipse的简化IDE和附带JTAG调试器的低成本目标板。LPCXpresso是一个端到端解决方案，支持嵌入式工程师开发从初始评估到最终生产的所有应用程序。

该电路板的订购代码为OM13056UL。

LPC1500市场类别页面

产品详情

支持的器件

处理器和微控制器

LPC1500 Cortex-M3

  • LPC1517JBD48: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1517JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1518JBD100: 基于ARM® Cortex®-M3的运动控制32位微控制器
  • LPC1518JBD64: 基于ARM® Cortex®-M3的运动控制32位微控制器
  • LPC1519JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1519JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1547JBD48: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1547JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1548JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1548JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1549JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1549JBD48: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1549JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3

特征

支持

  • 由LPCXpresso Eclipse-based IDE和GNU C/C++工具链提供完全支持，包括免费和专业版本

调试

  • Integrated JTAG Debugger that can also be used to debug an external target

扩展端口

  • LPCXpresso / mbed、PMOD和Arduino® UNO扩展接头可轻松访问广泛的扩展板

组件

  • 三色LED，ISP & WAKE按钮可轻松测试软件功能

购买选项

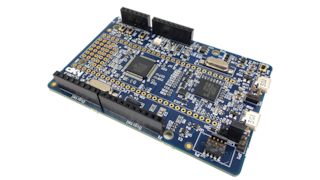

OM13056-Image

点击展开

  • OM13056
    正常供应

  • LPCXpresso board for LPC1549 (Link2).

    • LPC1549 LPCXpresso™开发板
  • 数量为 1
从分销商处购买
