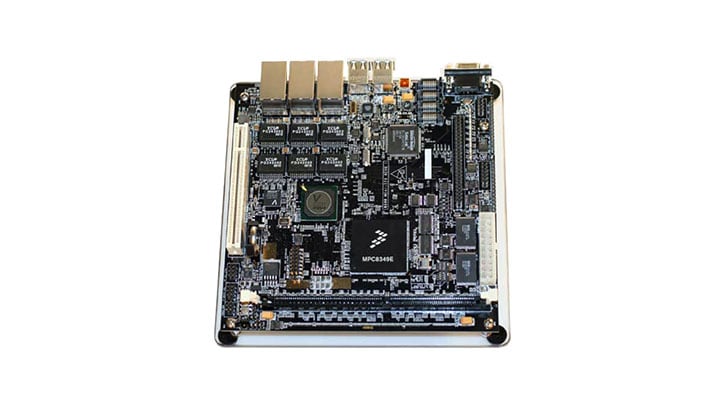

MPC8349E-mITXE Reference Platform

MPC8349EMITXE

滚动图片以放大

The MPC8349E-mITXE reference platform demonstrates the capabilities of the NXP® Power Architecture MPC8349E processor. Ideal for hardware and software development, the high level of integration in the MPC8349E helps lower system costs, improves performance and simplifies board design.

Many third-party applications are available for the MPC8349E-mITXE. They are typically built on top of the BSP delivered by NXP and they can be installed on the hard disk. To run a demonstration or to acquire details of third-party applications for this platform, please contact your local NXP sales office.

产品详情

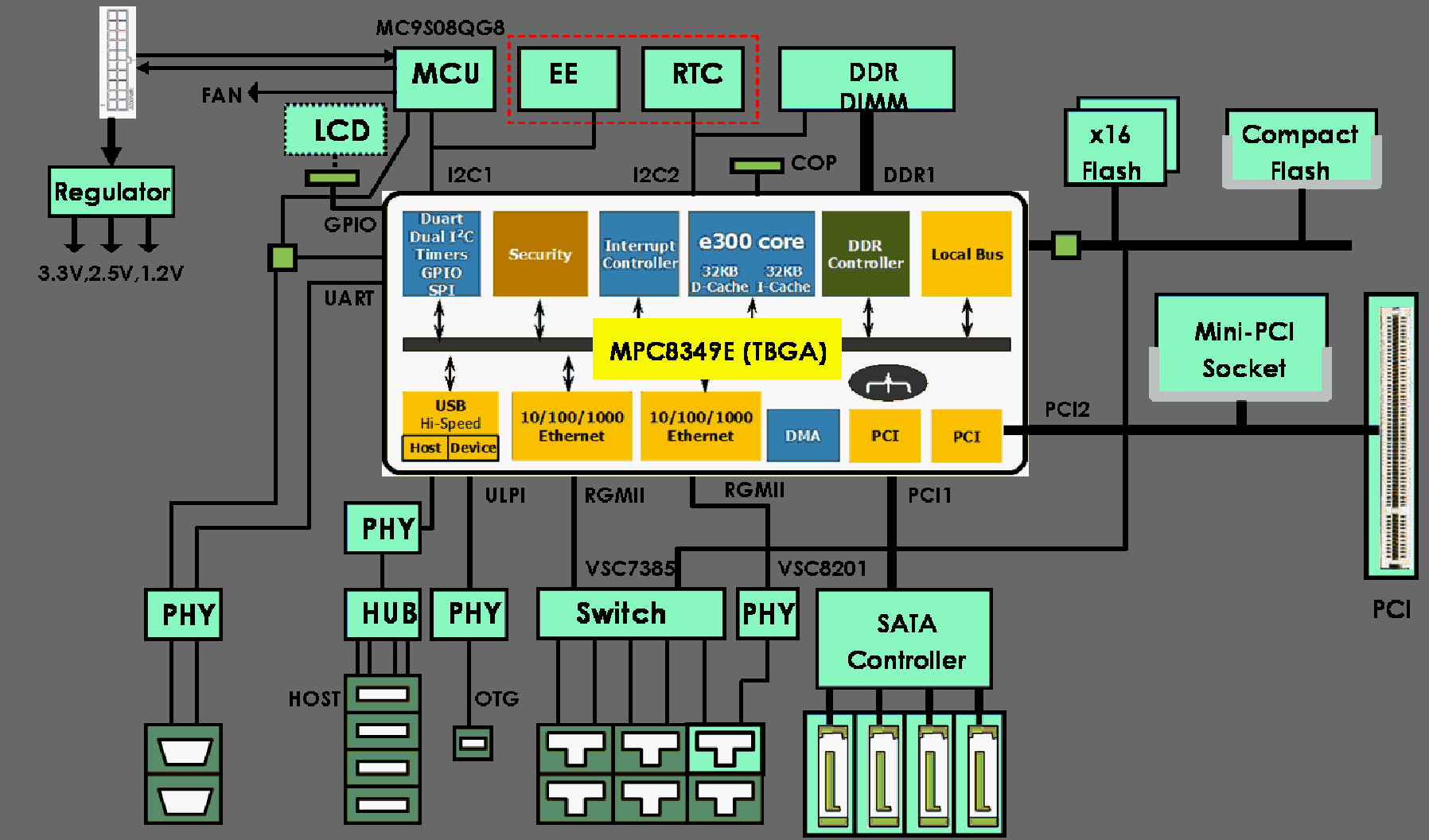

特征

Microcontroller

  • NXP® MPC8349E running at 533/266 MHz (CPU/CSB (Coherent System Bus))

Memory

  • 256 MByte unbuffered DIMM SDRAM that is expandable to 1 Gbyte
  • 16 MByte Flash memory (two Macronix™ MX29LV640M Flash memory banks)
  • Type I Compact Flash connector to interface with the compact Flash storage card in true IDE mode (3.3 mm thick)

Interfces

  • 10/100/1000 BaseT Ethernet ports:
    • TSEC1, GMII interface: one 10/100/1000 BaseT RJ-45 with RJ-45 interface using Vitesse™ VSC8201 single port 10/100/1000
    • BaseT PHY TSEC 2, GMII interface: five 10/100/1000 BaseT RJ-45 with Vitesse VSC7385 SparX-G5™ 5 + 1 port Gigabit Ethernet integrated PHY switch
  • USB 2.0 OTG and hub:
    • USB1, ULPI interface: four USB2.0 type A receptacle connectors, with Genesys Logic™ GL850A 4-PORT USB 2.0 hub controller
    • USB2, ULPI interface: one USB2.0 type mini-AB receptacle connector, with SMSC™ USB3300 Hi-Speed USB host/device/OTG PHY
  • Serial ATA controller:
    • Silicon Image™ SiI3114 PCI to Serial ATA controller that connects to a 66 MHz PCI-1 Supports four independent Serial ATA channels
    • One 32-bit 3.3 V PCI slot connected to PCI-2
    • One 32-bit 3.3 V miniPCI slot connected to PCI-2
  • Atmel™ AT24C08 Serial EEPROM
  • Dallas™ DS1339 RTC with battery holder
  • NXP MC9S08QG8 MCU for fan control and soft start

Connectors

  • LCD interface using GPIO
  • ATX power supply connector
  • RS-232C connectors
    • 9-pin DB9 receptacle
    • 10- pin 2.54 mm connector

Debug

  • JTAG/COP for debugging
  • 6-layer PCB routing (4-layer signals, 2-layer power and ground)
