MCF5249 Evaluation Board

M5249C3 存档
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

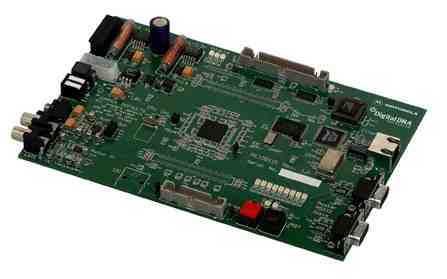

The M5249C3 evaluation board provides an excellent vehicle for embarking on a high-performance embedded design. With 8 MBytes of SDRAM, 2 MBytes of Flash, 10/100 BaseT ethernet connectivity, two serial ports, and access to ColdFire® debug module. This complete package includes all the components for realizing an MCF5249 design quickly and easily.

产品详情

支持的器件

处理器和微控制器

ColdFire® V2处理器

  • MCF524X: 集成式ColdFire® V2微处理器

Features

Microcontroller

  • MCF5249 running at 140 MHz, internal bus speed of 70 MHz

Connectivity

  • On-board 10/100 Base-T ethernet connectivity via RJ-45 connector
  • 4 channel DMA
  • Dual programmable UARTs (universal asynchronous/synchronous receiver/transmitter) - 1 available for customer use

Power Management

  • Power Requirements are +7 to +14 Volts DC regulated or unregulated (on board regulation to +5V, +3.3V, and +1.8V DC)

Debug

  • Monitor/Debugger programmed on 2 MB of Flash with 1.8 MB available for customer use
  • Debug module interface connector (used with source level debuggers running on PCs)

Size

  • Small form factor

Expansion Port

  • All CPU signals available for user accessibility via two 120-pin expansion connectors

Components

  • Serial cable (give access to ROM monitor that includes in-line assembler)
